I-joist rafters with 2x6 tails - auto rebuild, how do I do it?

[Hoff_Design]

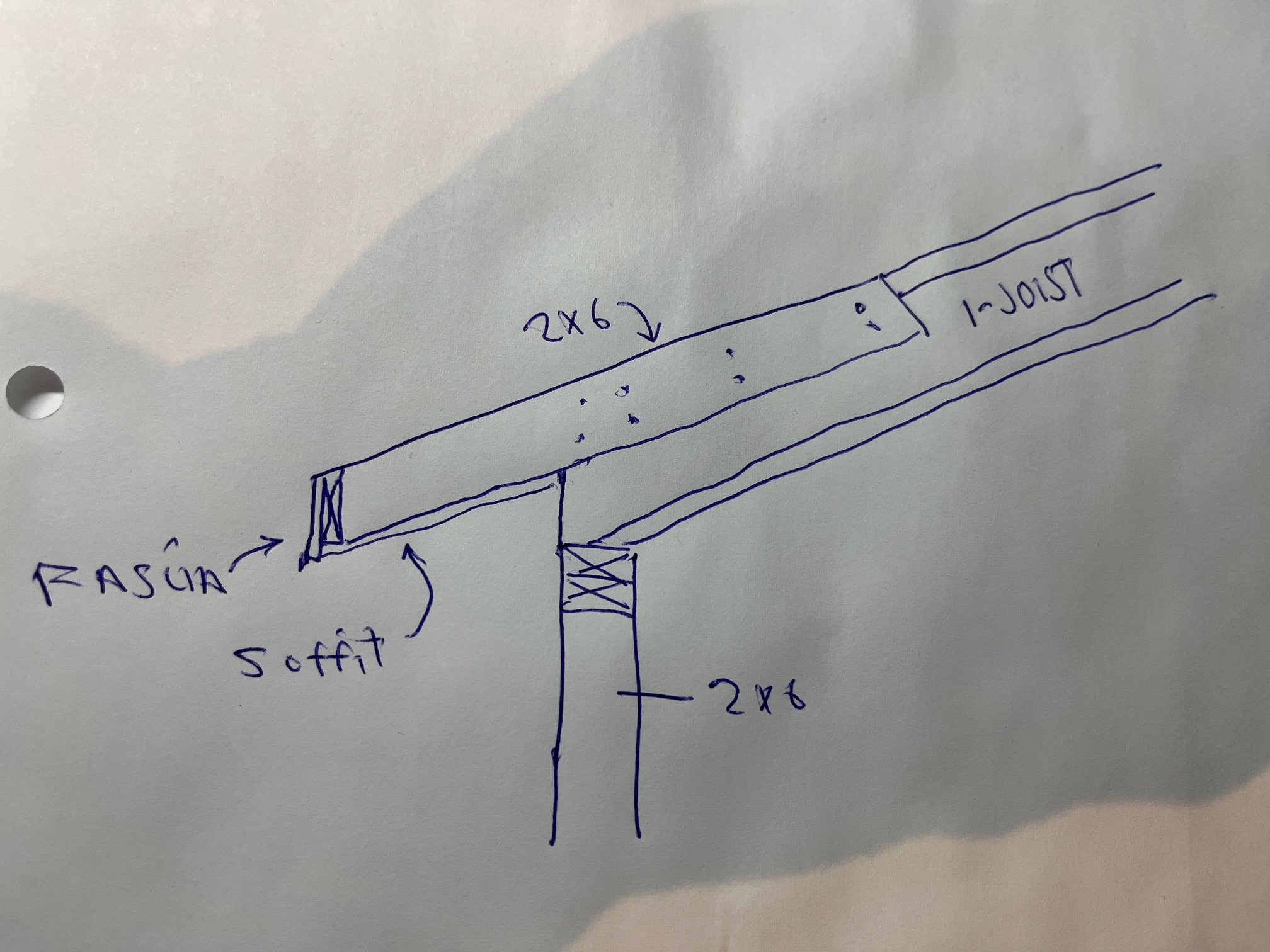

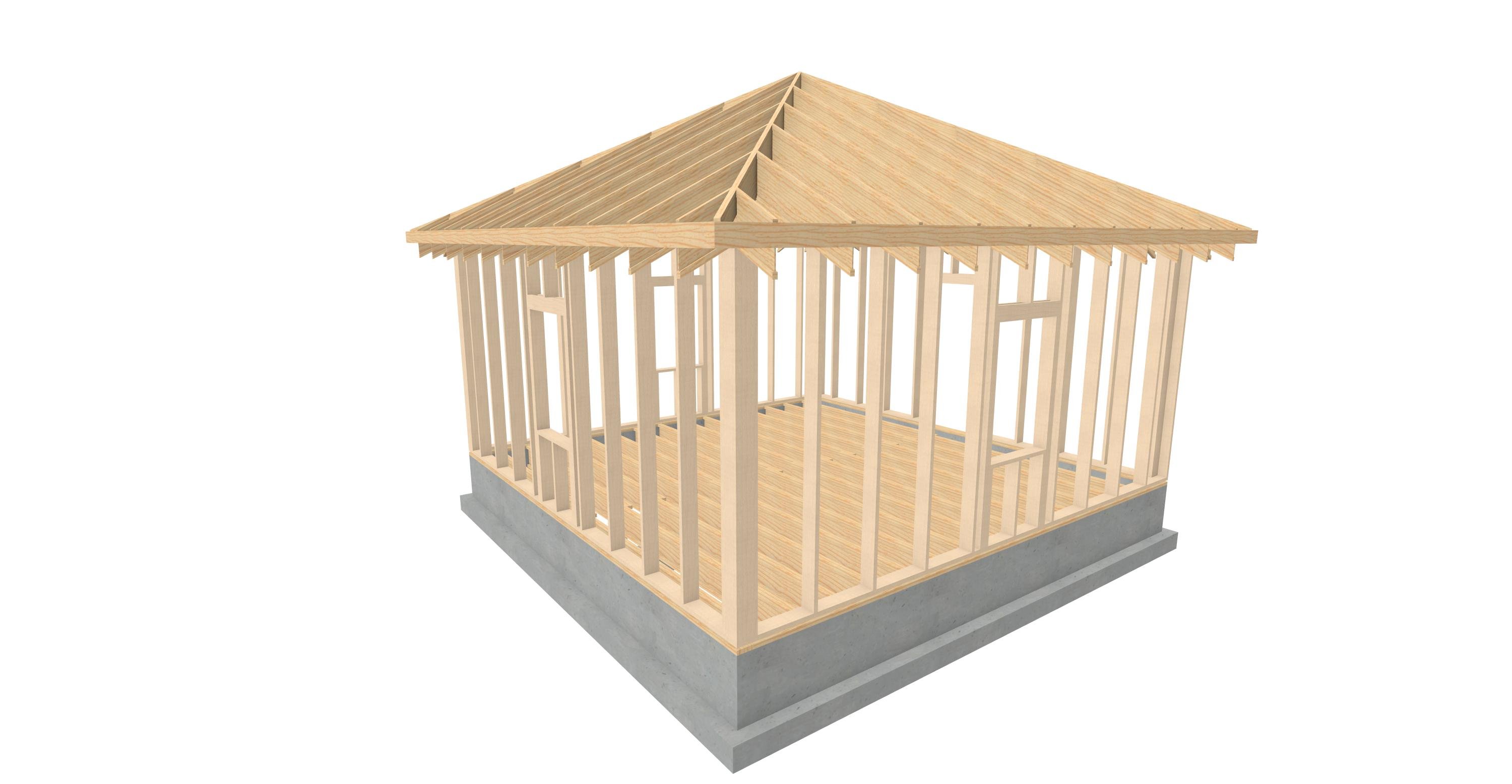

How do I produce an overhang like the hand drawing instead of the rendered model where the roof is an I-joist and the overhang is 2x6 DF?

[para-CAD]

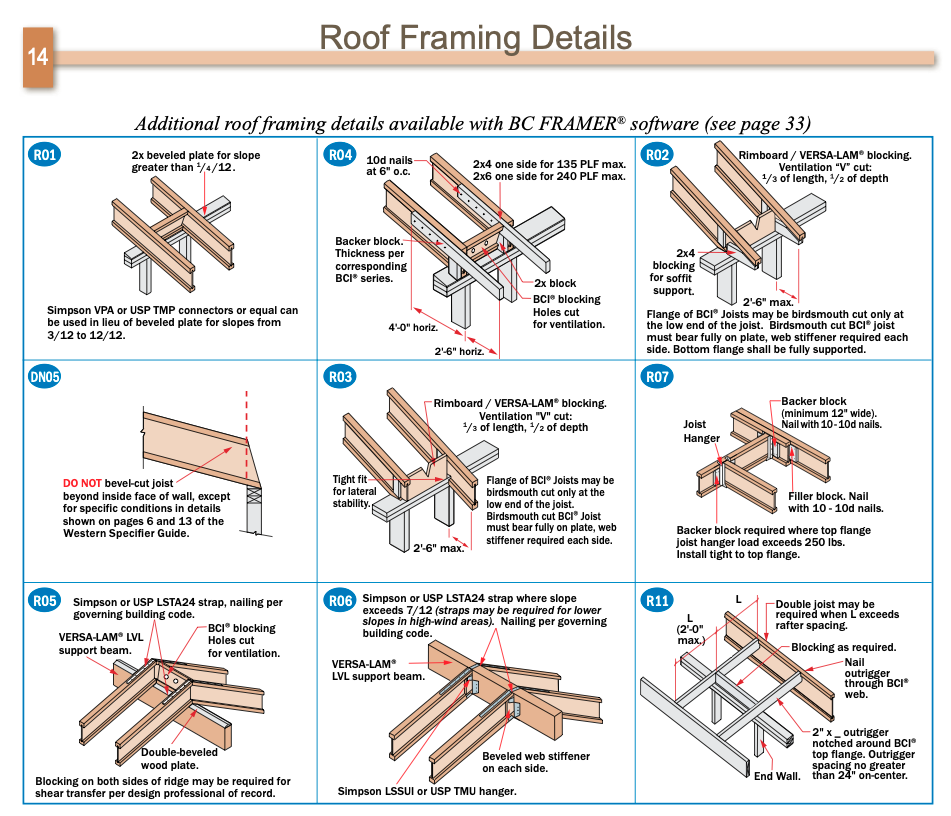

https://www.bc.com/wp-content/uploads/2018/09/W-spec-guide-BCI-and-VL.pdf



RO4?

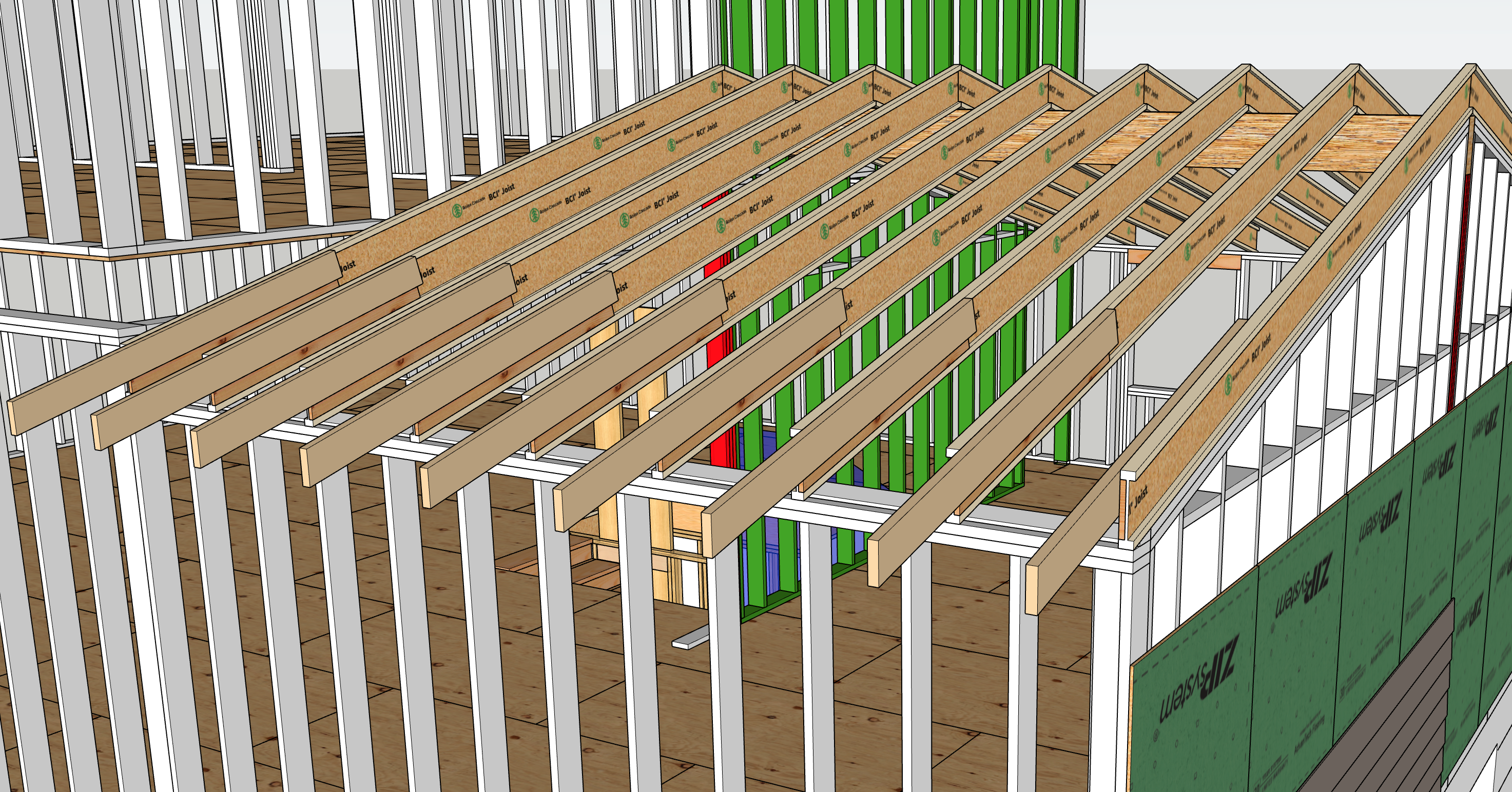

I haven't 3D modeled that in chief, for plans for permit.

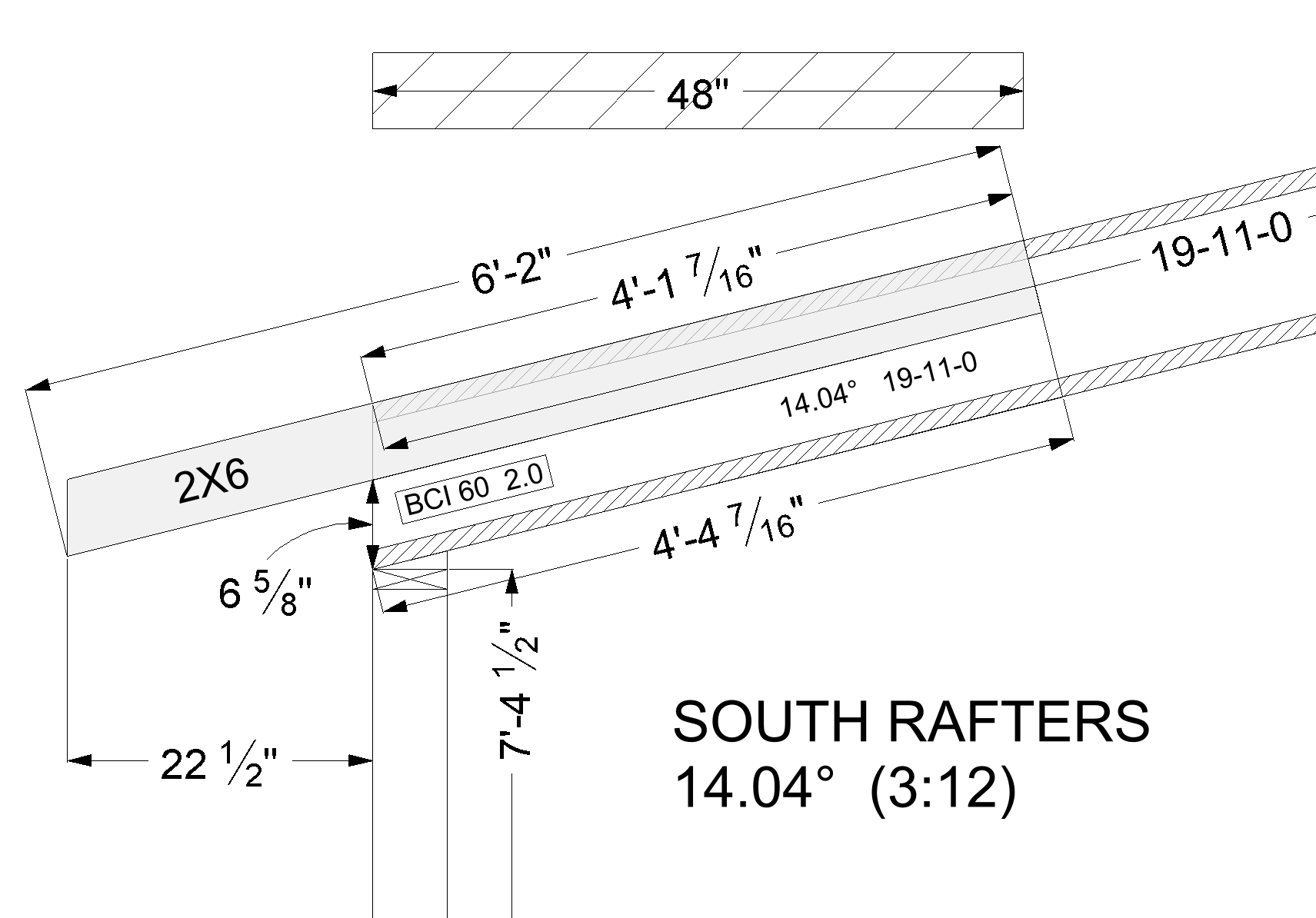

I make cut sheets for me and details for the plans inspectors.





Edited 8 hours ago by para-CAD

[joey_martin]

You're not going to get Chief to create that detail. A workaround would be a second roof plane for the overhangs. Model it close and detail the rest out.

[PitMan71]

You can create the look just by changing your roof structure to the thickness of the I joist. Leave the "Rafter Construction" as a rafter. Keep the subfacia at  5 1/2. Also, under options uncheck boxed eave. As others have said you will just need to provide a detail showing the actual components.

[ValleyGuy]

4 hours ago, Hoff_Design said:

How do I produce an overhang like the hand drawing instead of the rendered model where the roof is an I-joist and the overhang is 2x6 DF?

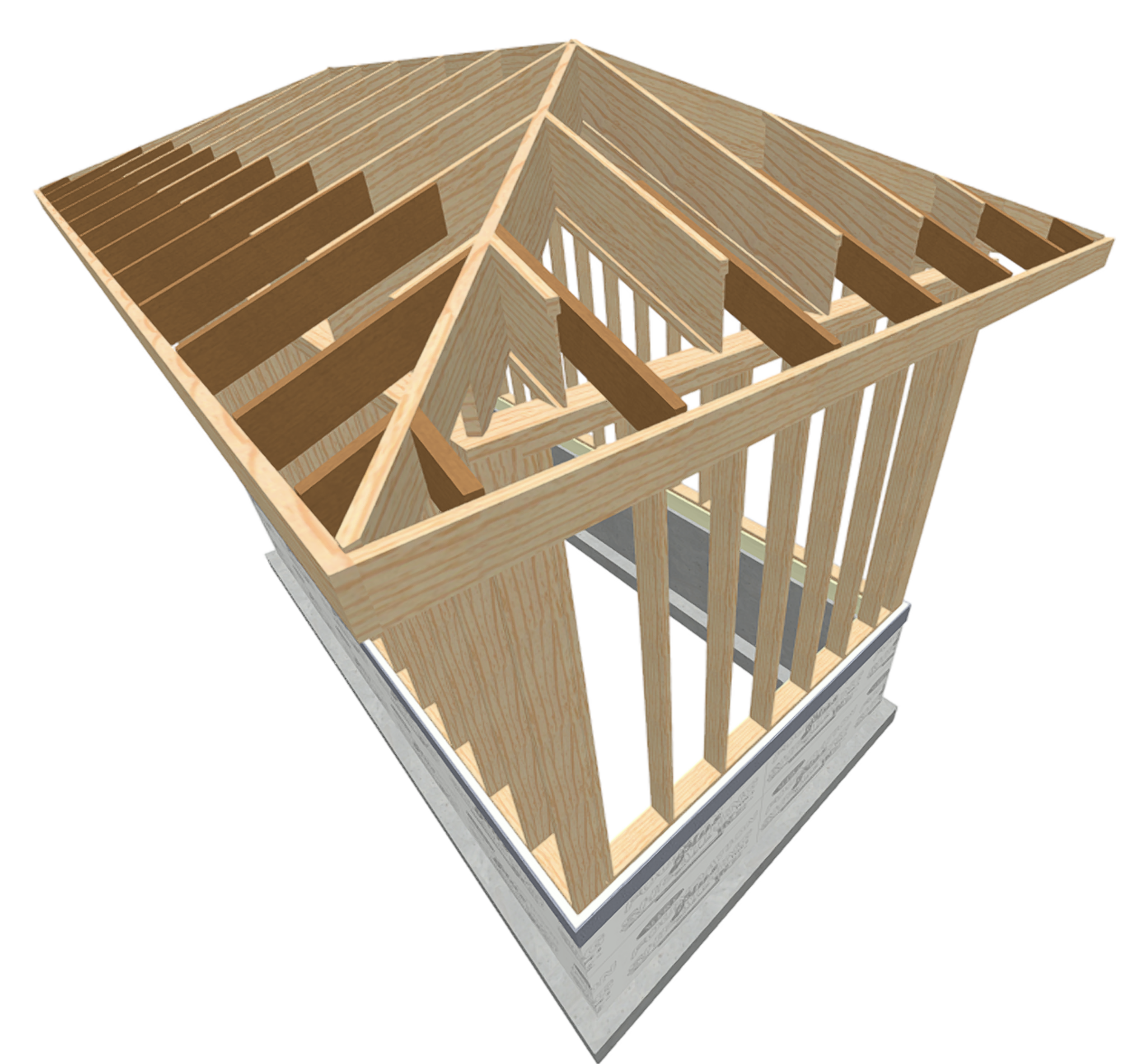

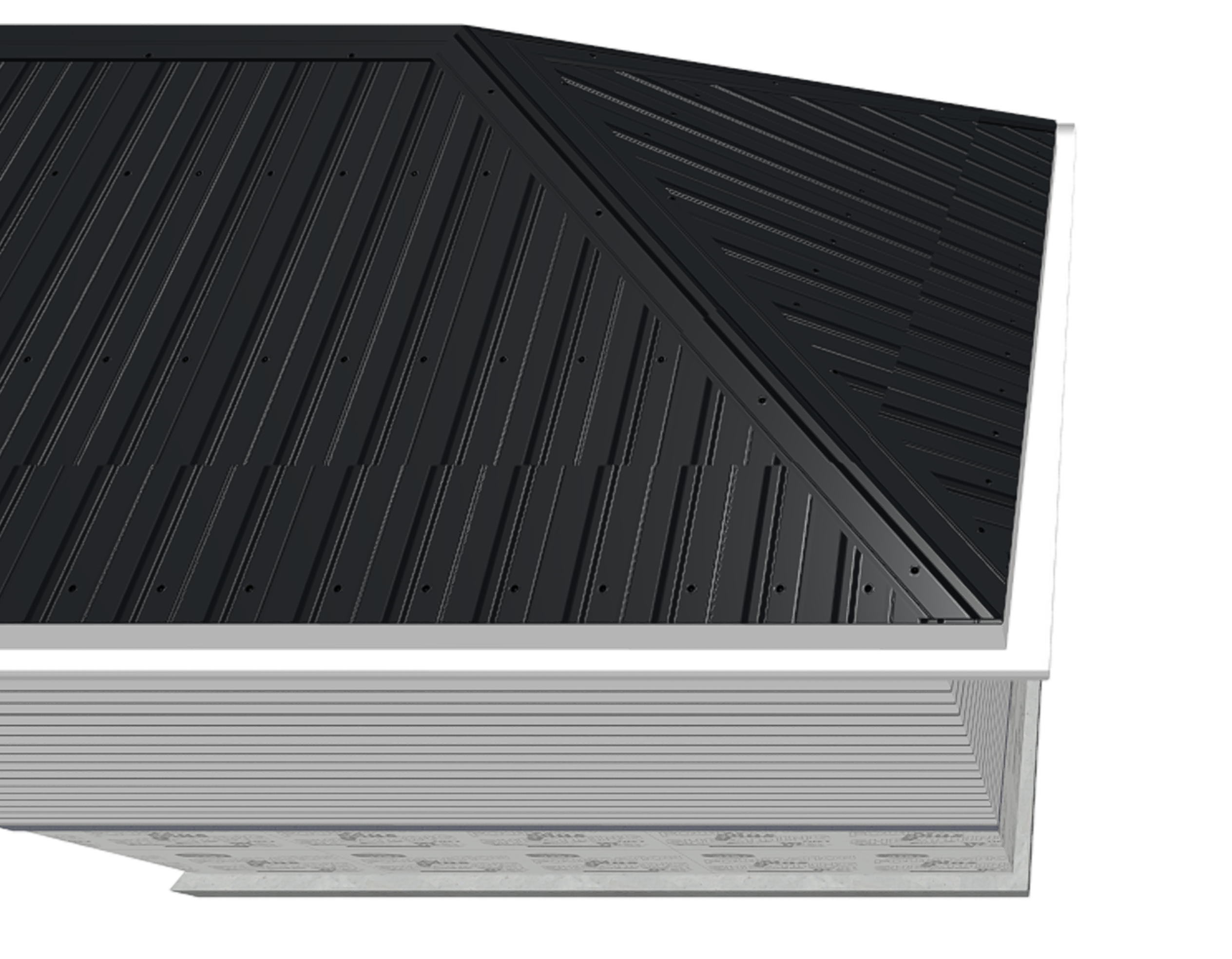

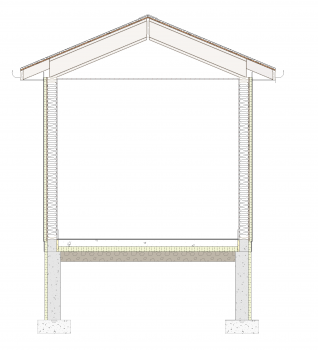

Just like @joey_martinsaid, it is possible. When using the double roof planes you may want to double the roof material and adjust it on the smaller roof plane to match better on the larger roof plane. It does section out nicely.
