Medeek Engineering

[Medeek]

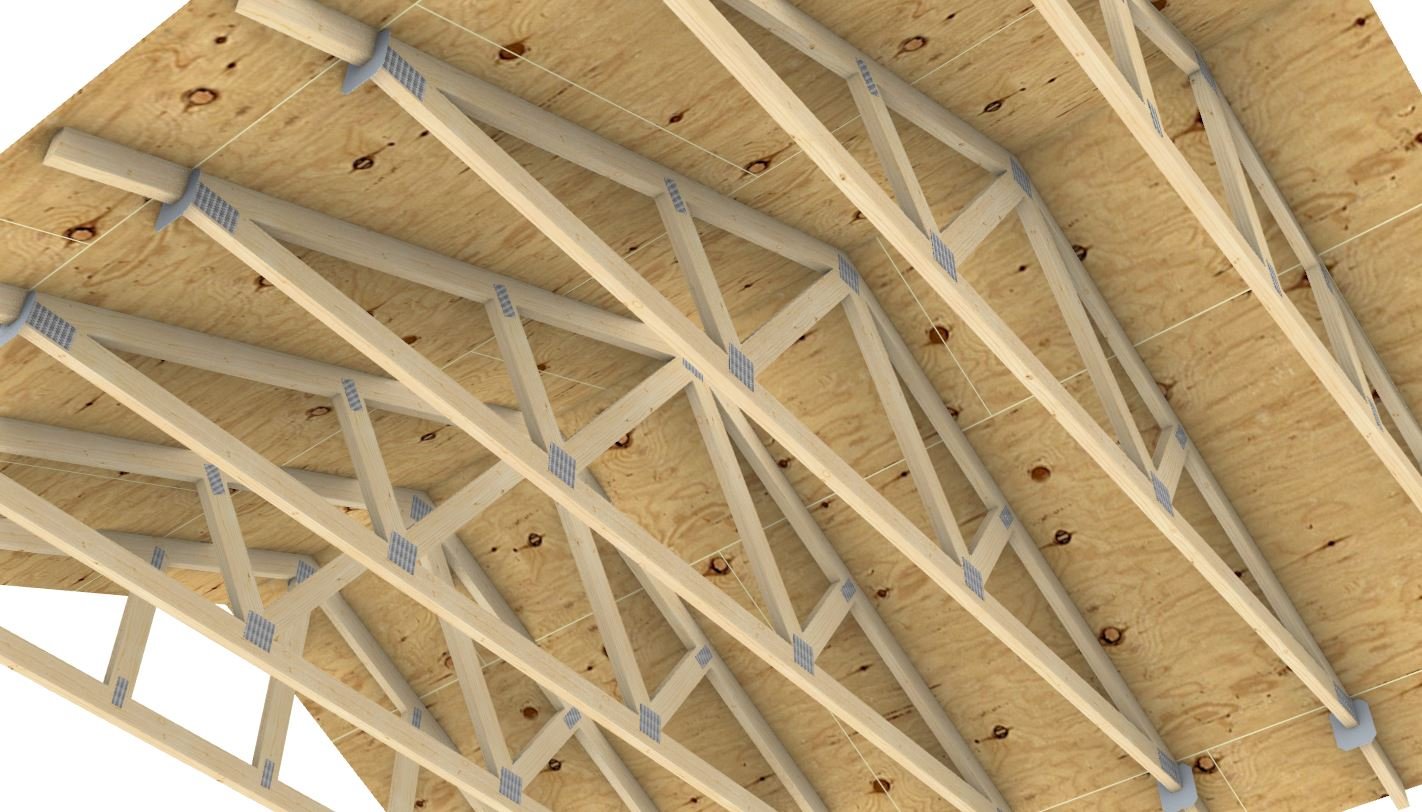

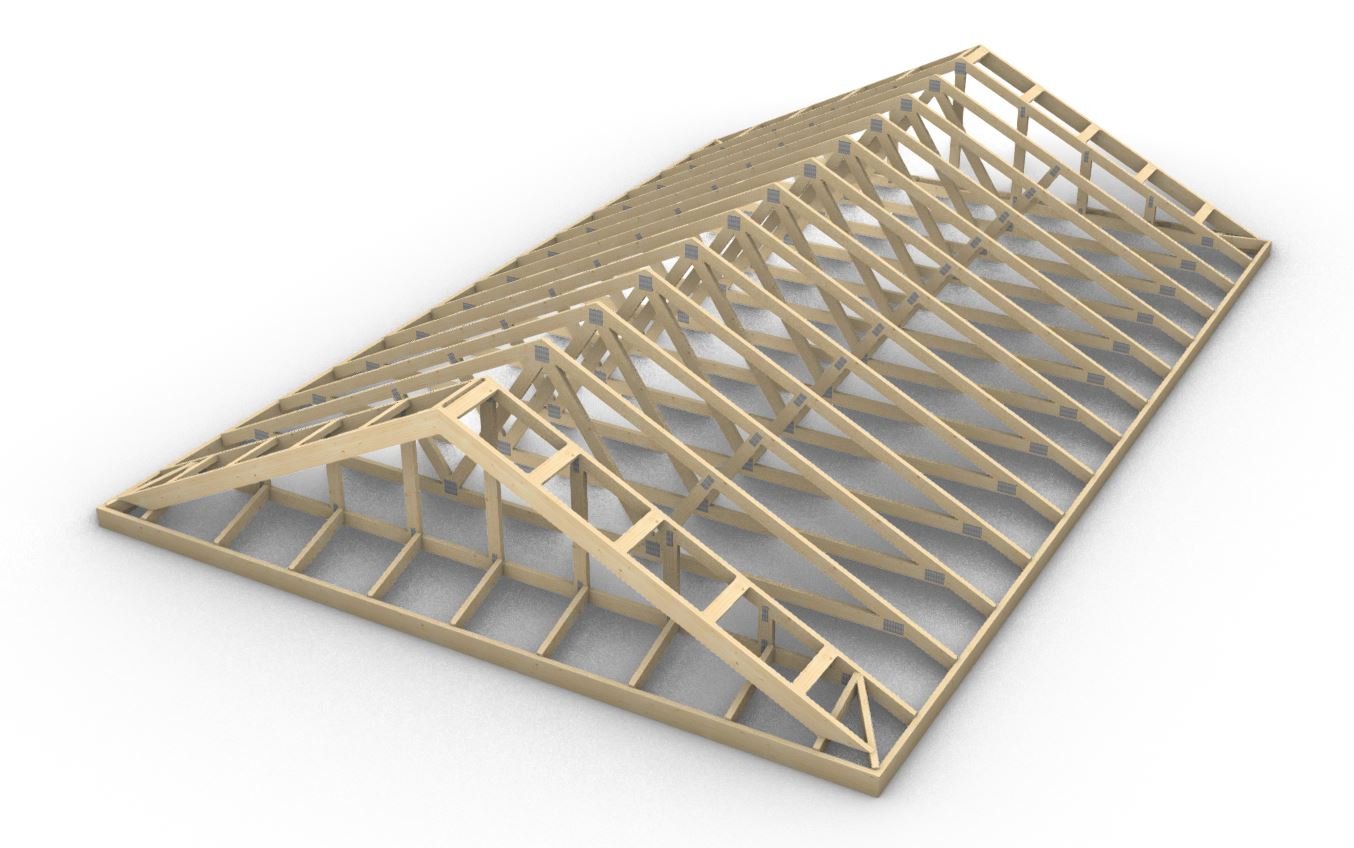

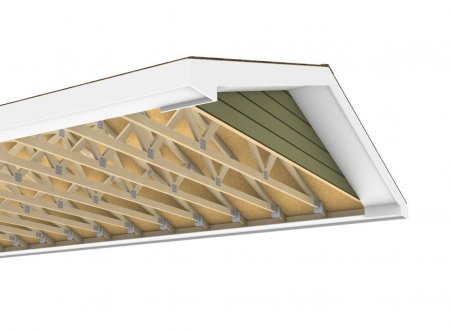

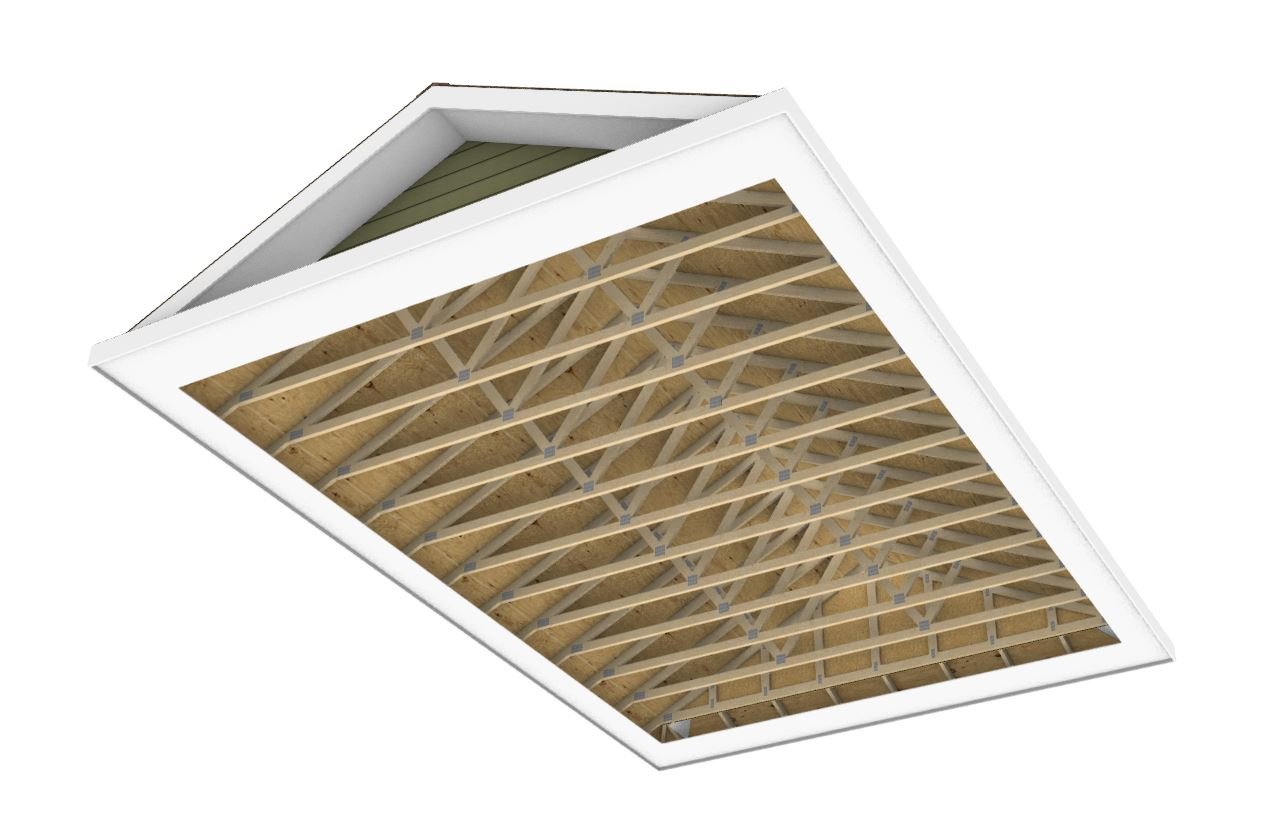

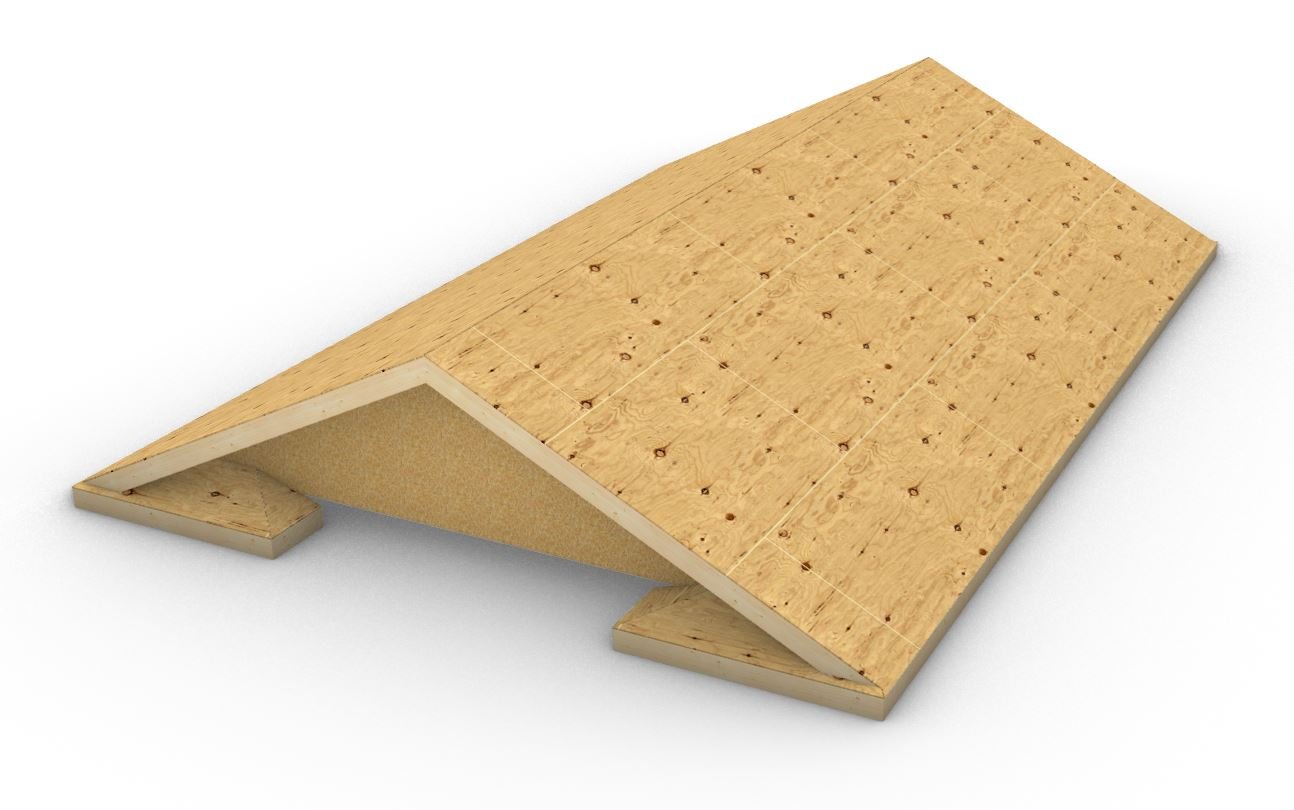

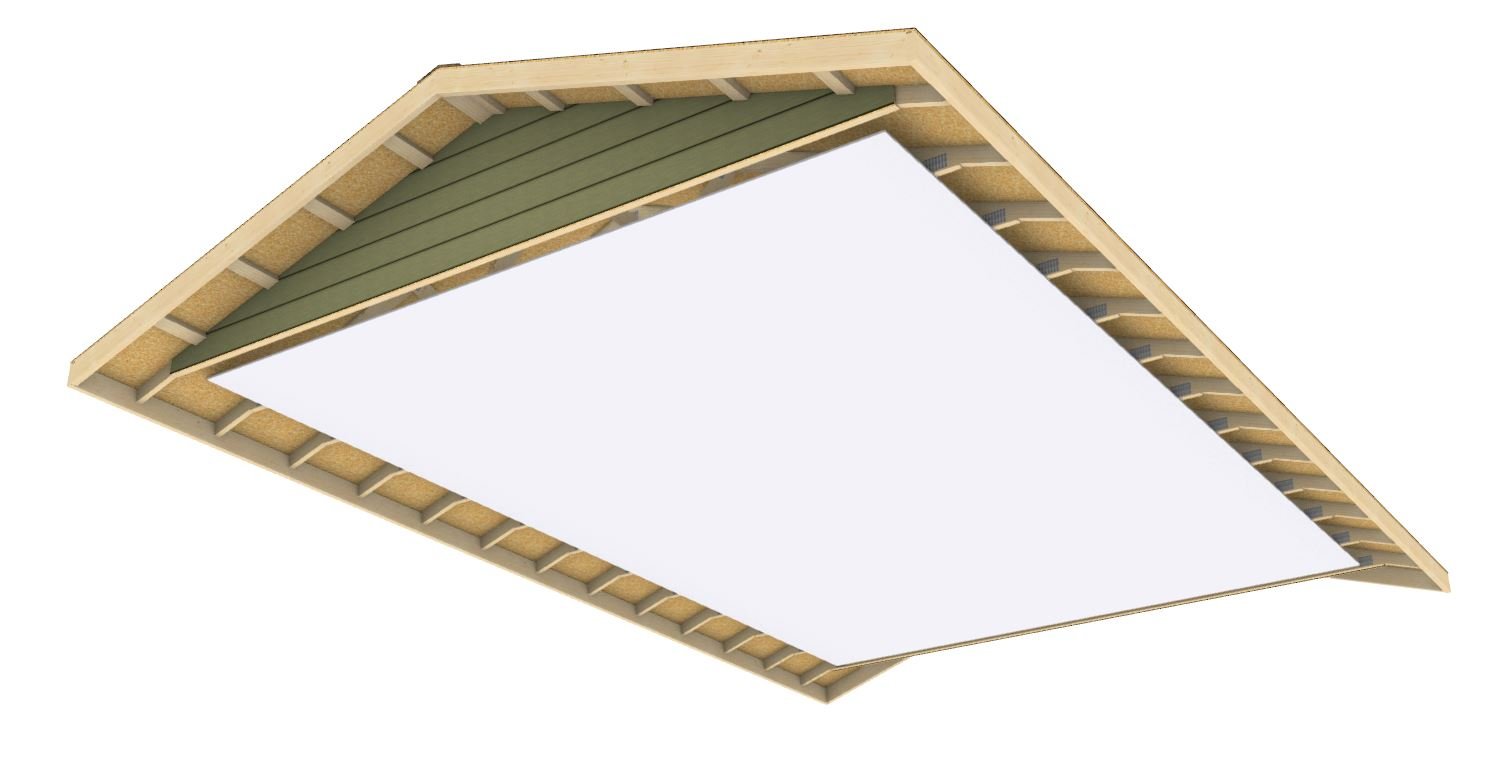

First look at sheathing, sub-fascia, outlookers and rake boards in Rhino 8:







Its a shame I can't port my extensions into Chief, that would be pretty cool if I could.





[Medeek]

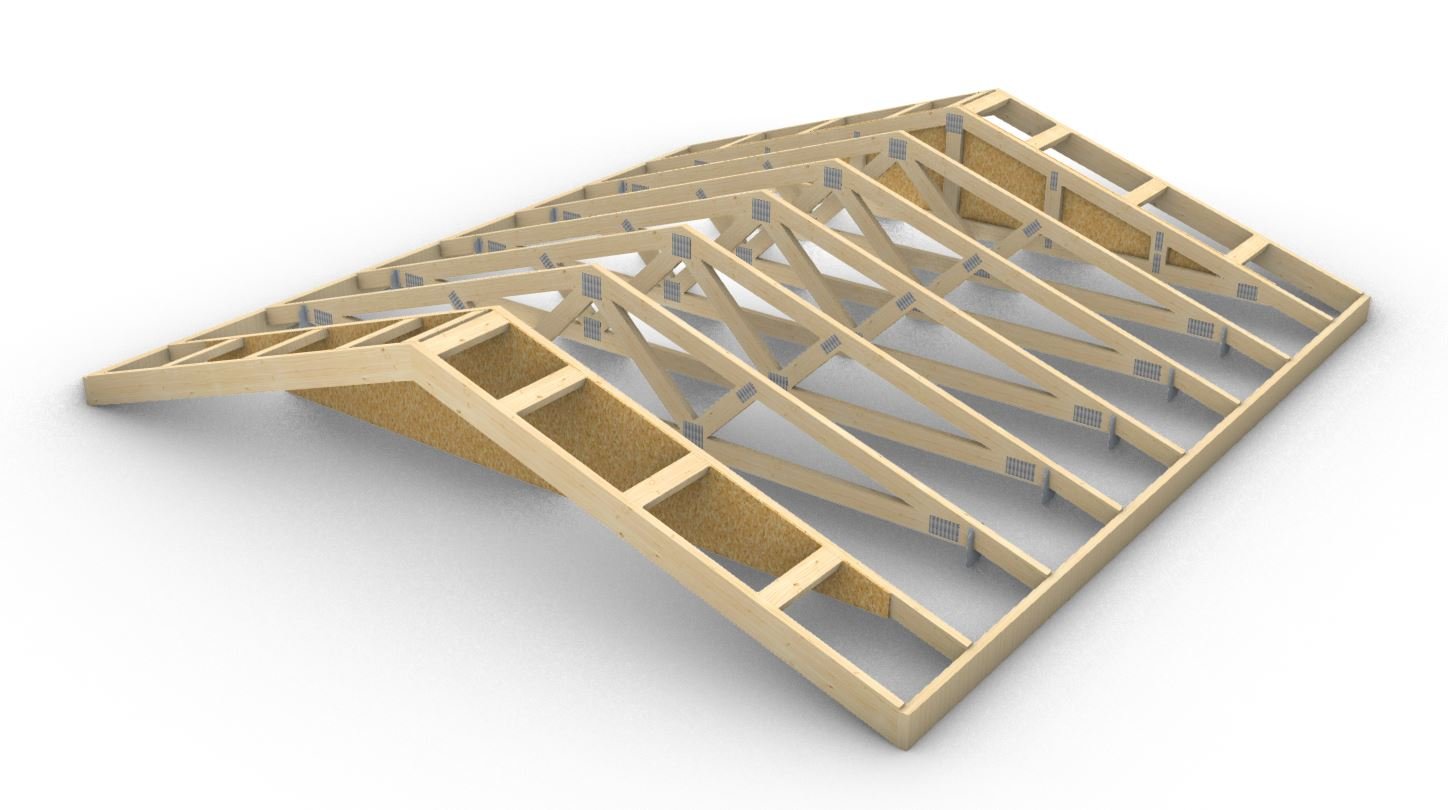

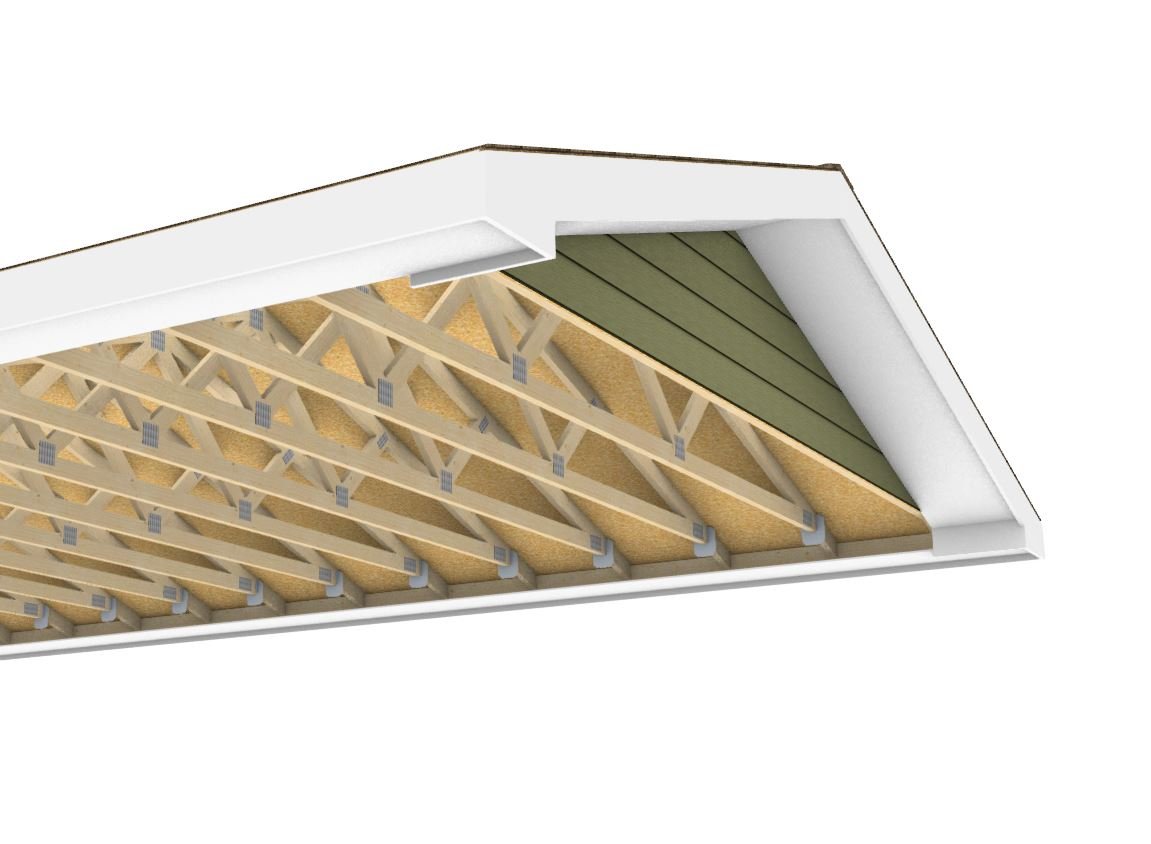

He is a first look at gable wall cladding in Rhino:



truss_RH691507×826 128 KB



The Rhino port is slowly coming together. The goal is to get all of the advanced options enabled for common trusses, then add in the rest of the common truss configurations. At that point I will probably release the initial 0.9.5 Version (Windows only). Then, based on the traction I receive in the Rhino community, I will continue to port the rest of the extension over from SketchUp.

[Medeek]

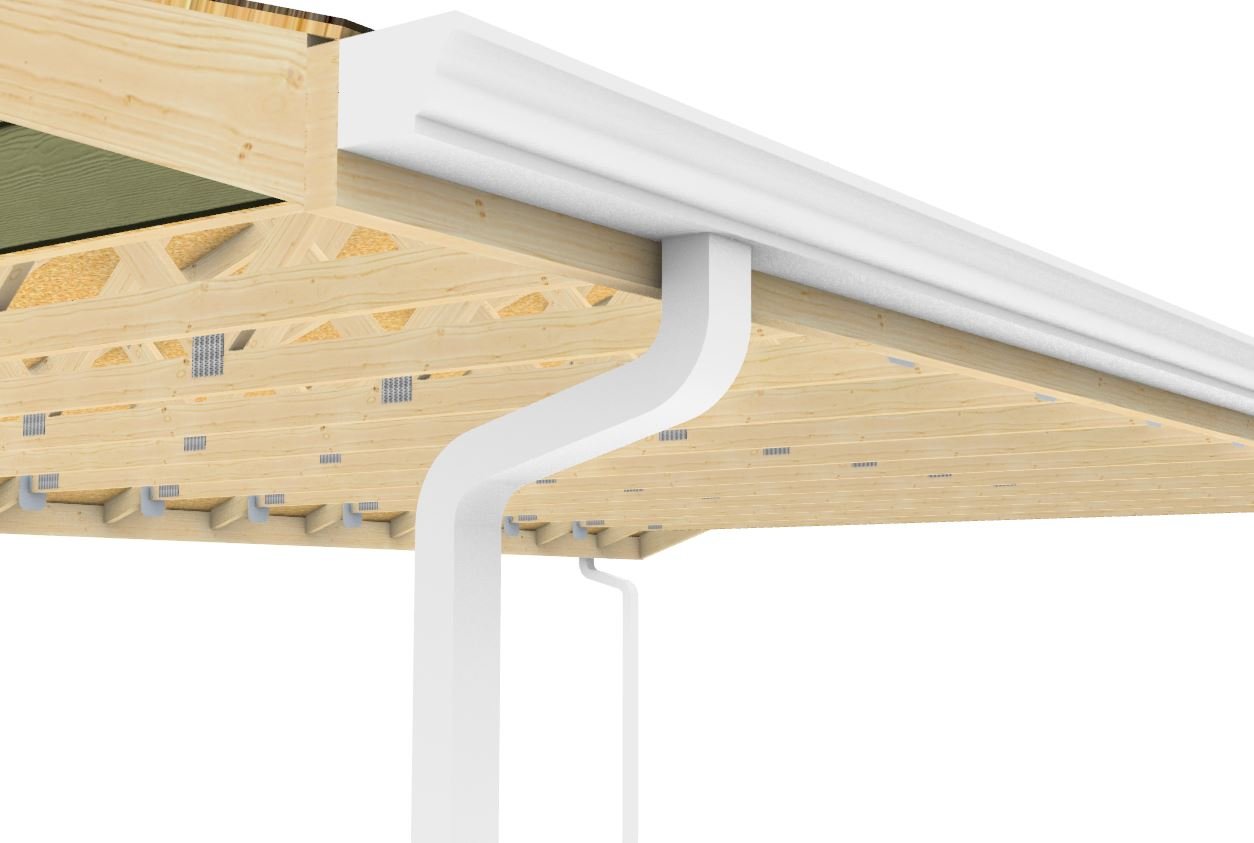

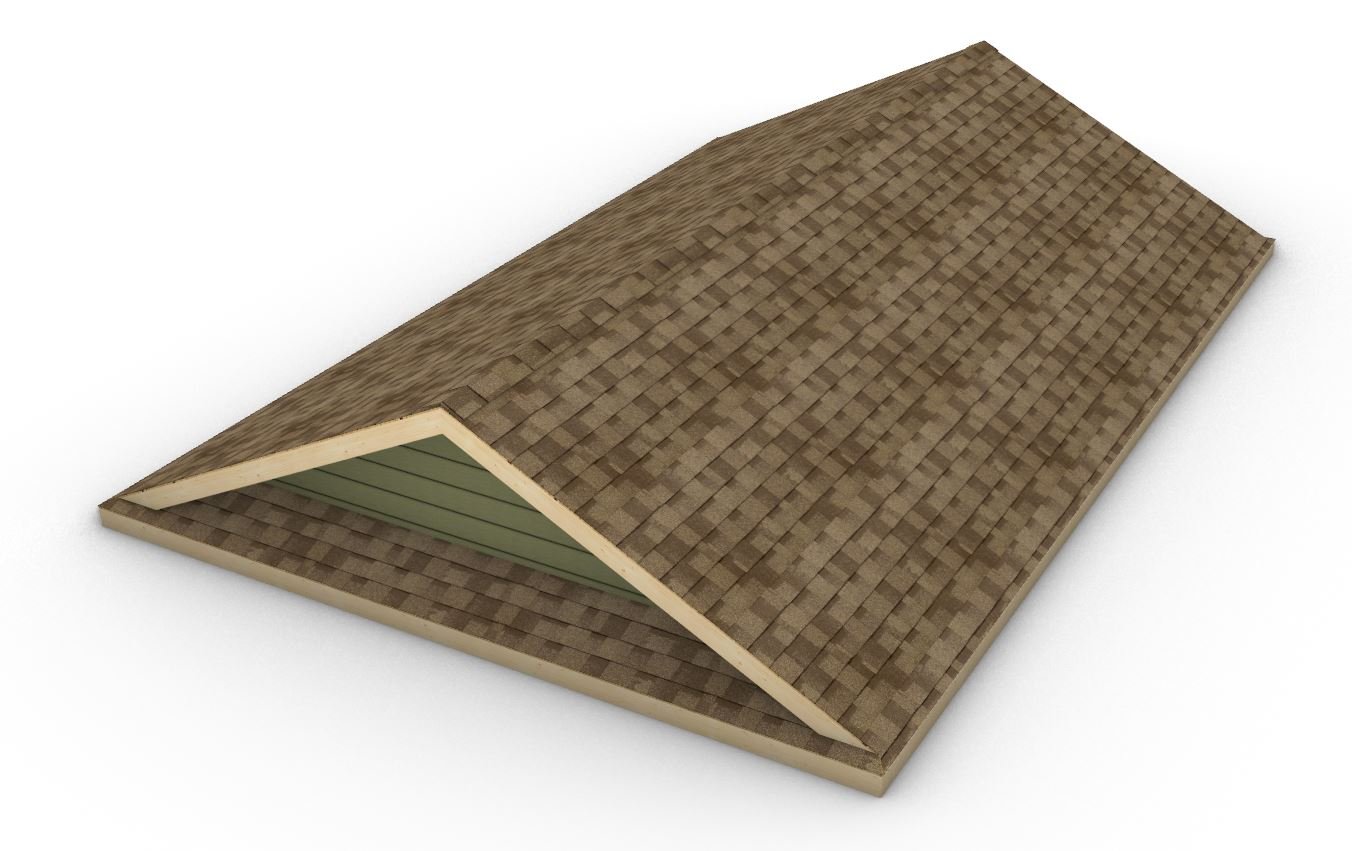

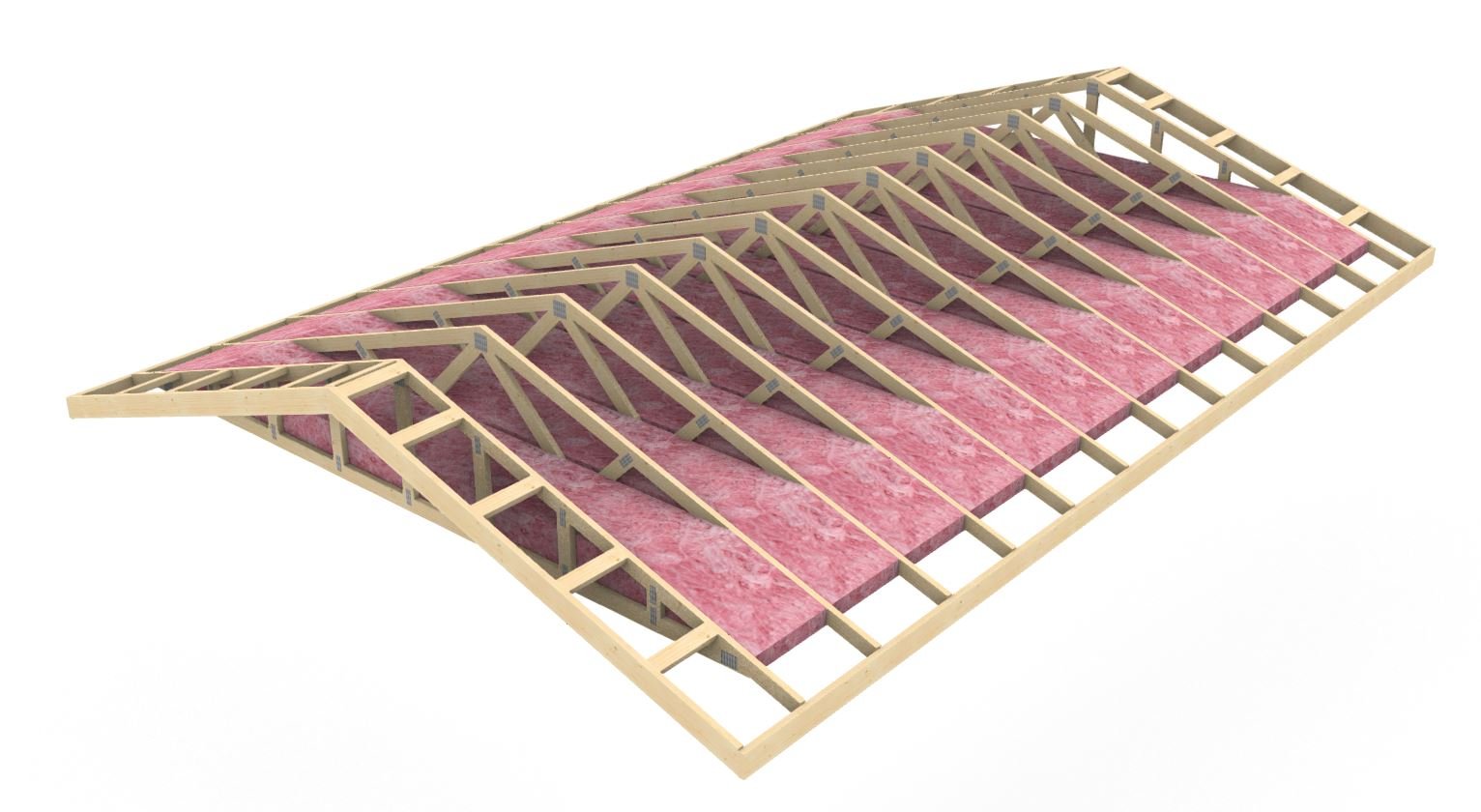

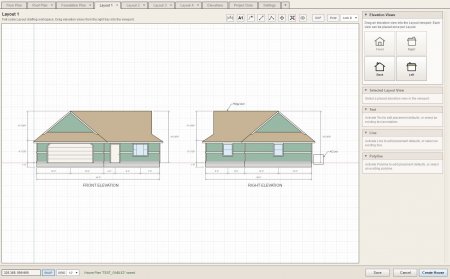

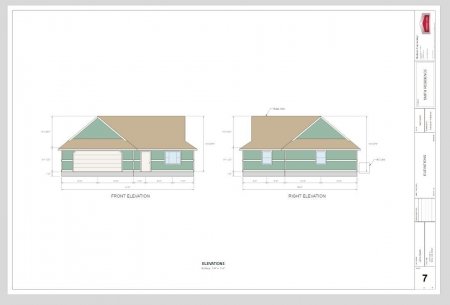

A few more screenshots of the Rhino 8 development:









[Medeek]

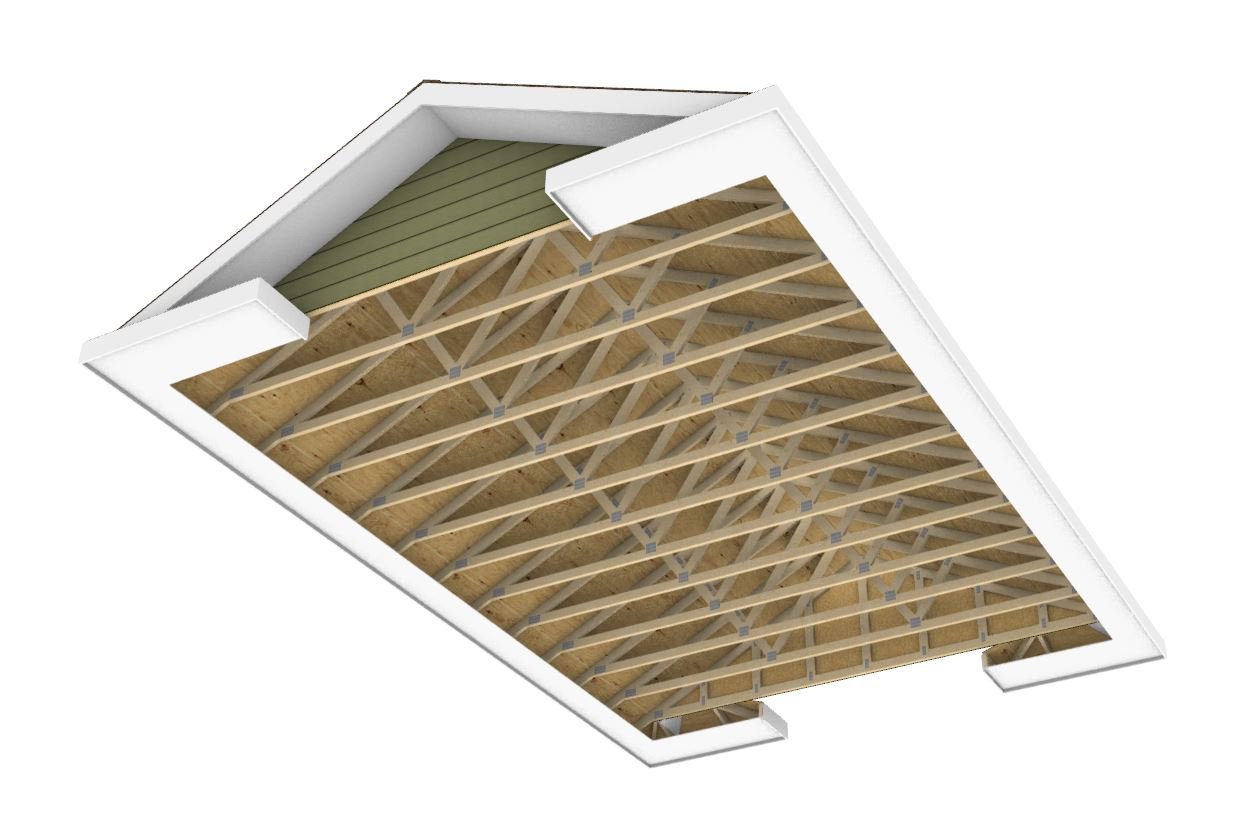

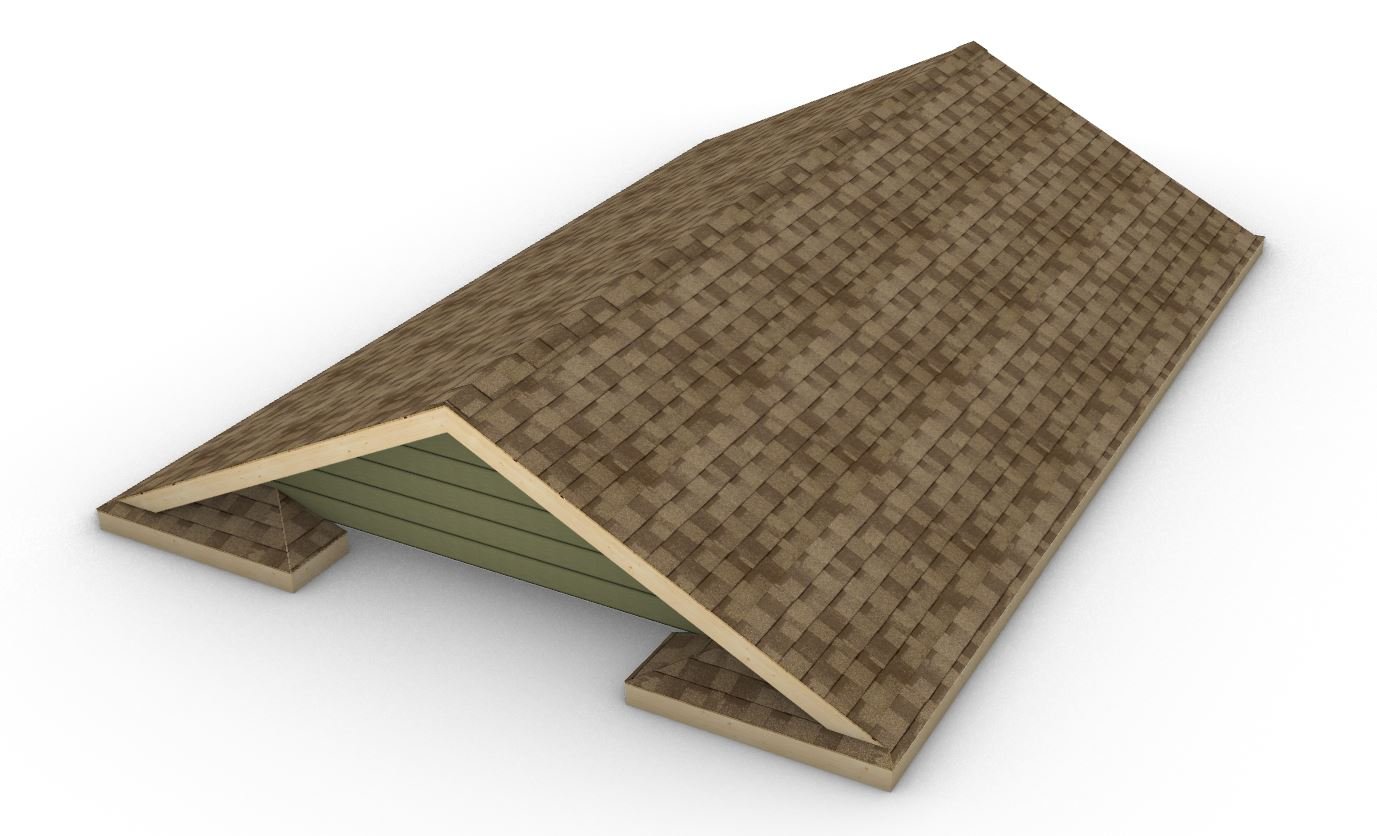

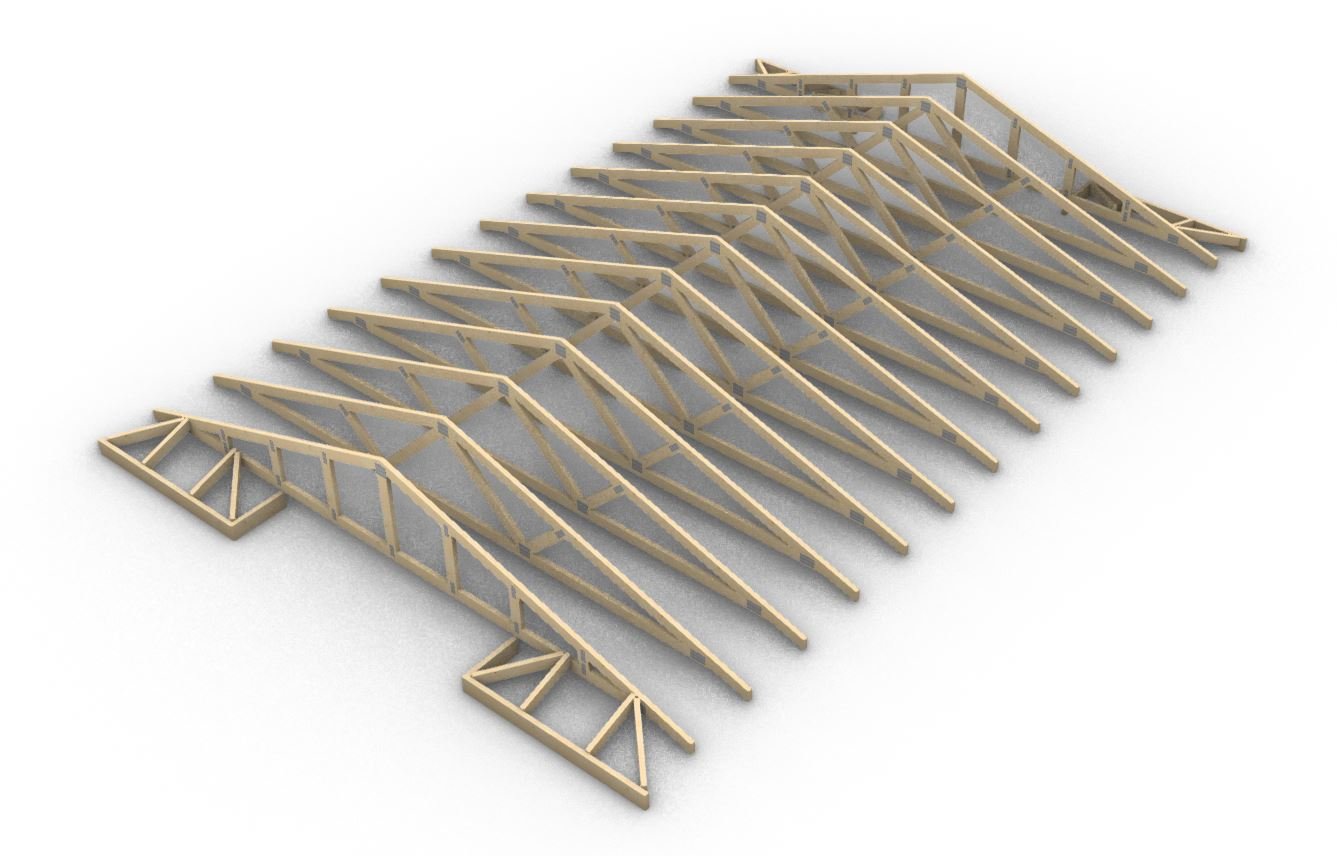

First look at some roof returns in Rhino:
