How do I simply create these corbel extensions and not have the large Eave Fascia?

[John_B]

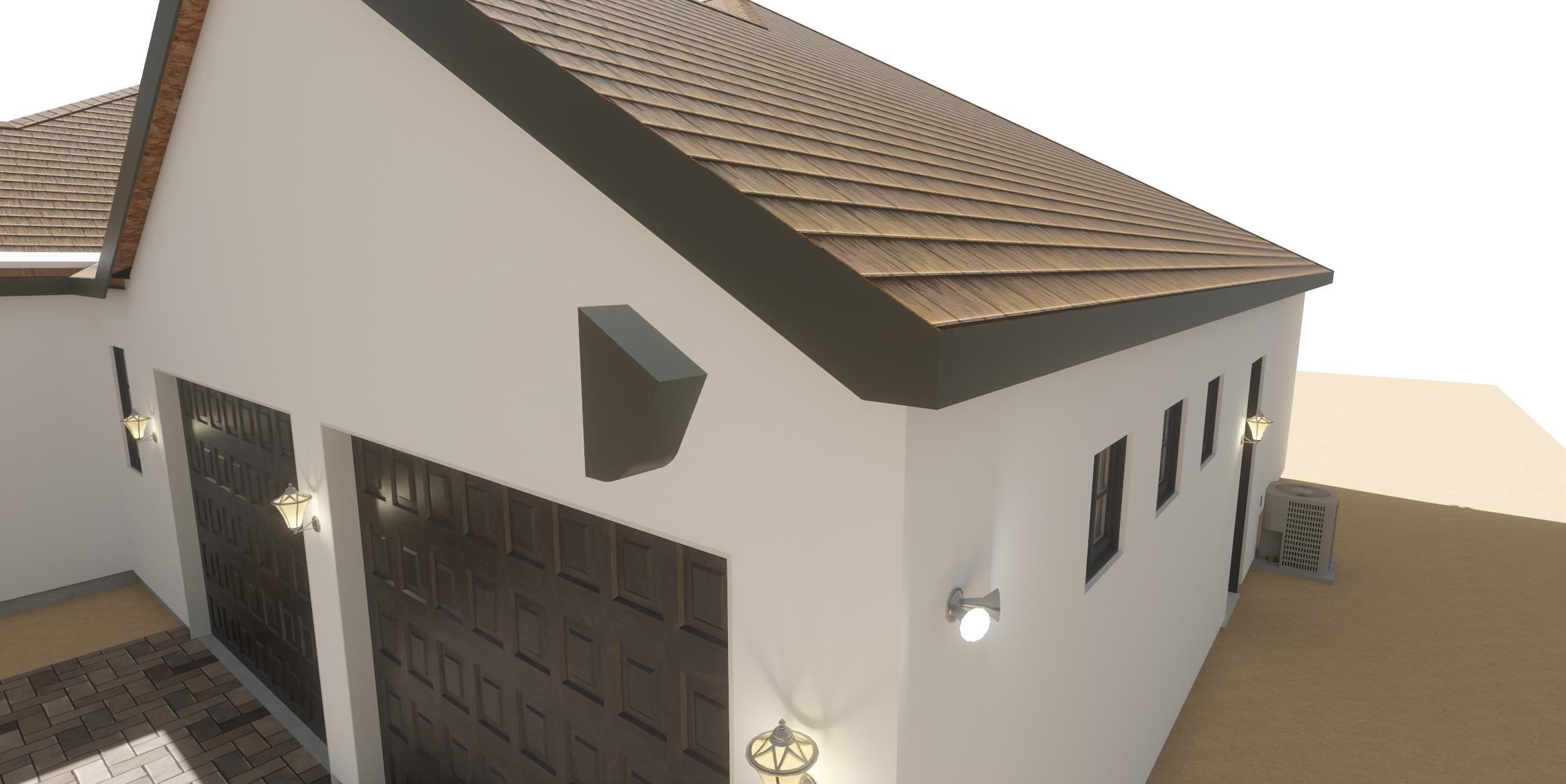

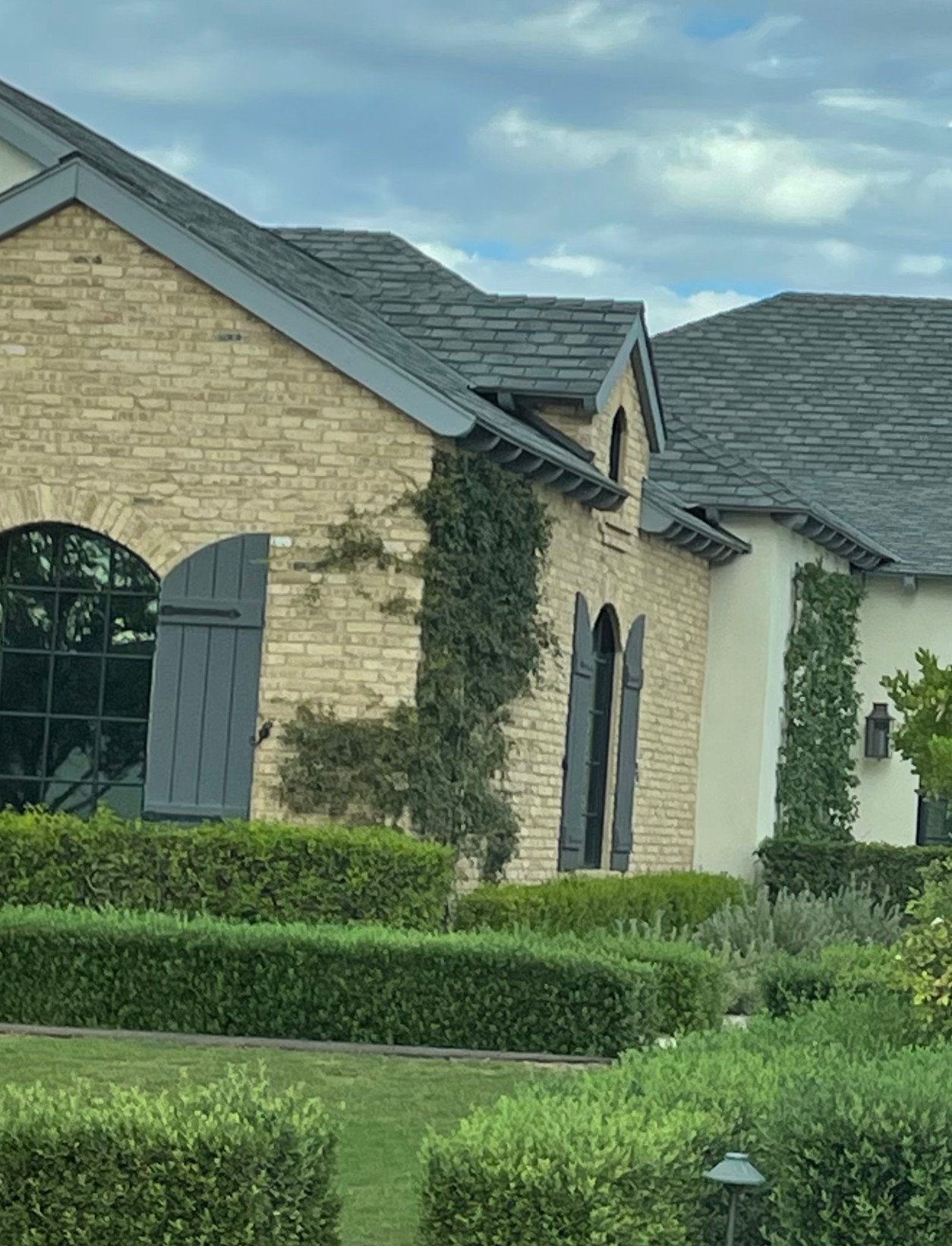

Would like to build corbel at eave soffit per enclosed pic.  I've created the corbel but it would add when I try to add as a rafter tail molding it won't...I know I can just add them at 24" oc manaully but I need to get rid of the facia and when I do that the front Gables come out chopped...suggestions?

[joey_martin]

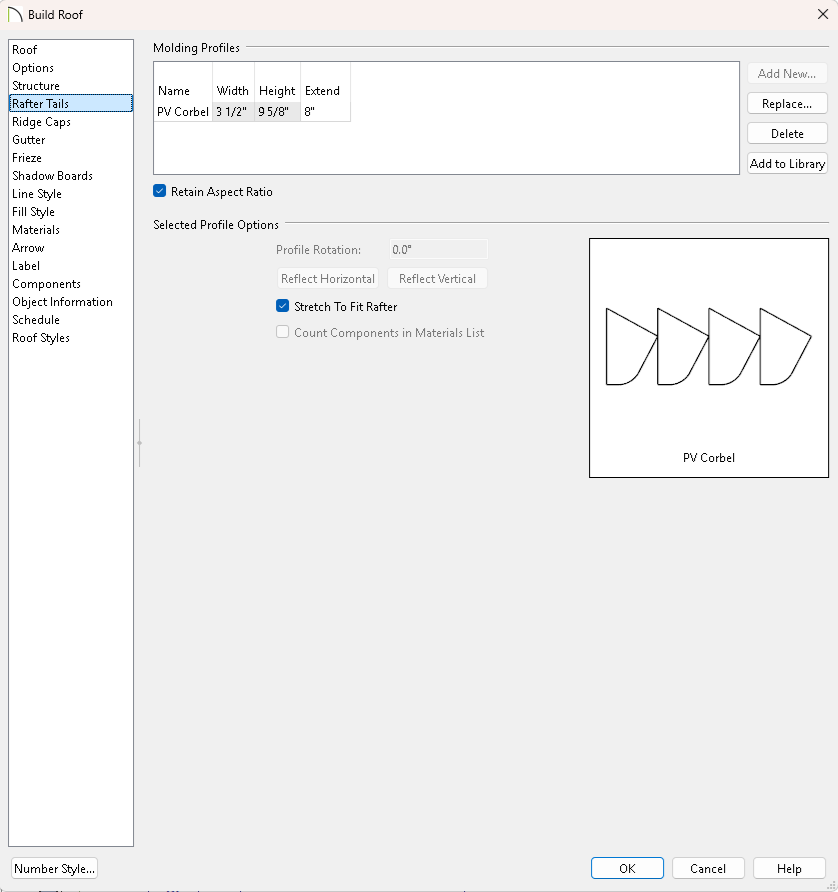

Remove fascia and sub-fascia and add these as rafter tails.



[John_B]

1 hour ago, joey_martin said:

Remove fascia and sub-fascia and add these as rafter tails.

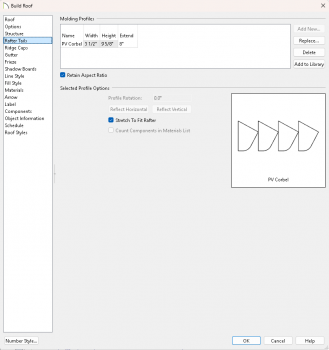

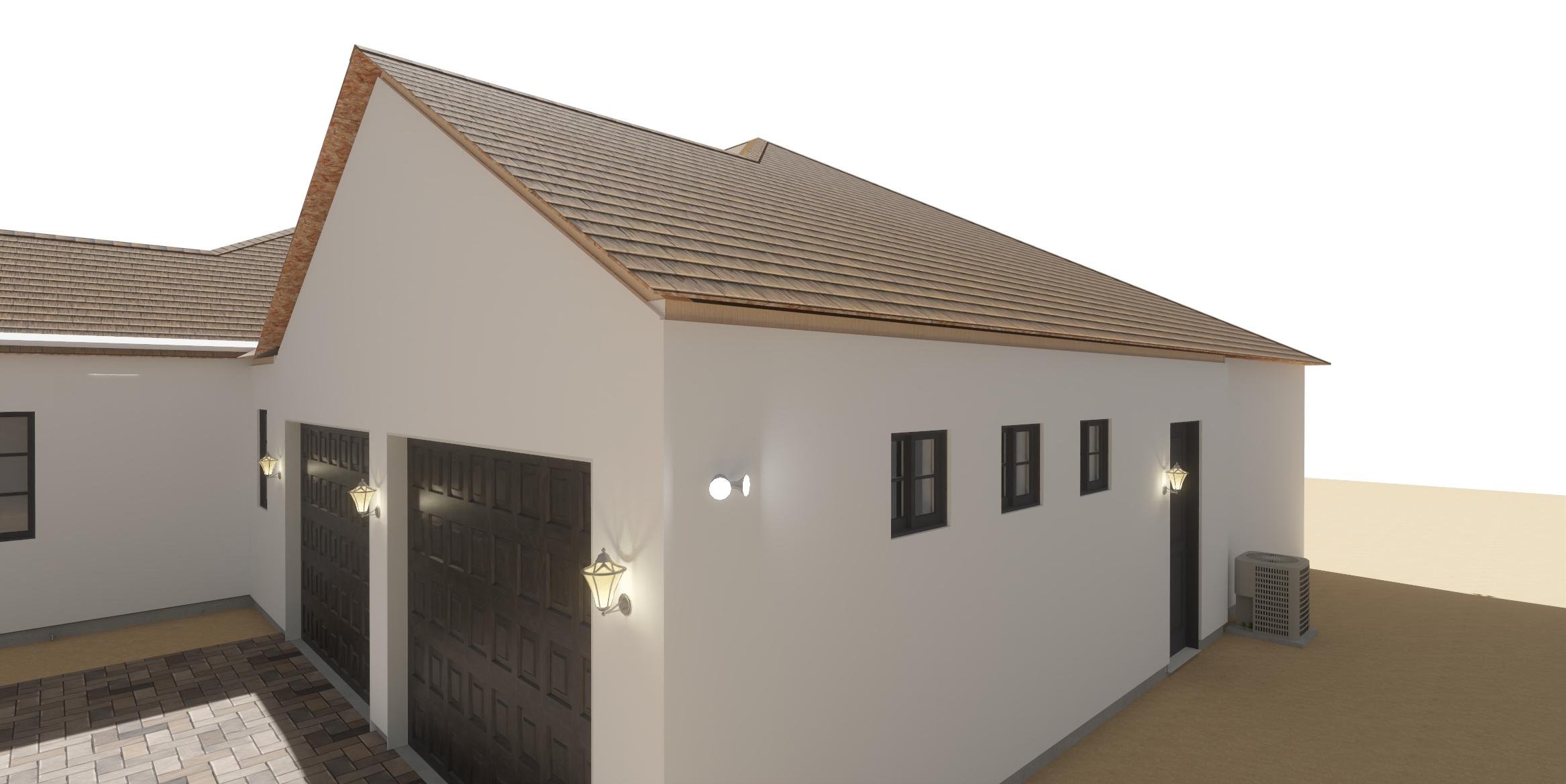

Tried that before posting, here's what I got..

[mtldesigns]

@John_B

Are all your roof layers on?  You shouldn't be seeing OSB.  How far out is your over hangs, this render looks almost flush.?

[John_B]

11 hours ago, mtldesigns said:

@John_B

Are all your roof layers on?  You shouldn't be seeing OSB.  How far out is your over hangs, this render looks almost flush.?

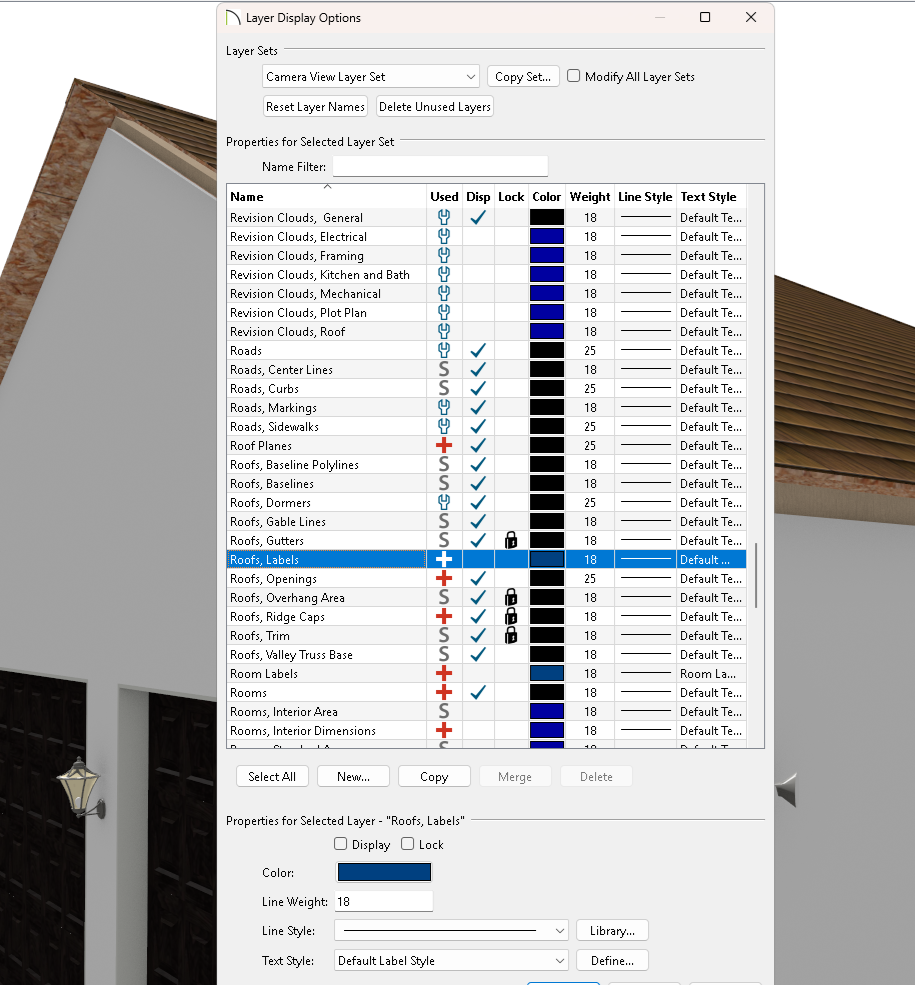

Yes, all layers with 8" at eaves, 4" at gable

Edited Wednesday at 02:31 PM by John_B

[John_B]

12 hours ago, mtldesigns said:

@John_B

Are all your roof layers on?  You shouldn't be seeing OSB.  How far out is your over hangs, this render looks almost flush.?

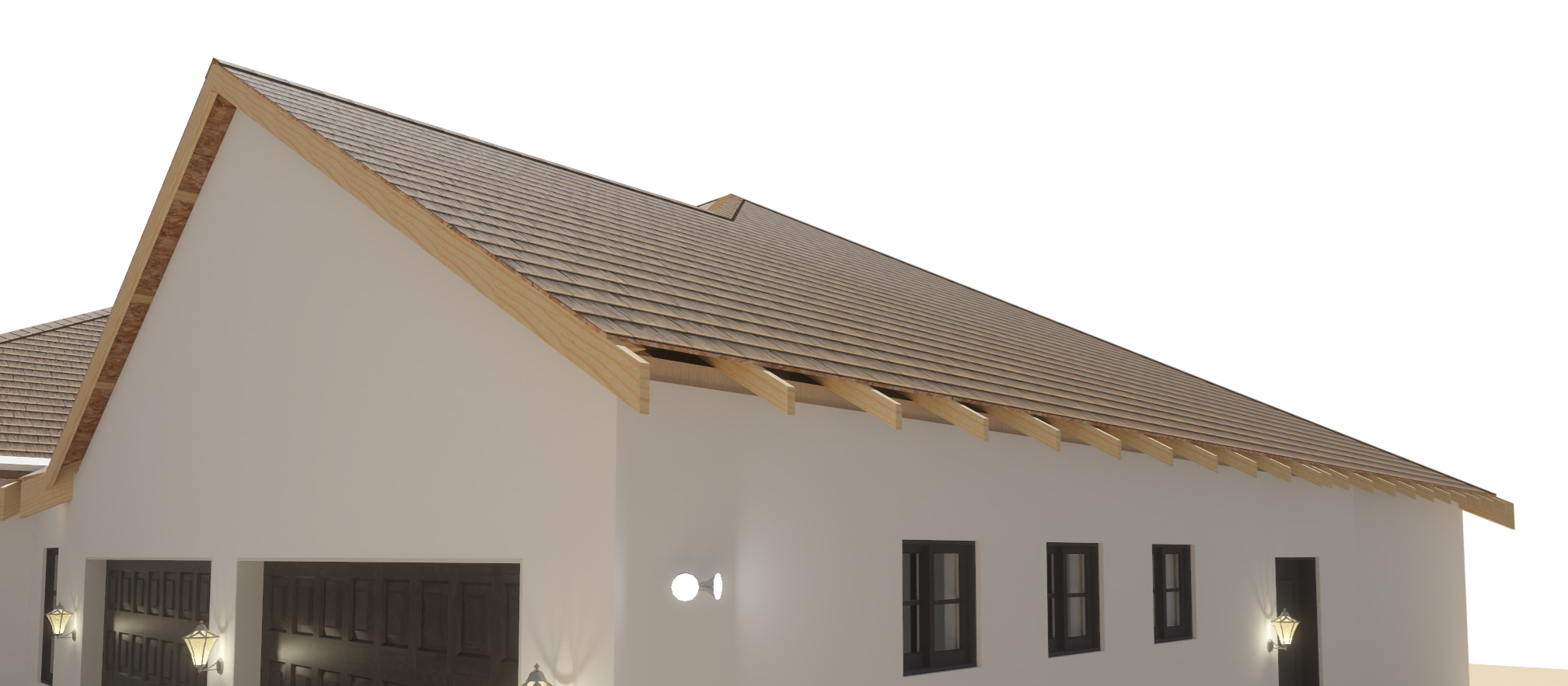

The OSB you're seeing is from under the roof because the blocking is not there for some reason, here a it is with all framing layers turned on showing the rafter tails sticking out 15" whjich I did not specifiy as you can see above!

[MPDesign]

Have you rebuilt the roof framing after adding the profile?
