Curved brick stair wall

[PitMan71]

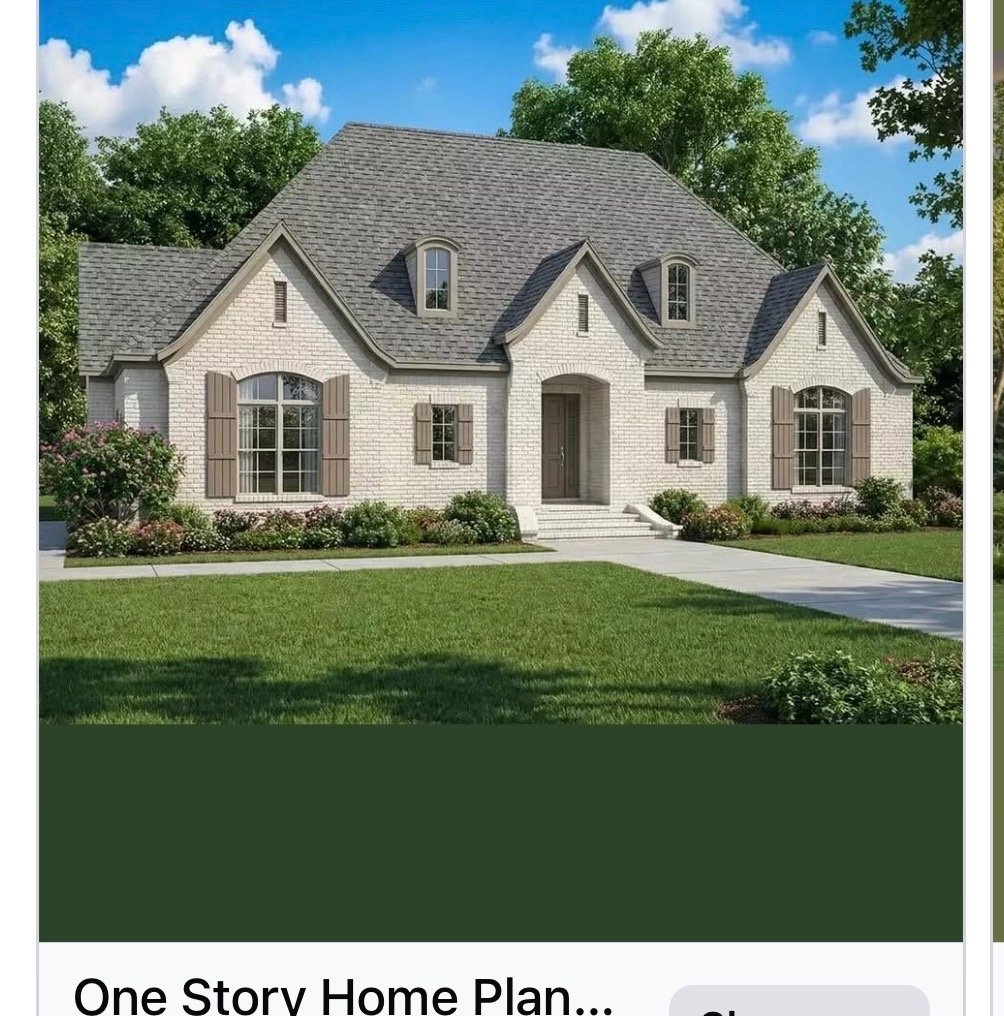

Hello all.... What is the best approach to build the curved stair wall at the stairs?



[Rpadge]

This video may help



[robdyck]

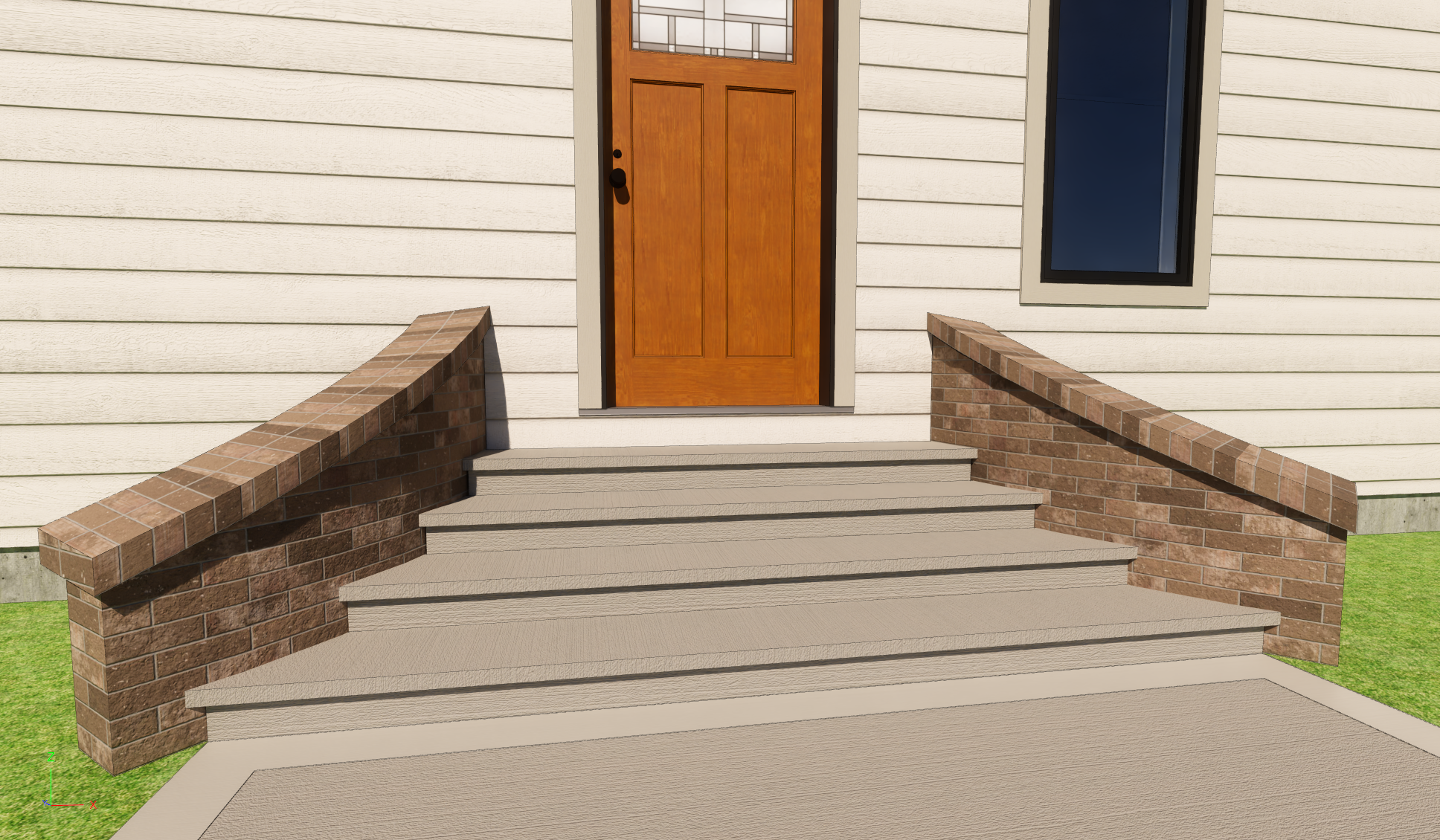

I'd suggest using a wall (no room definition) with a wall cap. Use CAD lines and arcs to create exact geometry for reference and snapping. Work on one side of the stairs only and copy/reflect about the center when complete. Draw the wall at an angle. In section view, manually lower the top of the wall to be parallel with the rise angle. Then, in plan view, curve the wall and set it's radius to match your CAD reference arc. Use the point-to-point move tool to align the arc centers. For the stairs, first add and shape the flare and I'd also make sure winders is checked.

[PitMan71]

Thanks. I had already tried both of these options . The wall didnt work as well. I will give it another shot though. Thanks all.

Edited September 27 by PitMan71

[PitMan71]

Wound up using the walls. Worked perfectly. Thanks.

[JonathanK]

I know this has already been answered, but unfortunately my go-to in "weird things" is to just use solids.

Maybe that stems from older versions where you always used to get odd behavior when you tried to do it the way it would actually be built...so I would just create everything manually.



Good to see that there are better ways to do these types of things now.
