Terrain and doors at incorrect height

[K-Lynn]

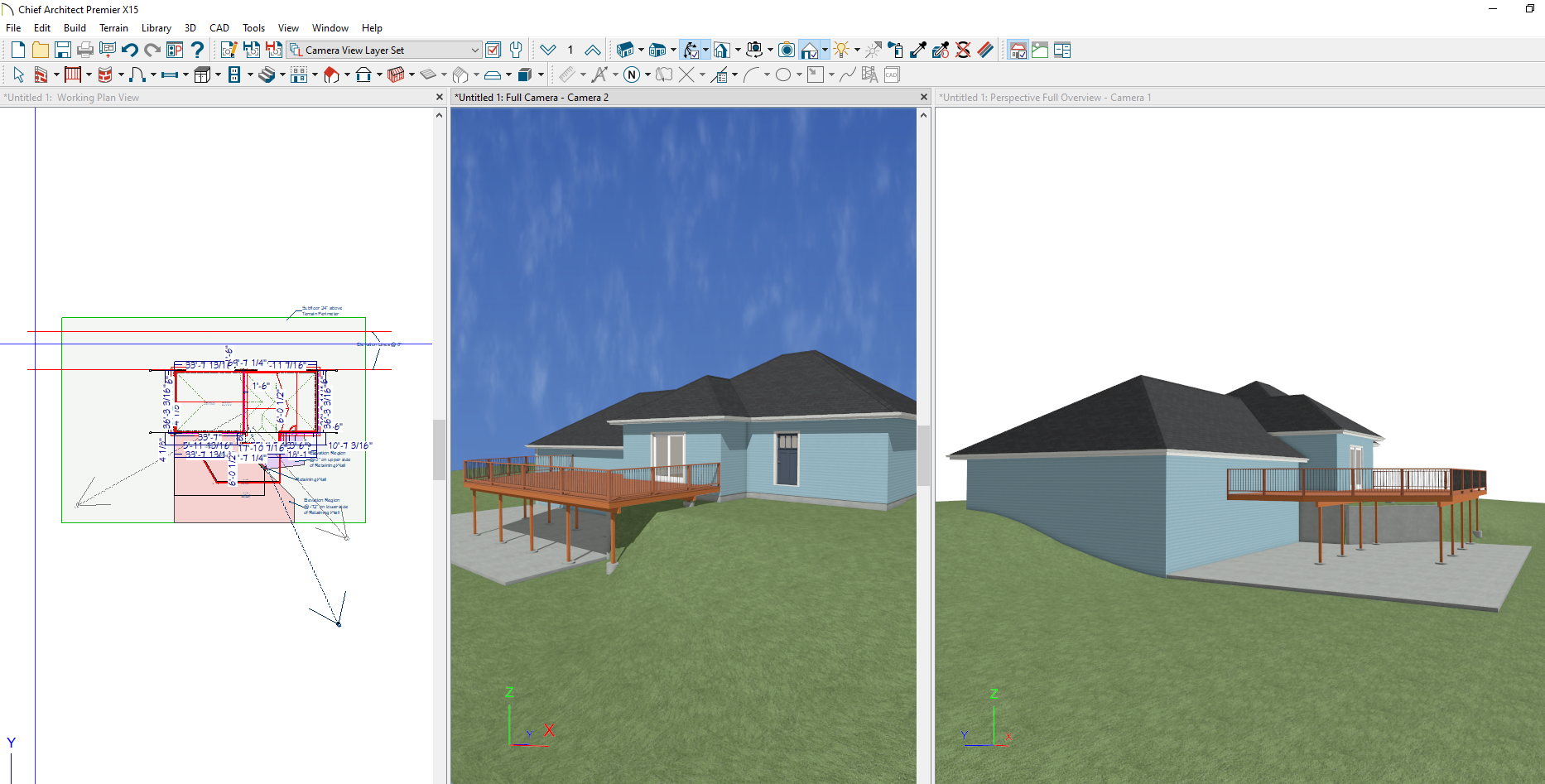

I am working on a deck renovation and am baffled as to why the elevation region for the walkout is moving the entire terrain down. I have the terrain at 2" below subfloor and the region at -96". Also, the sliding door and single door on the middle and right sections are showing at the basement level in 3D. They are supposed to be on the main level as shown in the plan.



What am I missing? I'm using X15.



Thanks

deck renovation.dwg

Edited 8 hours ago by K-Lynn

[Mark3D]

With terrains you cannot just put one piece of elevation data you need multiple elevation data, as if you have one elevation region the hole terrain will move to that height in relation to the settings in terrain perimeter.

So a sloped block of land with an 8' slope you might have 4' elevation data and -4' elevation data you must control the terrain with more than one piece of elevation data

[Mark3D]

48 minutes ago, K-Lynn said:

I am working on a deck renovation and am baffled as to why the elevation region for the walkout is moving the entire terrain down. I have the terrain at 2" below subfloor and the region at -96". Also, the sliding door and single door on the middle and right sections are showing at the basement level in 3D. They are supposed to be on the main level as shown in the plan.



What am I missing? I'm using X15.



Thanks

deck renovation.dwg 427.95 kB · 0 downloads

Also Share your chief plan file when looking for help on the forum not dwg
