TBlackwell11 Posted Tuesday at 07:02 PM Share Posted Tuesday at 07:02 PM I must have altered an internal setting somewhere because once I PDF my layout, the dimension lines and measurements seem to be bolded/are appearing thicker in lineweight than in layout planview/normal. Can anyone advise how to revert back to normal? Thank you!! Cheif X17 Link to comment Share on other sites More sharing options...
DBCooper Posted Tuesday at 10:08 PM Share Posted Tuesday at 10:08 PM Does turning on the display of line weights in layout make a difference? If it does, then the problem could be the line weight that you are using for the dimension lines is too heavy?. Check the layer settings for the layer set you are using for that view. If it doesn't affect it, then it might be a problem with pdf driver you are using? Could try using a different one to see if it makes a difference. Link to comment Share on other sites More sharing options...

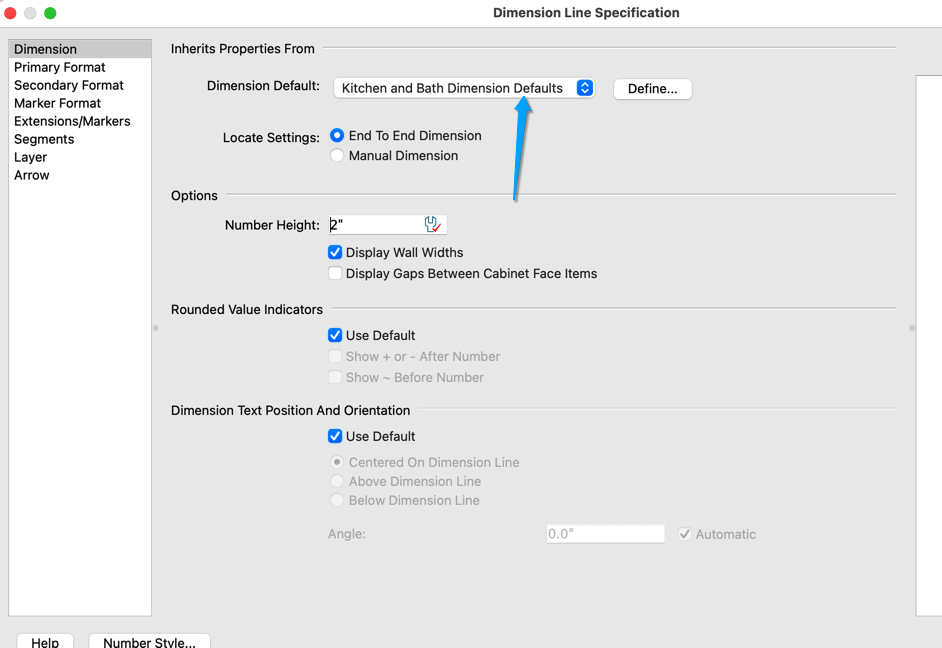

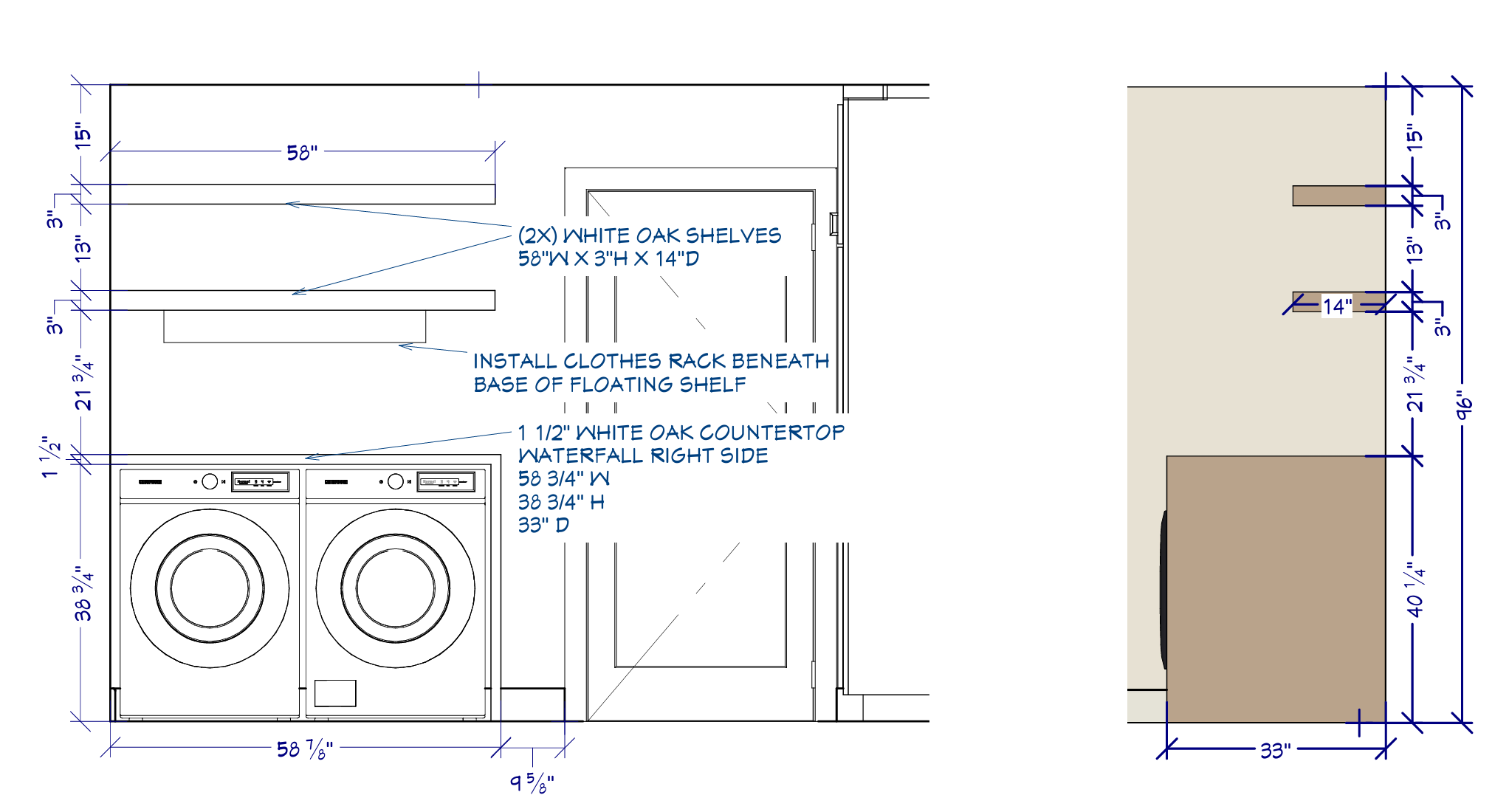

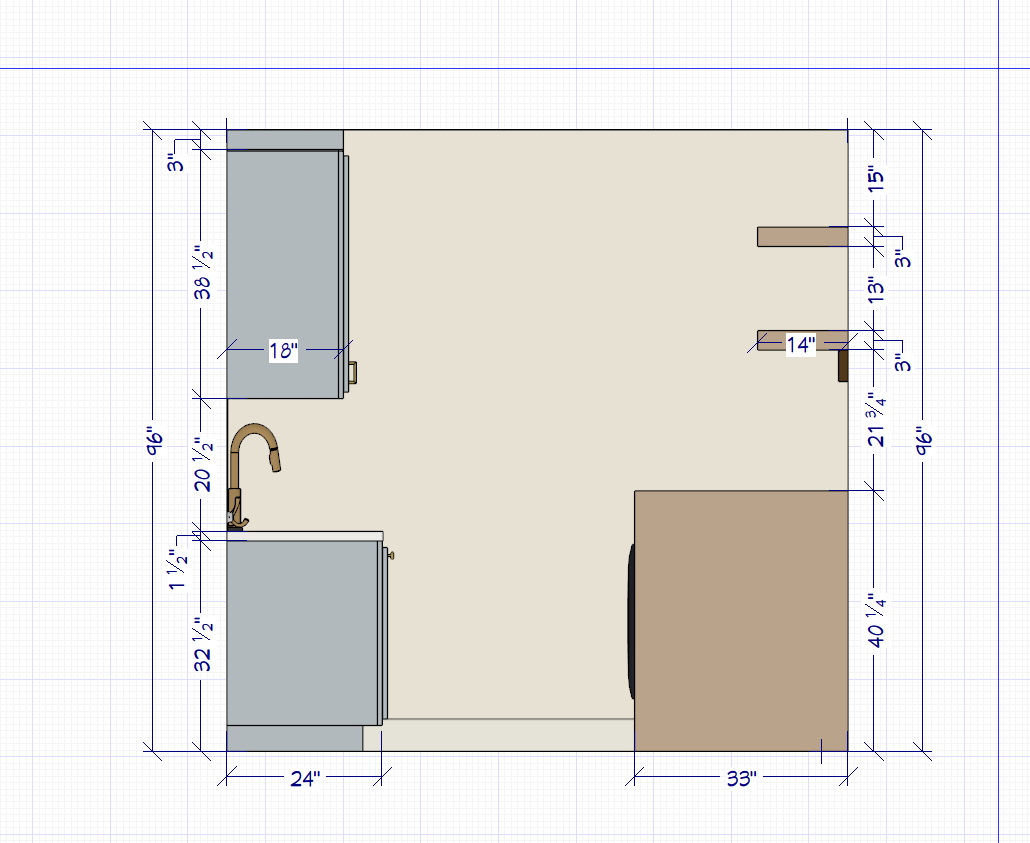

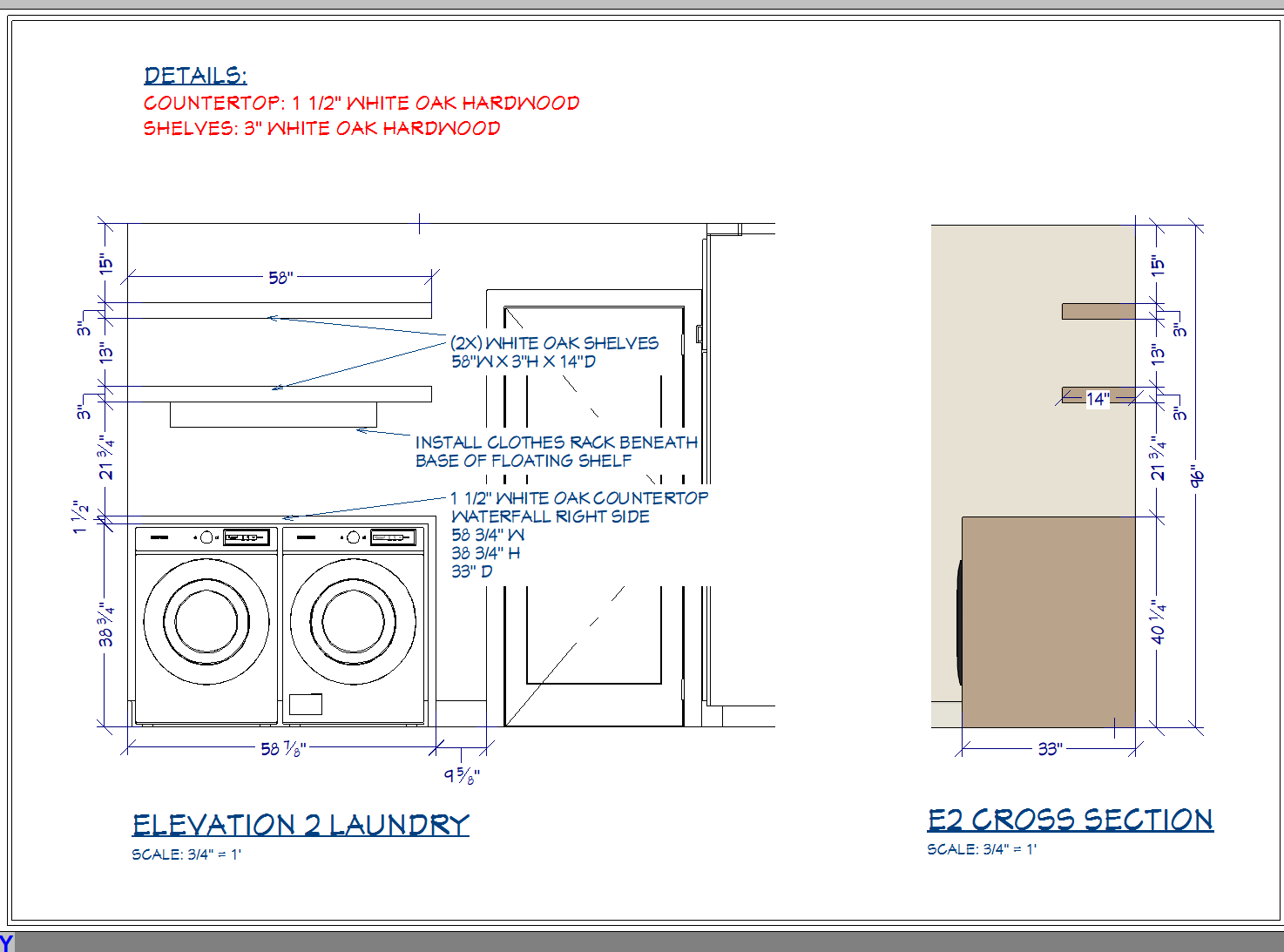

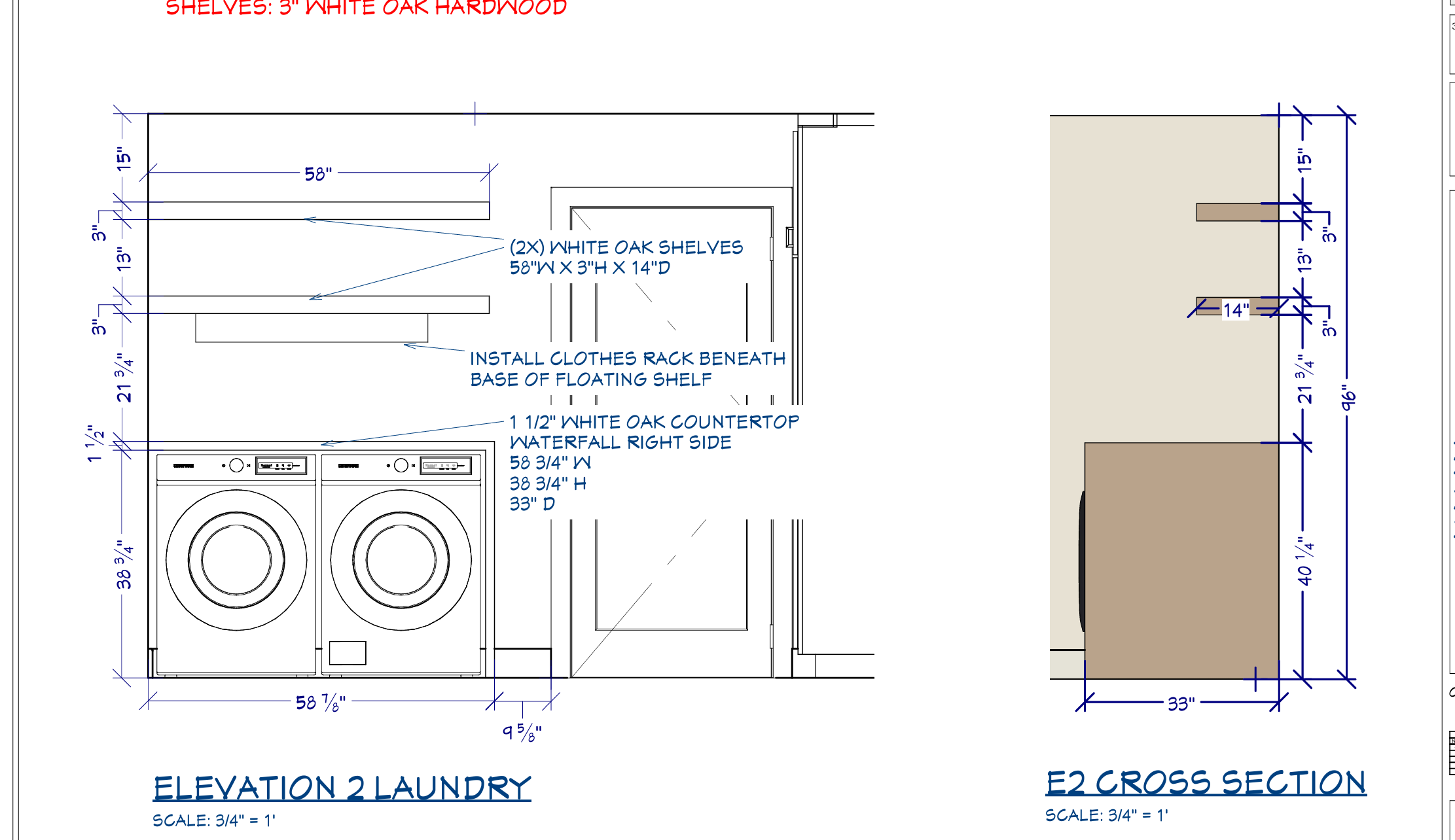

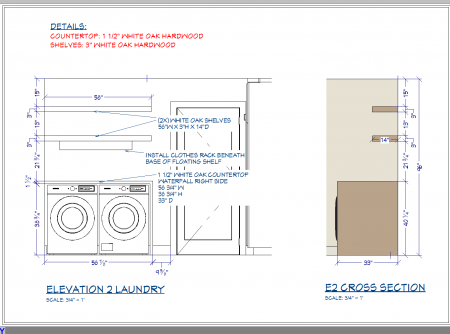

TBlackwell11 Posted 15 hours ago Author Share Posted 15 hours ago I'm still not sure. I should say, this only began happening recently, and it's only in the color fill version: Link to comment Share on other sites More sharing options...

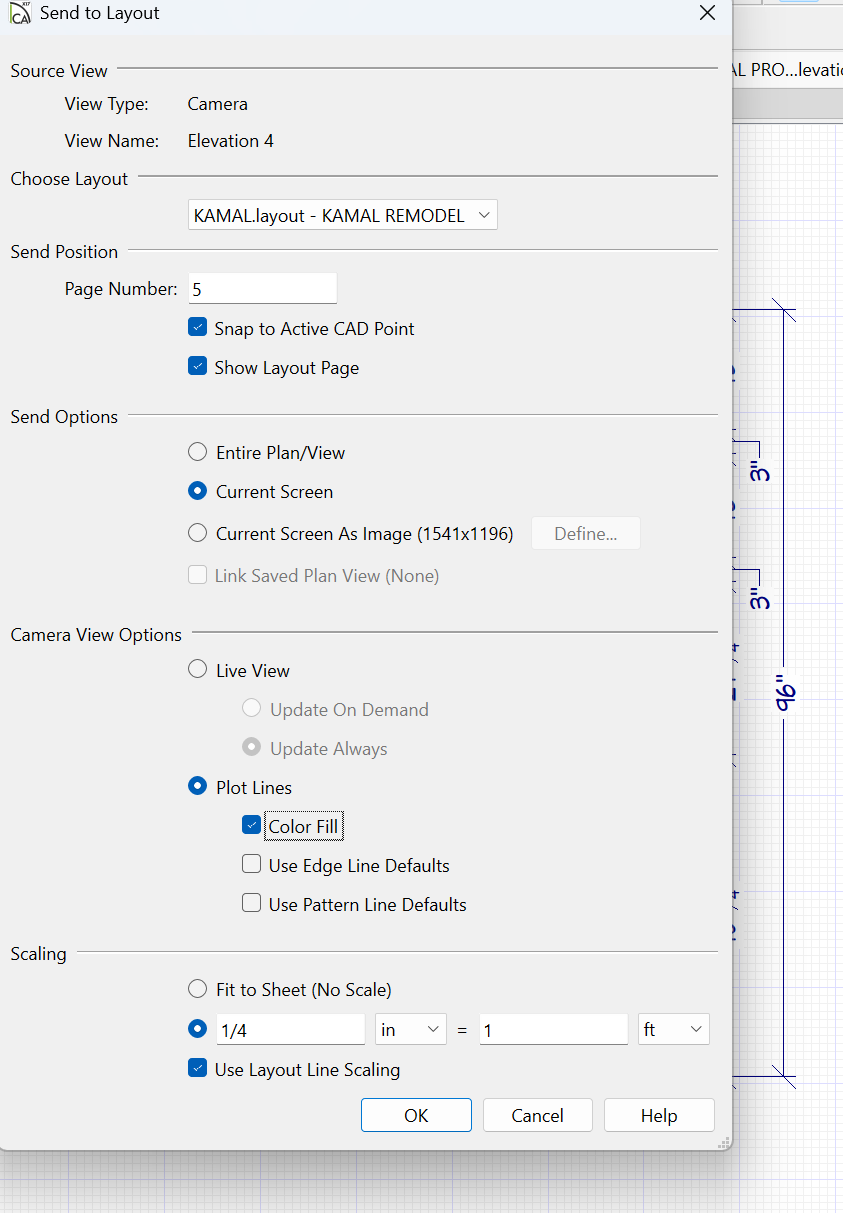

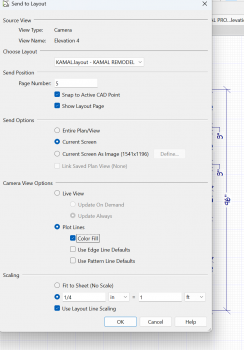

SHCanada2 Posted 15 hours ago Share Posted 15 hours ago are you sending both of those to layout, or are you copying the layout box and relinking for the one on the right? Link to comment Share on other sites More sharing options...
DBCooper Posted 14 hours ago Share Posted 14 hours ago If you post your plan and layout, someone will probably be able to figure it out. Link to comment Share on other sites More sharing options...
