Bullnose veranda roof

[Frenchy1]

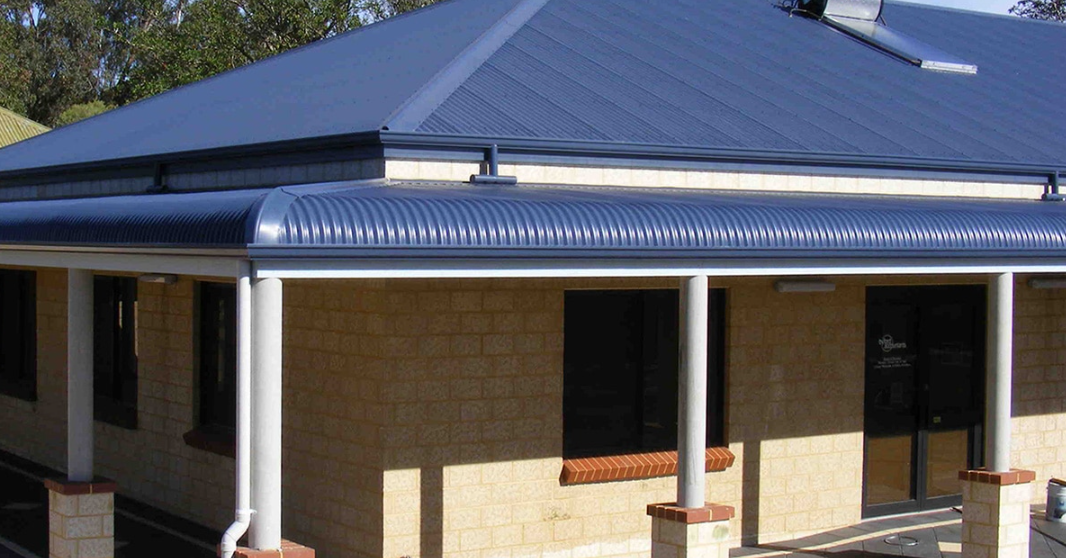

Hi all, can anyone create a bullnose veranda roof that looks like the attached? For now I have ended up doing it in a 3D solid with a moulded polyline, but it's making the software very laggy.

Edited Saturday at 05:02 AM by Frenchy1

[JKEdmo]

15 minutes ago, Frenchy1 said:

Hi all, can anyone create a bullnose veranda roof that looks like the attached? For now I have ended up doing it in a 3D solid with a moulded polyline, but it's making the software very laggy.

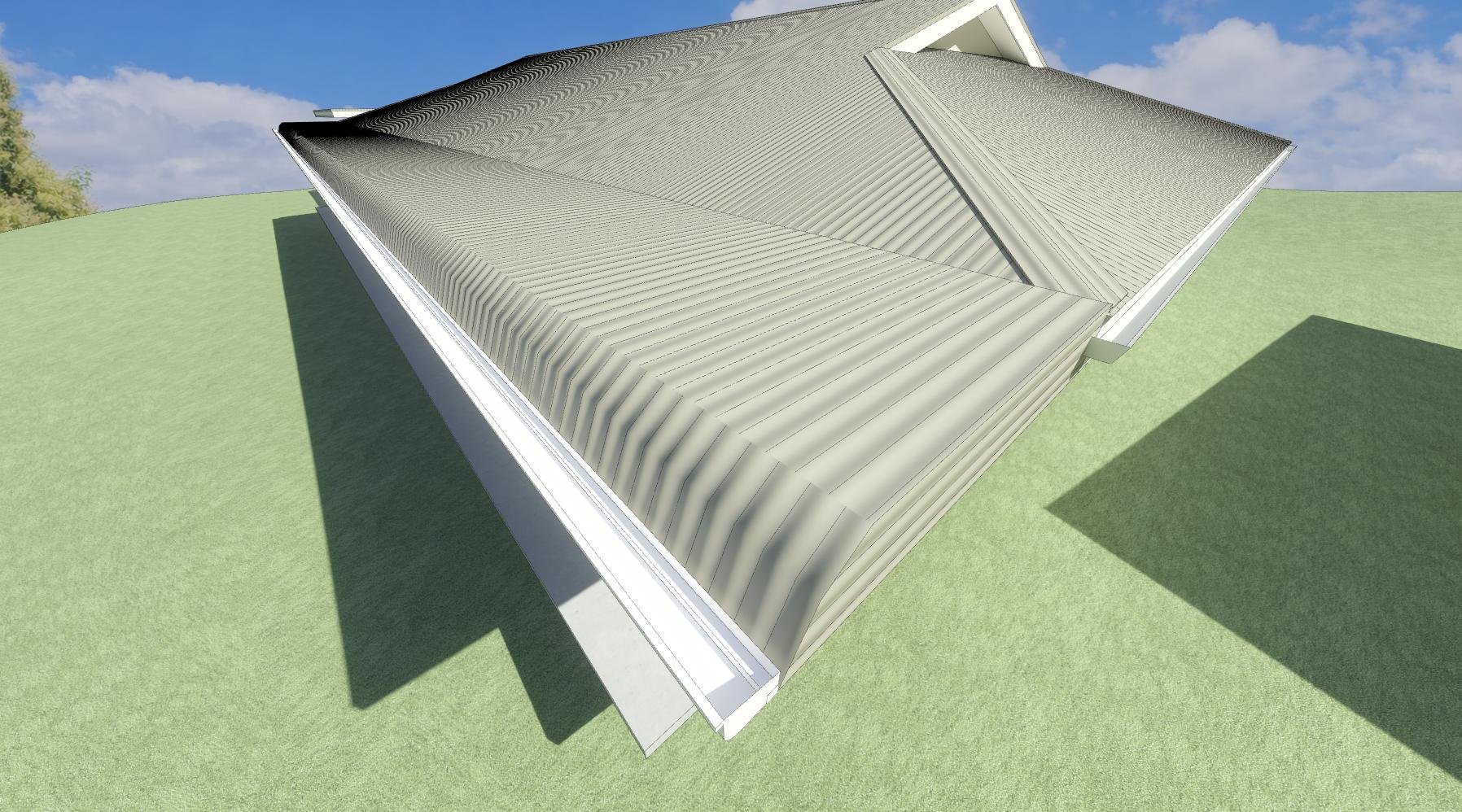

I did a quick test roof using the curved roof option (X17 plan attached).  Seems promising.  I've never done a roof like this before but might point you in the right direction.



- Jim









TEST ROOF.plan

[Frenchy1]

Thanks so much. It's close, but the radius just needs to be so much tighter and then flat on the top.

[Mark3D]

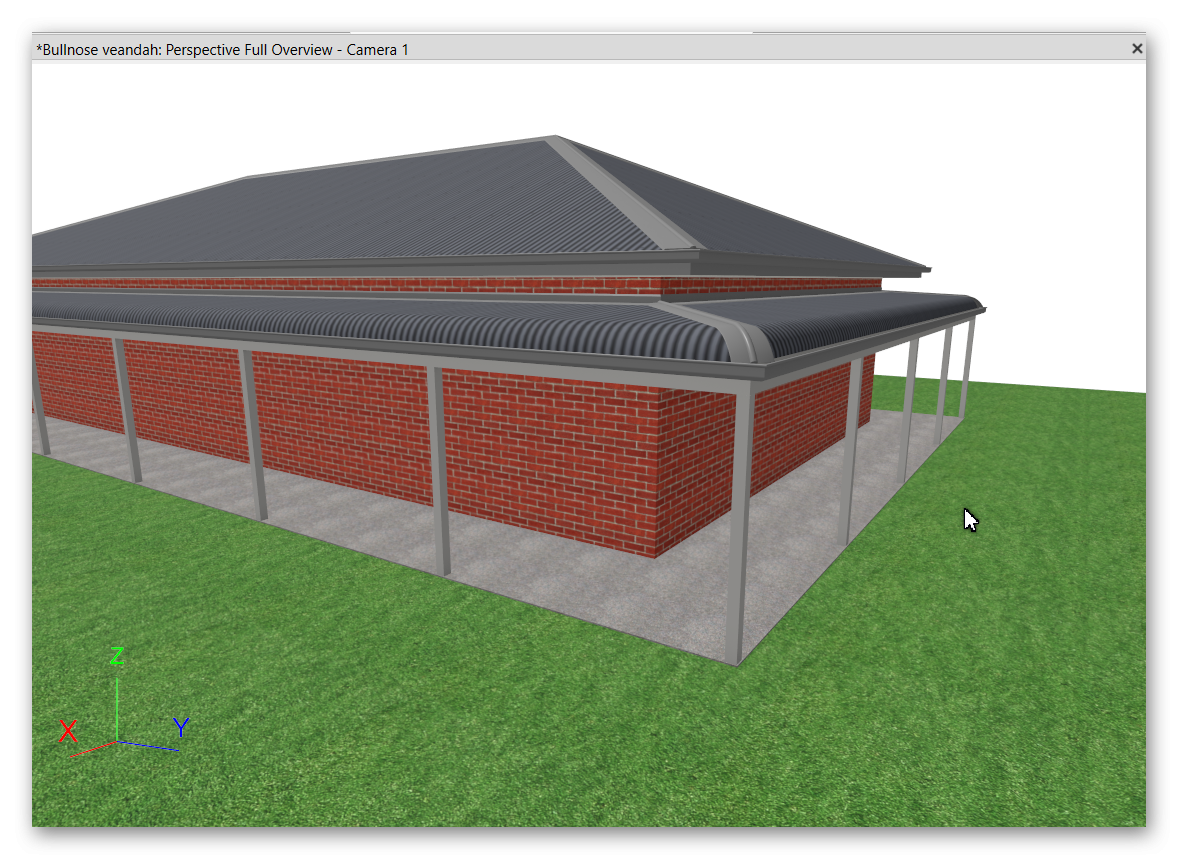

Try this its a 3d molding line with stacked moldings



Bullnose veandah 2100.plan

Edited 17 hours ago by Mark3D

[Frenchy1]

1 hour ago, Mark3D said:

Try this its a 3d molding line with stacked moldings

Bullnose veandah.plan 3.99 MB · 1 download

Will do, thanks so much.

[Frenchy1]

1 hour ago, Mark3D said:

Try this its a 3d molding line with stacked moldings

Bullnose veandah.plan 3.99 MB · 1 download

Hi Mark3D, would you be able to convert this so I can just use it down one side of the building? I haven't actually worked with stacked mouldings so I don't know how to adapt it.

[Frenchy1]

2 minutes ago, Frenchy1 said:

Hi Mark3D, would you be able to convert this so I can just use it down one side of the building? I haven't actually worked with stacked mouldings so I don't know how to adapt it.

Also 2100mm in width

[Frenchy1]

1 hour ago, Mark3D said:

Try this its a 3d molding line with stacked moldings

Bullnose veandah.plan 3.99 MB · 1 download

It's all good, Mark. I worked it out. Thanks so much. Great work.

[Mark3D]

1 minute ago, Frenchy1 said:

Also 2100mm in width

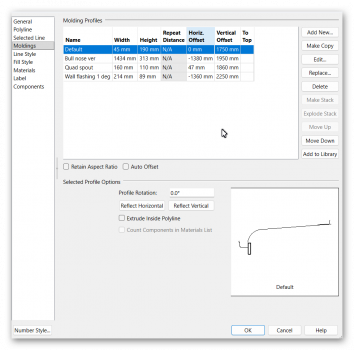

You just need to redraw the section line I used for the roof section of the molding polyline to get the 2100 width and adjust its position on the molding polyline.

let me know if it's to tricky

Bullnose veandah.plan

[Doug_N]

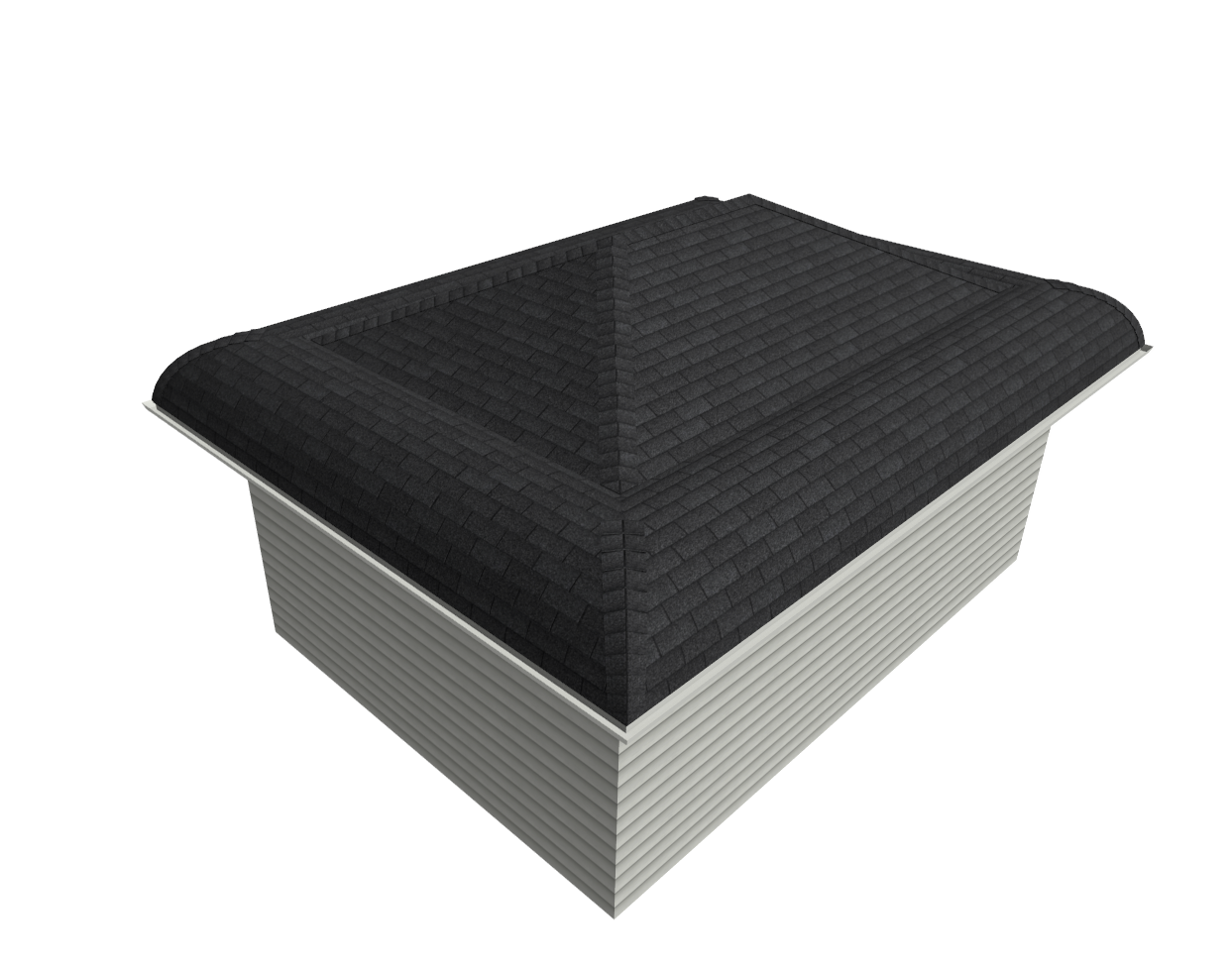

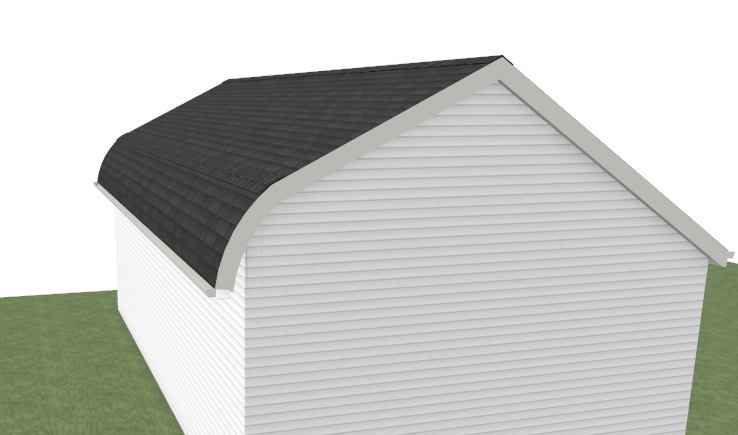

This was just playing with making an upper an lower segment roof with different pitches for each segment, a really steep slope on the lower roof, and then curving the lower section.



Seemed to work.



[Mark3D]

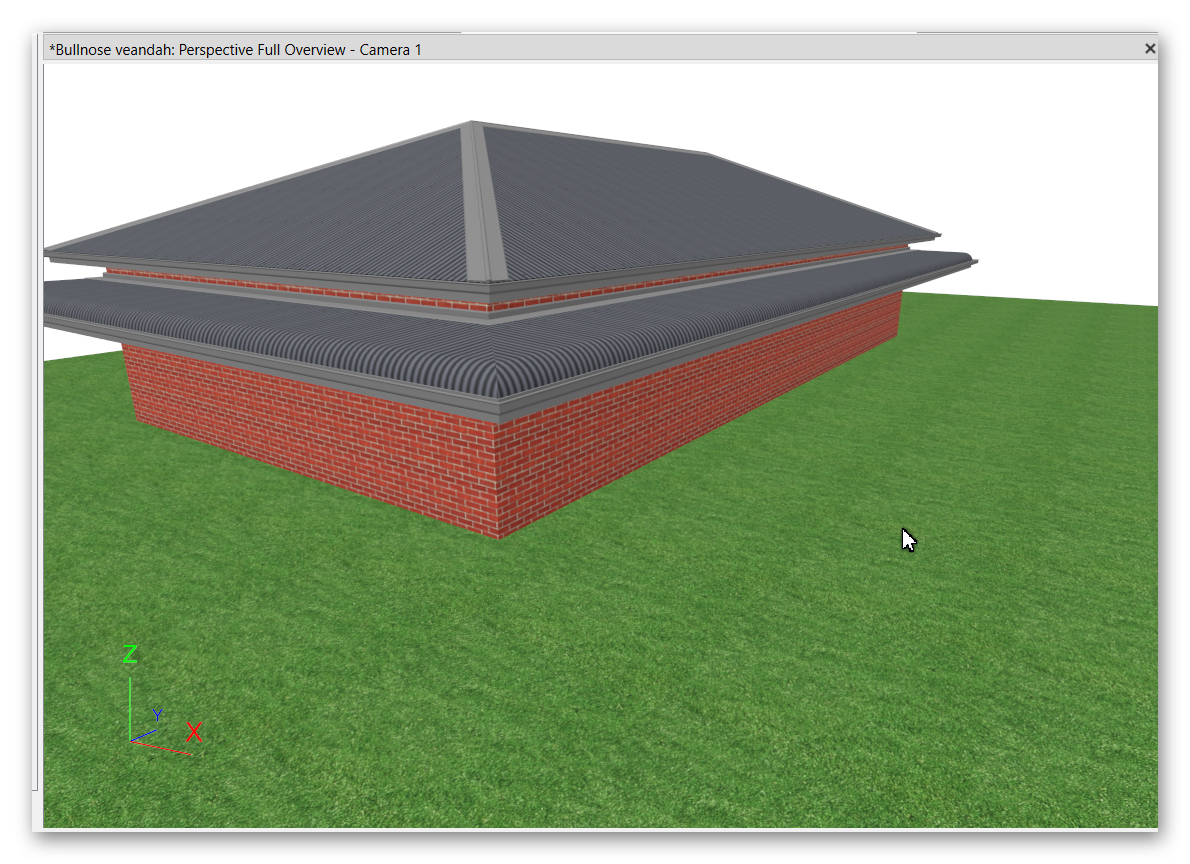

Hips and ridge capping

[Frenchy1]

Thanks everyone. I need to look more into stacked mouldings I think. They don't seem to be that intuitive to me but I'm stupid

Edited 22 hours ago by Frenchy1

[Mark3D]

They are a bit complex i have been trying to do video showing it as i spotted as a good topic for au users and getting stressed with it  i need to relax and have another go when I am calm.

[Frenchy1]

Are you an user? Not many of us. RAB made a video that included some stacked mouldings but it's still a bit you know fudgy trying to make it work

[Mark3D]

Try this video the audio is a bit up and down but should help

If you still cannot do it send me your plan will have a go



Edited just now by Mark3D
