convert gable to dutch gable

[SHCanada2]

I'm trying to do what I thought would be relatively simple. Change the gable to a dutch gable that looks like:

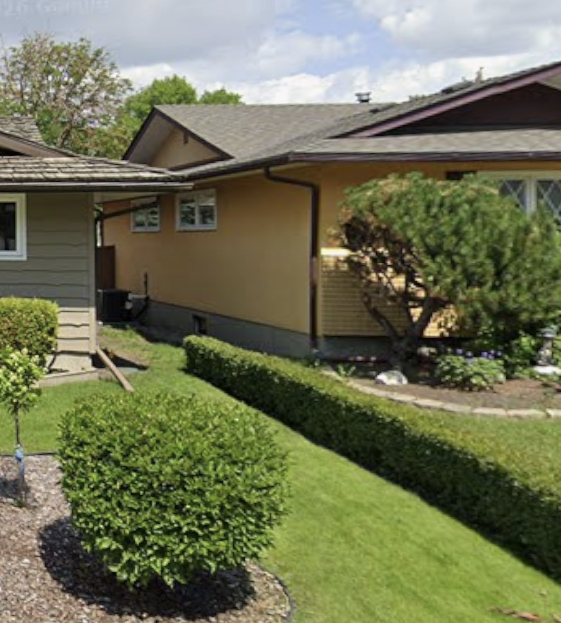

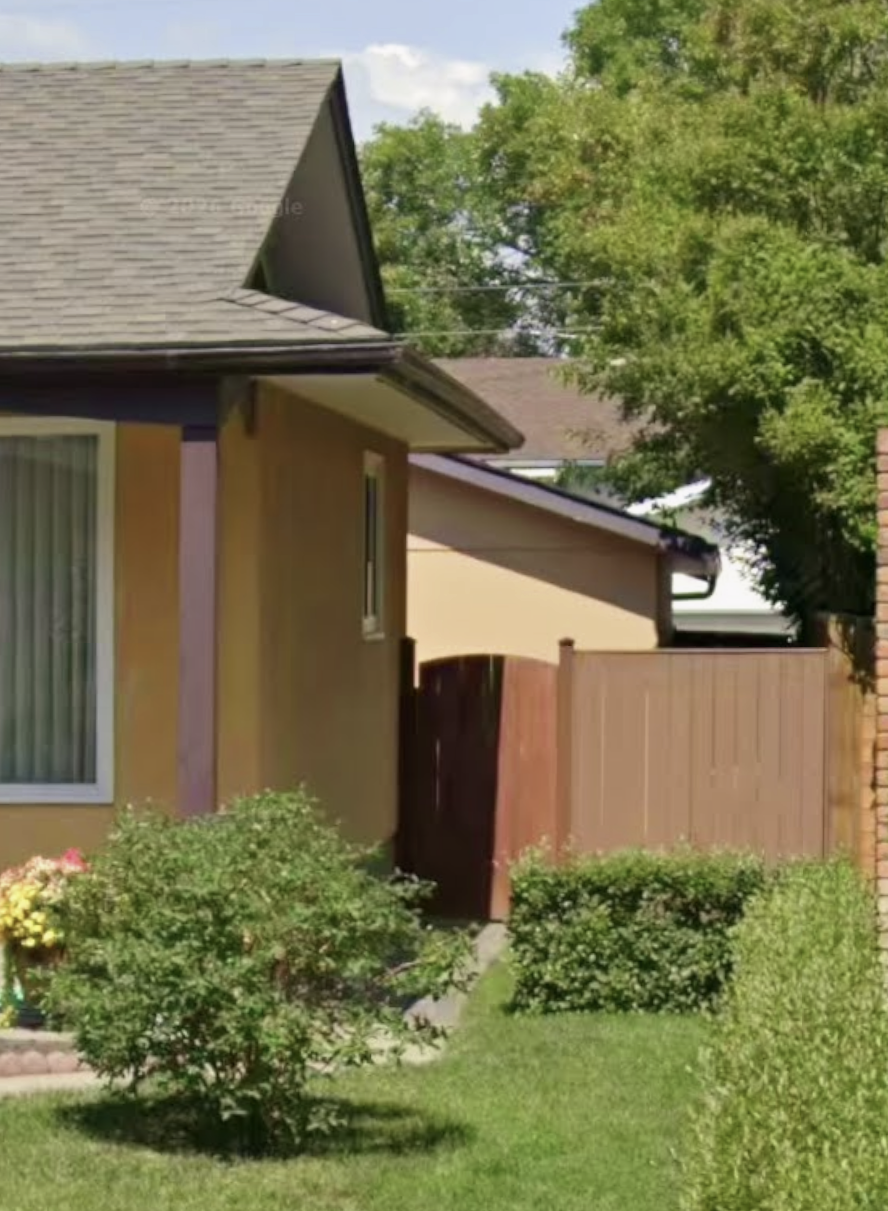

so the roofline is over the top plate

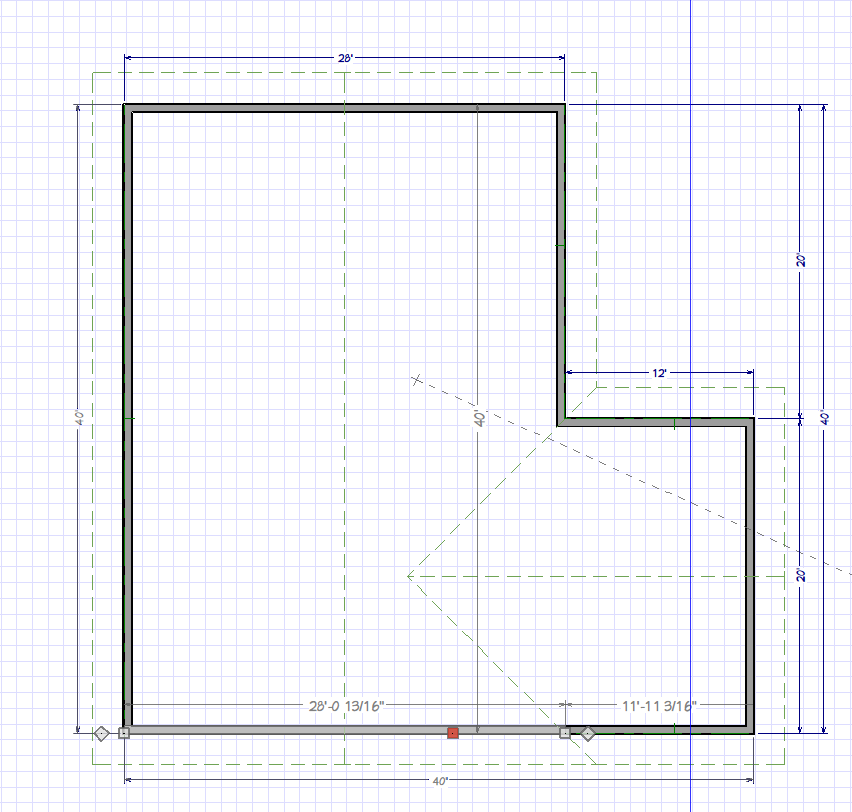

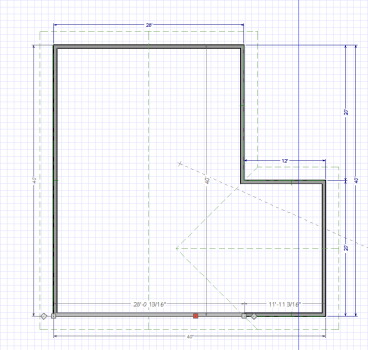

I have this, where the lower wall is broken to delineate the gable going across:

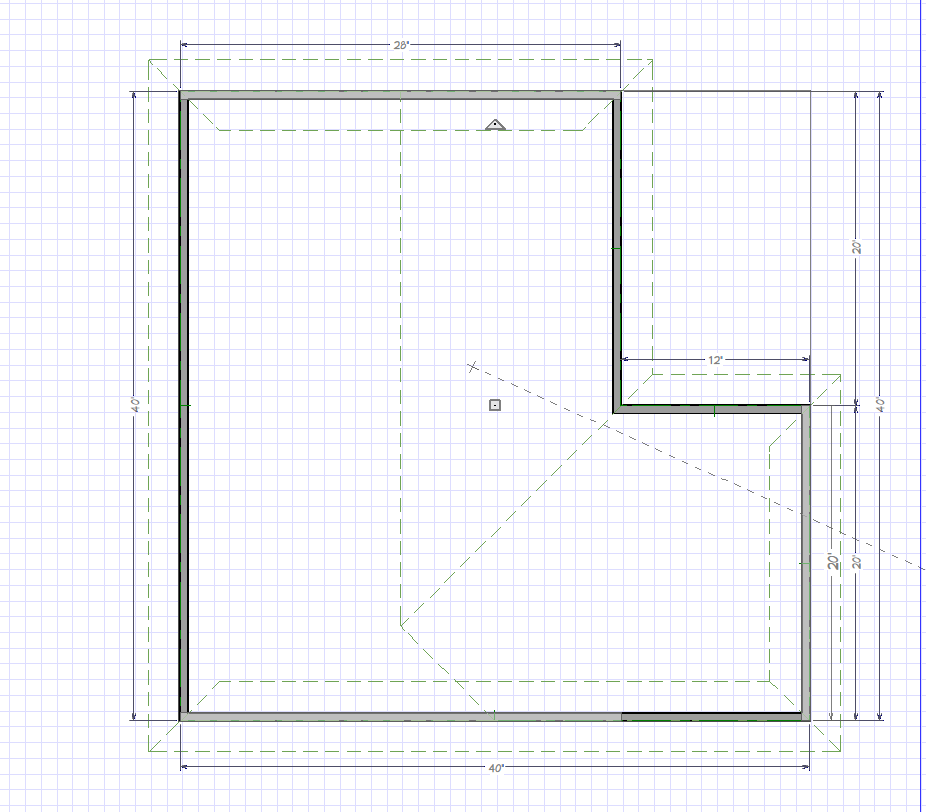

but if I change the 3 walls (broken, top, right lower) to duthc gable and set the in from baseline at 24" I get:

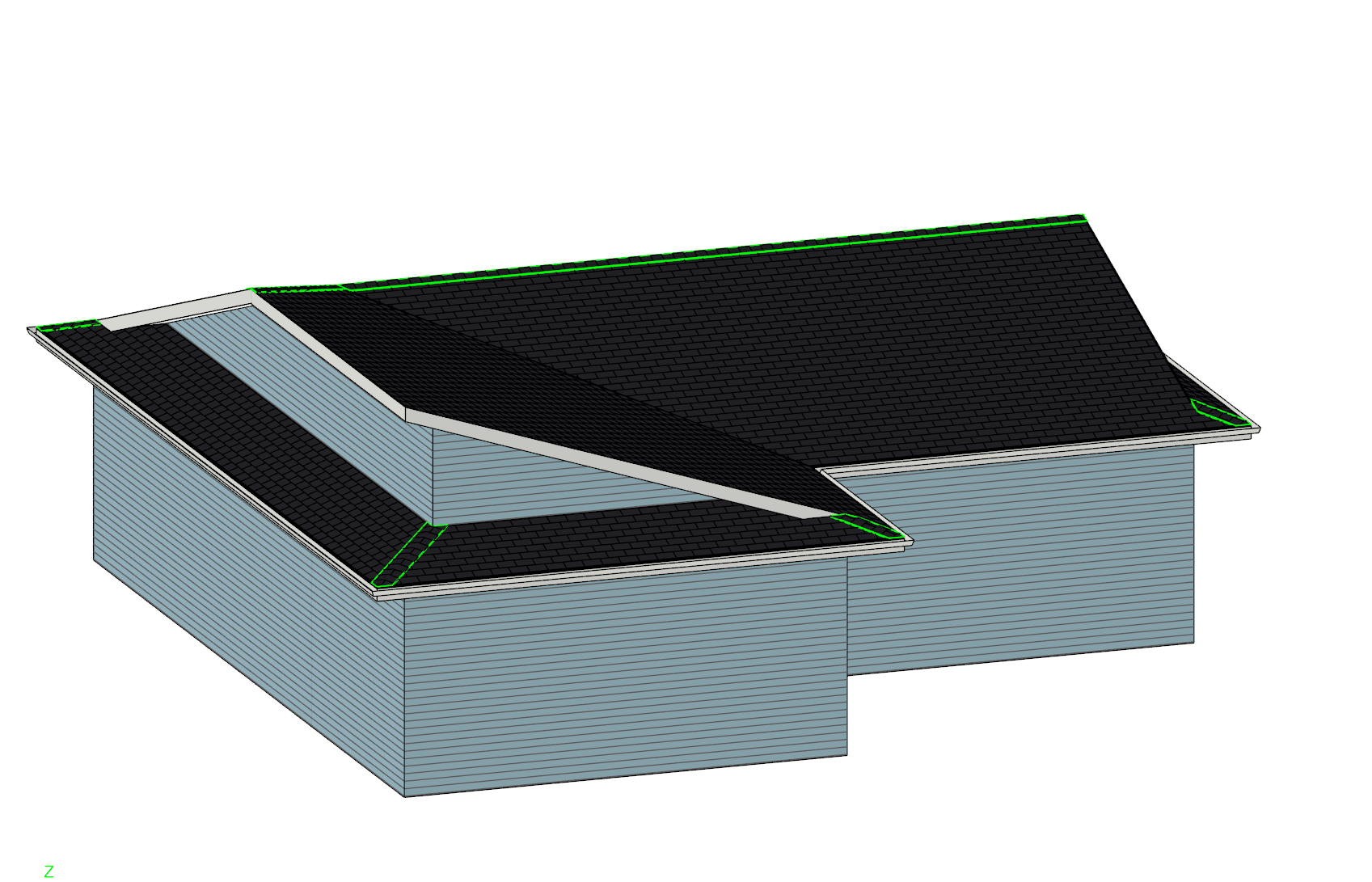

it looks like this:

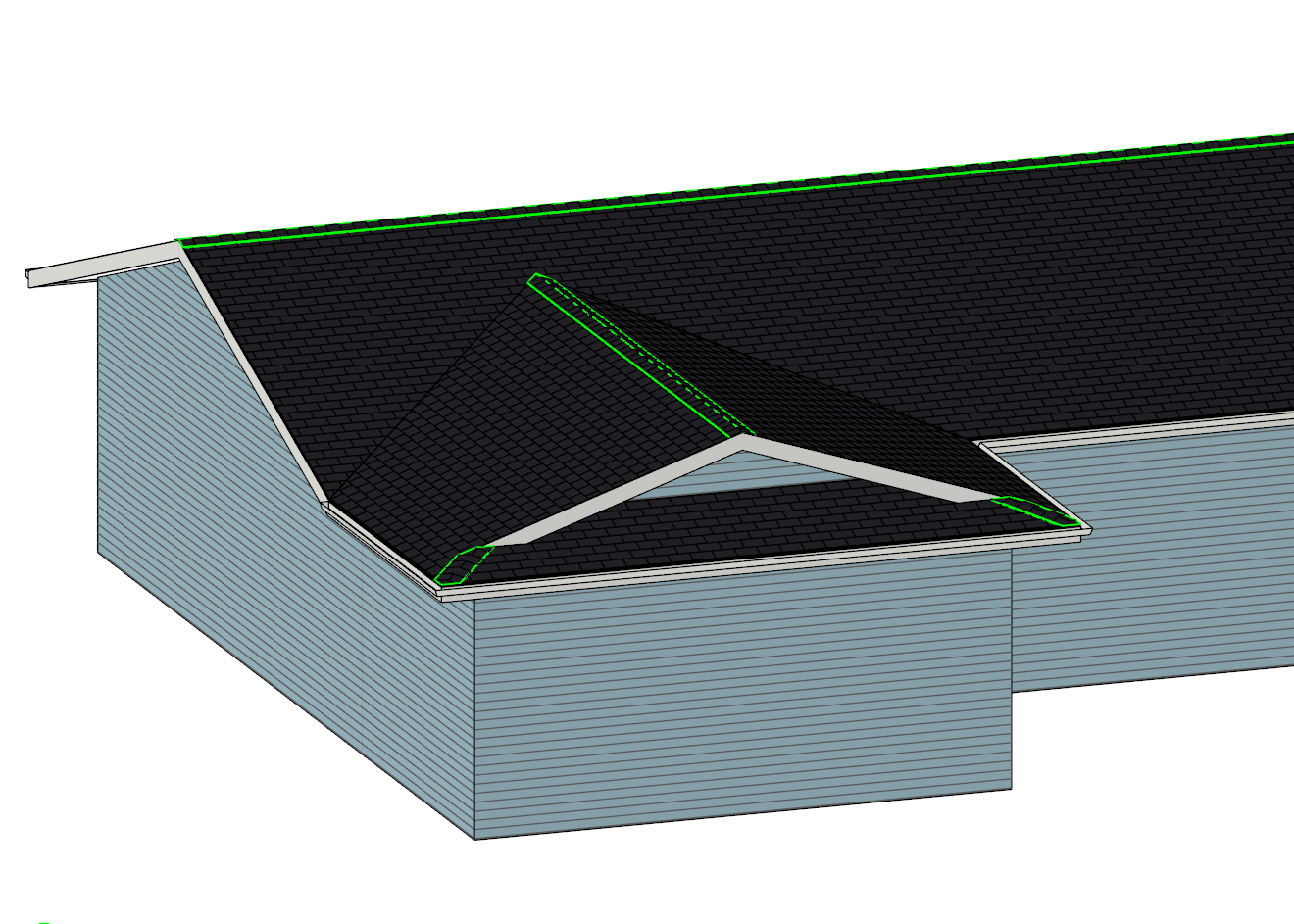

the one not seen looks good, but it looks like it just ignored the hip directive on the wall to the right of the broken wall



Residential Template - Copy 1.plan

Edited Saturday at 10:10 PM by SHCanada2

[Mark3D]

Have you watched this



[SHCanada2]

1 hour ago, Mark3D said:

Have you watched this

just did, but I realize I could build it manually, and this video shows a good way to do it compared to what I would have tried.



But is there no automatic way to do it? and why is the program dutch gabling the whole side when I only told it to do the left portion?



If I make that wall back to a gable, then the front garage is correctly built as dutch gable





so it has something to do with that split wall

Edited yesterday at 04:05 AM by SHCanada2

[SHCanada2]

well..found this in home designer forum which is exactly what I am trying to do



L-shaped Dutch gable roof - Q&A - HomeTalk Forum



CA staff state: "Home Designer Pro should give you the tools to make that happen. However, you can get really close in Home Designer Suite by using the following technique:"



I'm not sure if the "tools" means manually or automatically



I tried the work around in this thread and could not get it to work





Edited yesterday at 04:45 AM by SHCanada2
