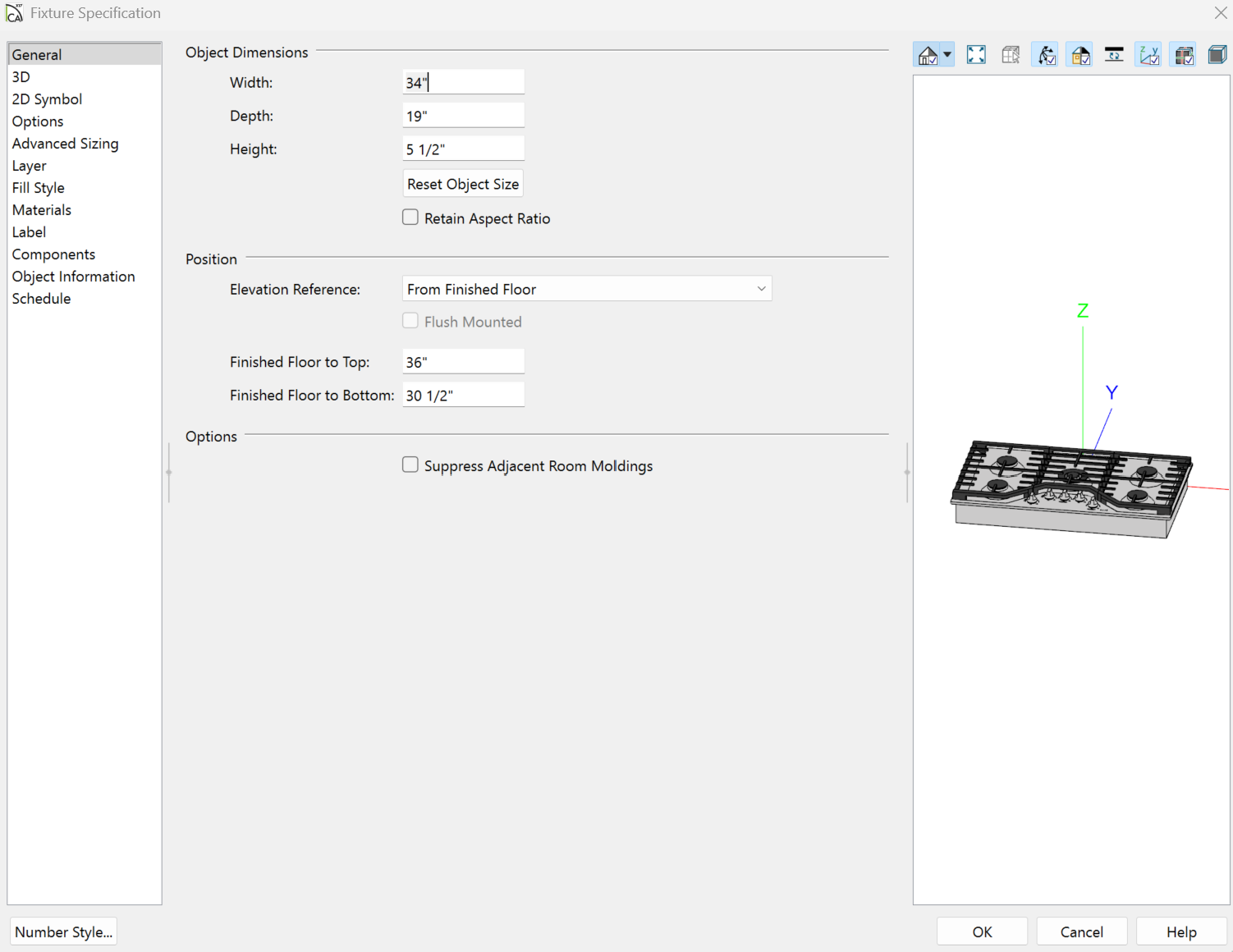

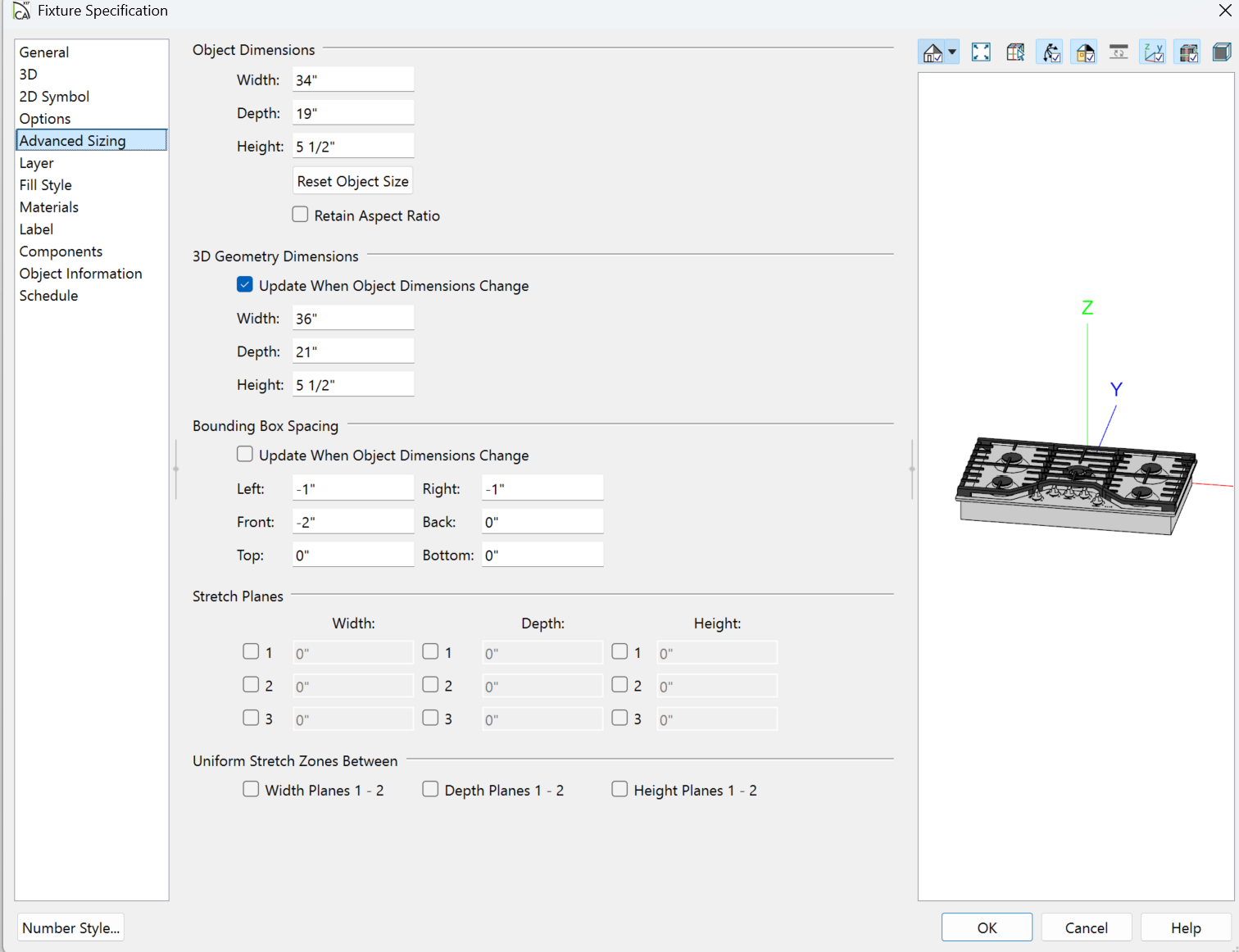

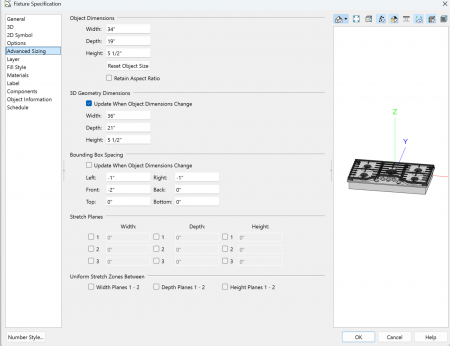

Breeze_Design Posted Sunday at 07:59 PM Share Posted Sunday at 07:59 PM (edited) I've imported a cad symbol for a 36" gas cooktop - it looks good but I can't figure out why its sitting above the counter. What setting do I need to change to get it drop drop into the countertop? Edited Sunday at 08:22 PM by Breeze_Design typo as usual !! Link to comment Share on other sites More sharing options...
Solution GeneDavis Posted Sunday at 08:22 PM Solution Share Posted Sunday at 08:22 PM It's Z-position. Open that 3D panel. Fool around with it, you'll figure it out. 1 Link to comment Share on other sites More sharing options...

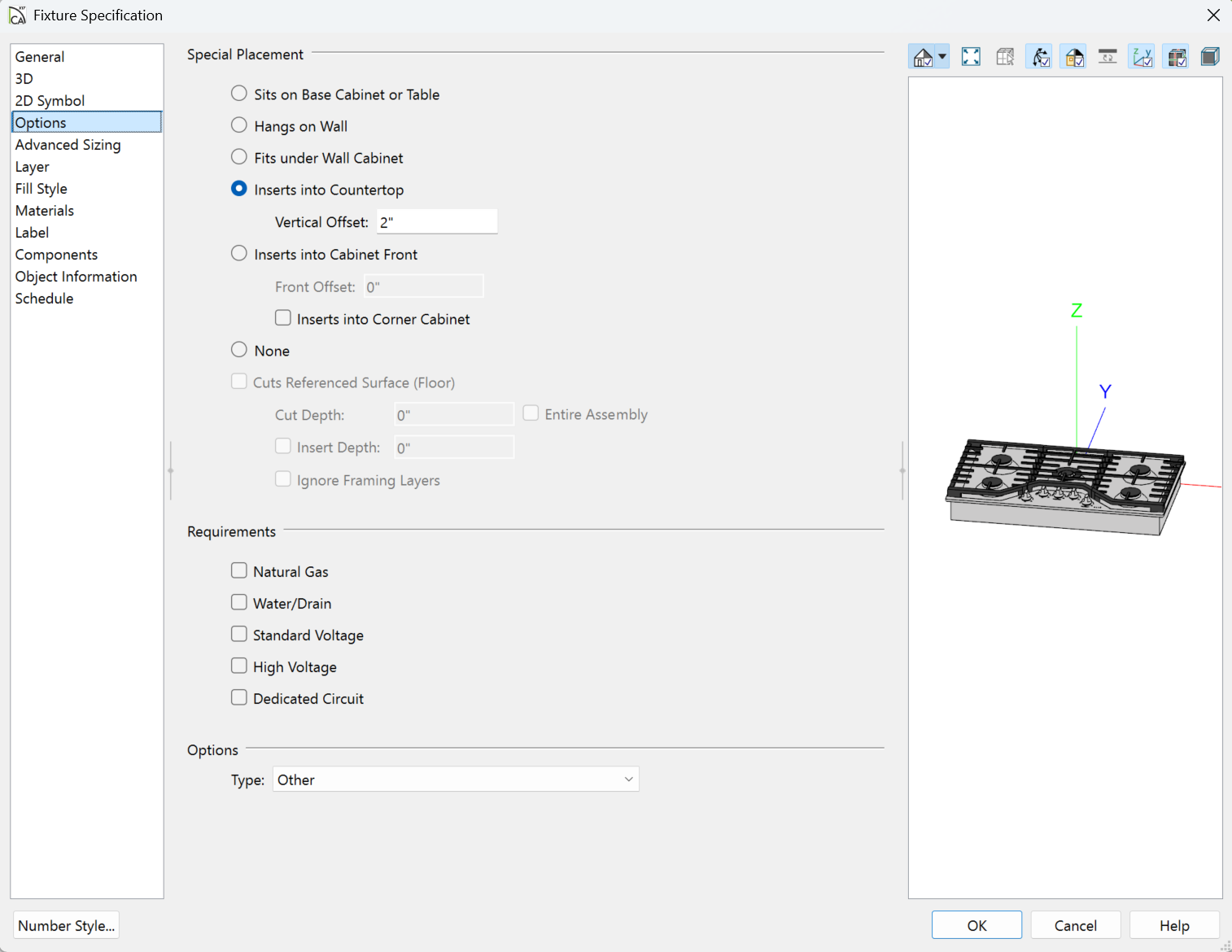

DBCooper Posted Sunday at 10:30 PM Share Posted Sunday at 10:30 PM Gene's solution is how you had to do it in older versions. You don't need to mess with the 3D data anymore. Under "options", you already have "inserts into countertop", now all you need to do is set the "vertical offset" to something more appropriate, like -3". You have it set to float 2" above the countertop currently. Link to comment Share on other sites More sharing options...
