Electrical Outlets display on Wall Framing Details

[BDG2244]

Hello Chief Community!



I am trying to show electrical outlets within the Wall Details that are generated with the wall framing. I have 'Electrical' checked to display on the Active Layer Set, but nothing shows.



Is it possible to have outlets displayed on these details? I appreciate your insight!



Using X17

[Joe_Carrick]

No, This is a special CAD Detail automatiallly generated by the software that only includes framing members.



The electrical outlets can only be displayed on a wall elevation, not on a wall detail.  I think it would be cool if they could but it's not possible at this time.

[BDG2244]

Thank you for the clarification Joe - I will look at creating wall elevations to show the electrical

[DefinedDesign]

On 9/2/2025 at 12:22 PM, Joe_Carrick said:

The electrical outlets can only be displayed on a wall elevation, not on a wall detail.

I would use this feature for every build!  I could use it today!

[tommy1]

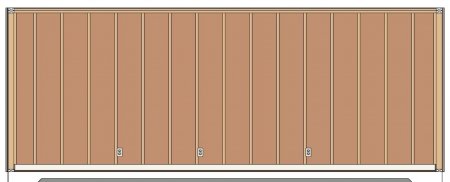

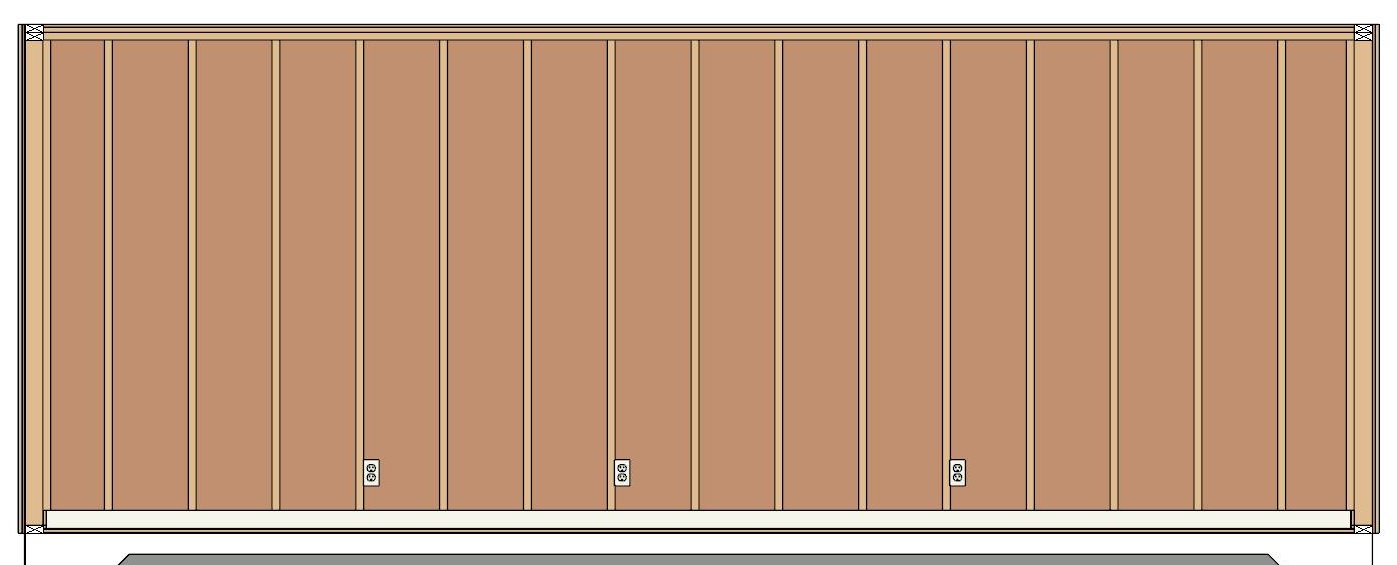

Here is a work around option if it would help. Once you have your electrical done, make a copy of the plan. Open the copy and change the wall types to not have drywall. Be sure to frame the wall or walls. Take a render or elevation and see what you get. My image is an elevation.
