Roof Trouble

[ChiefUserLars12]

Working in Chief Home Designer and can't get the roof correct. It's a mess. Can someone help?

Edited September 23 by ChiefUserLars12

[Hammer7]

Sure post the plan or reach out.



[joshuanyambisa]

Reach out joshuanyambisa14@gmail.com

[ChiefUserLars12]

https://drive.google.com/file/d/1tWq1VdclnUmv_C9pkHoTnoLF9PuO8MpT/view?usp=share_link

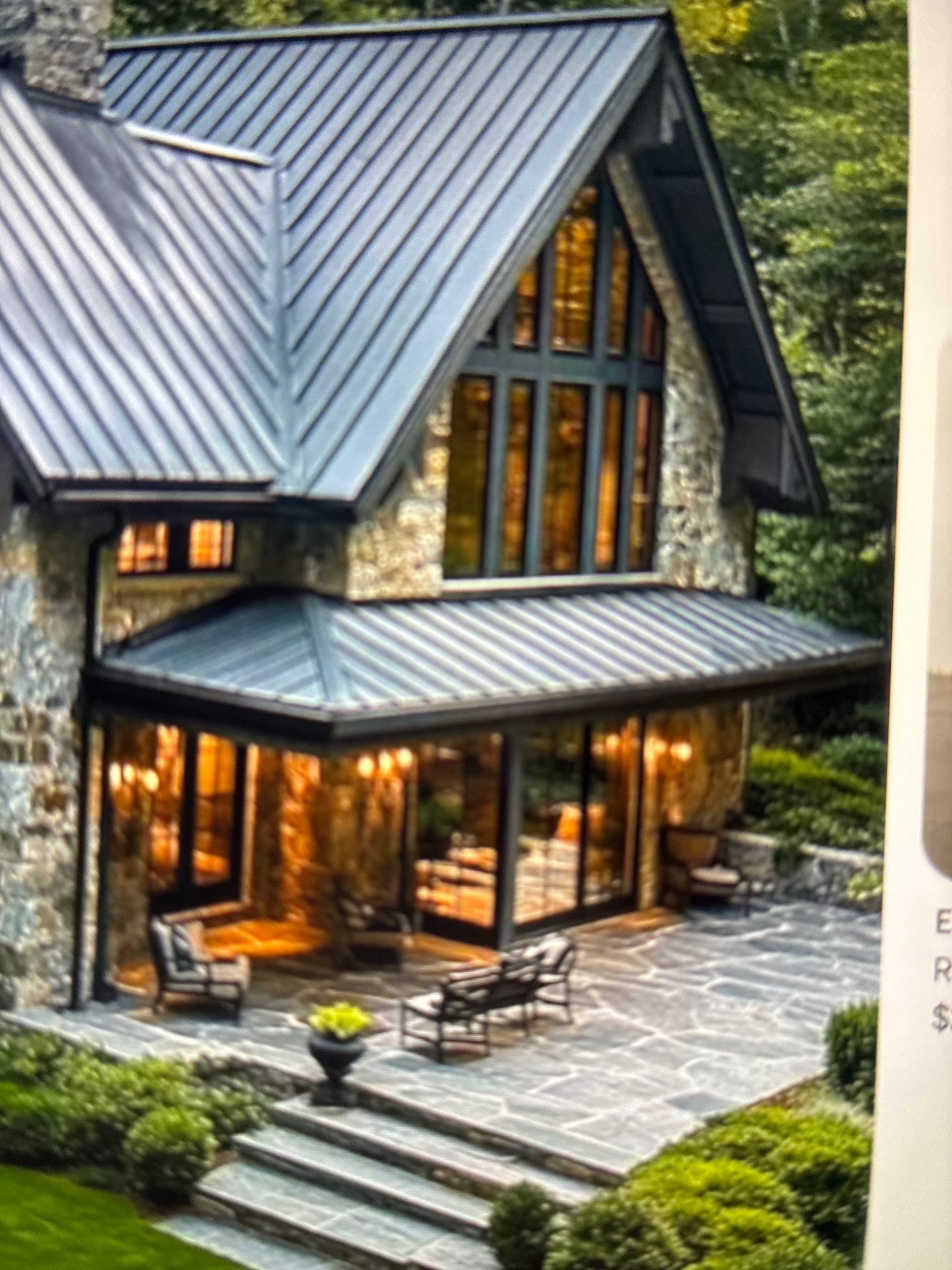

Here is a link to the plan file. I am happy to hire for help. I would like an A-frame roof with the pitch on the front gable taller than the right-side wing (over the Master bedroom). I have a picture of what I want it to look like.

[Mark3D]

Did your get your roof working your floorplan does not lend its self to the roof you want,  the master bedroom wing is to wide or living area is to narrow so i thing you might need to reconfigure your floorplan

I have attached a plan with roof base line controlling the roof to show what might be required

Future Sandbox 092026Mark.zip

[Ameliabrown]

Hello,

Thank you for sharing the plan and the reference picture. I'd be glad to discuss this with you and explore the best way to achieve the roof design you're looking for.

I understand that you want a distinctive A-frame roof with a taller pitch over the front-facing gable, while maintaining a lower pitch over the right-side wing above the Master Bedroom. Achieving the right proportions, roof-plane alignment, and seamless intersections will be important to making the finished design look cohesive and consistent with your reference.

I'd be interested in learning a little more about your expectations for the project and discussing the details of the adjustments required.



Please feel free to reach out to me directly at ameliabrown10011@gmail.com so we can discuss the project in greater detail and determine the best way forward.

I look forward to hearing from you.



Best regards,
Amelia Brown
Architectural Design Consultant

[JoeFarmer]

Howdy Mark3D,

I opened up your .plan file from the discussion above.  I have some similar roof issues if you have a few minutes to look at them. This 1st screen shot shows a roof plane where yellow is good and the red part is bad, Shot #2 shows where the red part goes inside that room and the gutter is inside the house. Shot #3 is the outside view. Please let me know if you have thoughts.
