CA_Russell Posted Monday at 09:38 PM Share Posted Monday at 09:38 PM All, We offset the porch walls 1'6" out from the interior walls to add emphasis, and in doing such the 'AUTO-BUILD ROOF' function no longer creates the gable extension back to the main roofline, instead its wrapping around the smaller projection that was added. I have modified the existing room heights to all be 15' and have tried to break wall lines, accordingly. But I'm, still unable to get the roof to look correct. Really hoping to not have to add / learn how to add knee-walls. Any assistance or support is greatly appreciated. Wray-Latest3.pdf shows the prior design, and demonstrates what I'm hoping to achieve with the changes to the design. Ryan Russell Mac OS 26.3 Chief Architect x17 Roof Example.pdf Wray-Latest3.pdf Link to comment Share on other sites More sharing options...

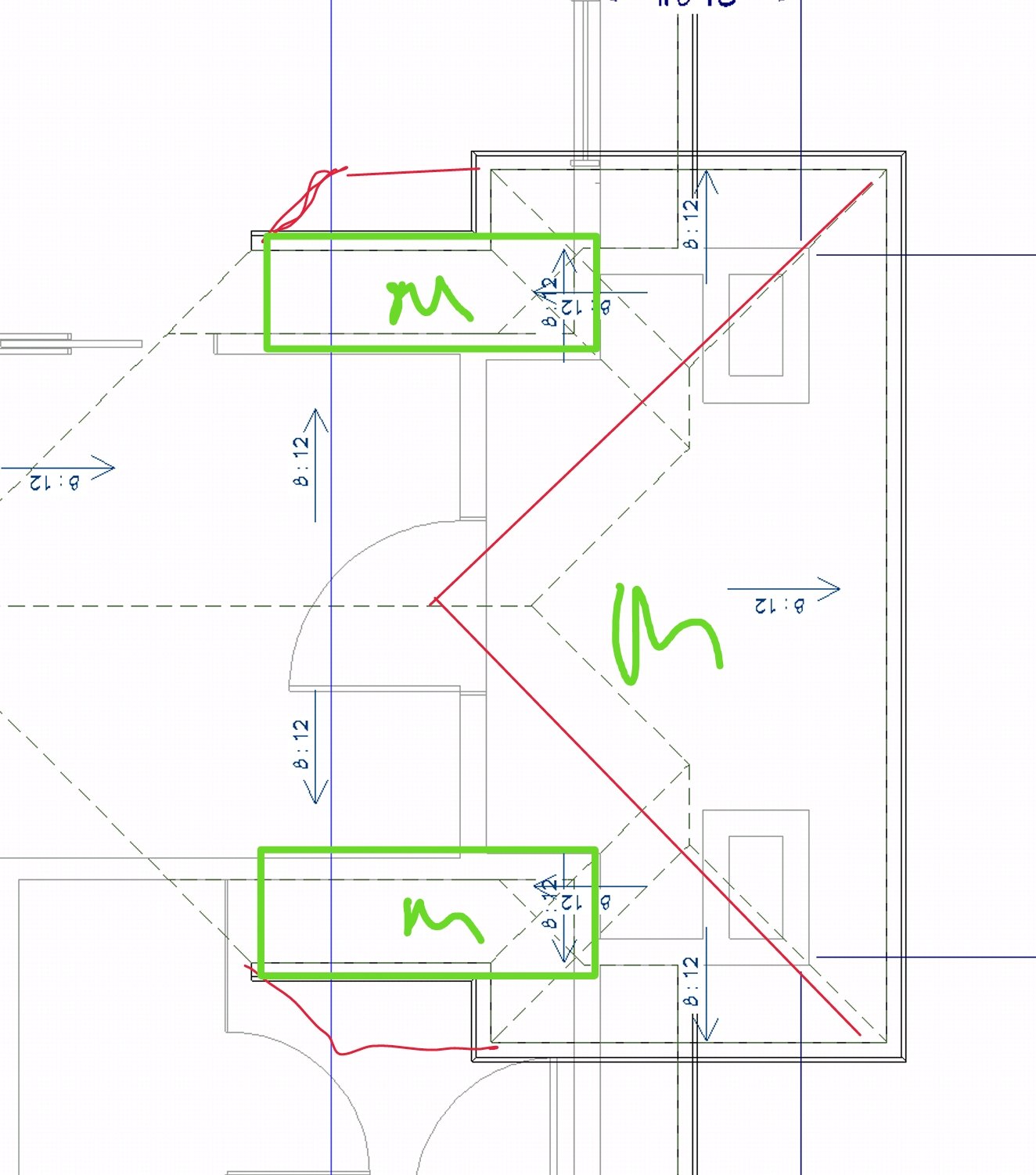

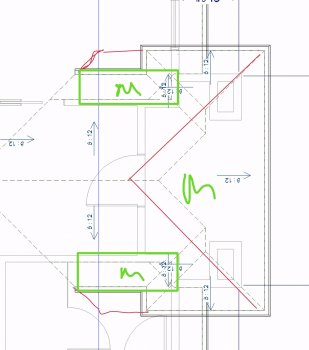

JiAngelo Posted 1 hour ago Share Posted 1 hour ago if the red lines is the roof plane you want then I think you need invisible walls to create the green boxed rooms at a matching height with the porch M. Link to comment Share on other sites More sharing options...
mtldesigns Posted 1 hour ago Share Posted 1 hour ago On 2/23/2026 at 4:38 PM, CA_Russell said: 'AUTO-BUILD ROOF If all else fails, try building it manually. Link to comment Share on other sites More sharing options...
Renerabbitt Posted 10 minutes ago Share Posted 10 minutes ago On 2/23/2026 at 1:38 PM, CA_Russell said: Mac OS 26.3 Chief Architect x17 You can add this info to your signature. Also, Can you please provide your plan with the area in question bubbled Link to comment Share on other sites More sharing options...
