Missing cladding or rear of parapet wall

[PitMan71]

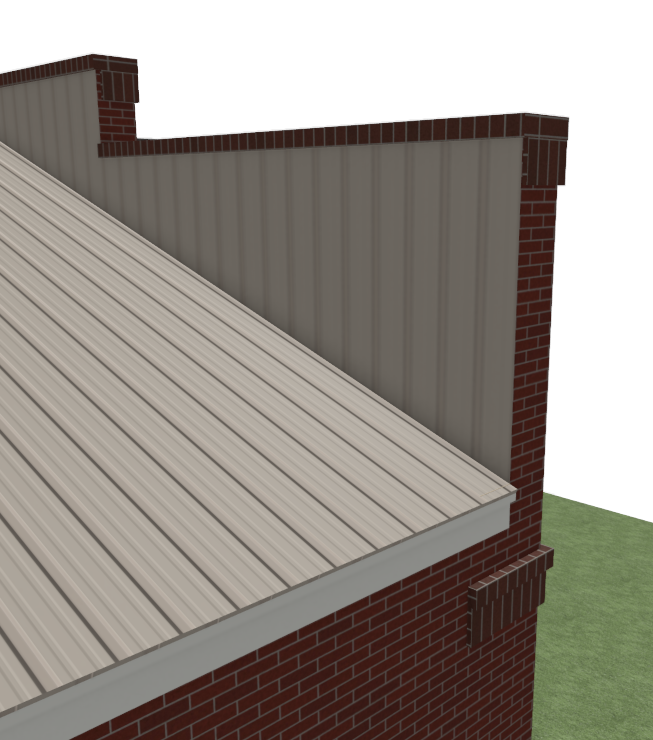

Anyone know how to have chief fill in the cladding on this parapet wall on the rear where the roof knee wall intersects? Or is there a better way to draw this condition? File linked attached. Even zipped this is larger than 14 MB.



      https://www.dropbox.com/scl/fi/bbeynauuhmng7gv37hmiy/24-250025-Connell-X17.plan.zip?rlkey=d5dkdubygrh49bs2qjgxpsrjs&dl=0

[Renerabbitt]

1 hour ago, PitMan71 said:

Anyone know how to have chief fill in the cladding on this parapet wall on the rear where the roof knee wall intersects? Or is there a better way to draw this condition? File linked attached. Even zipped this is larger than 14 MB.



      https://www.dropbox.com/scl/fi/bbeynauuhmng7gv37hmiy/24-250025-Connell-X17.plan.zip?rlkey=d5dkdubygrh49bs2qjgxpsrjs&dl=0

[Chrisb222]

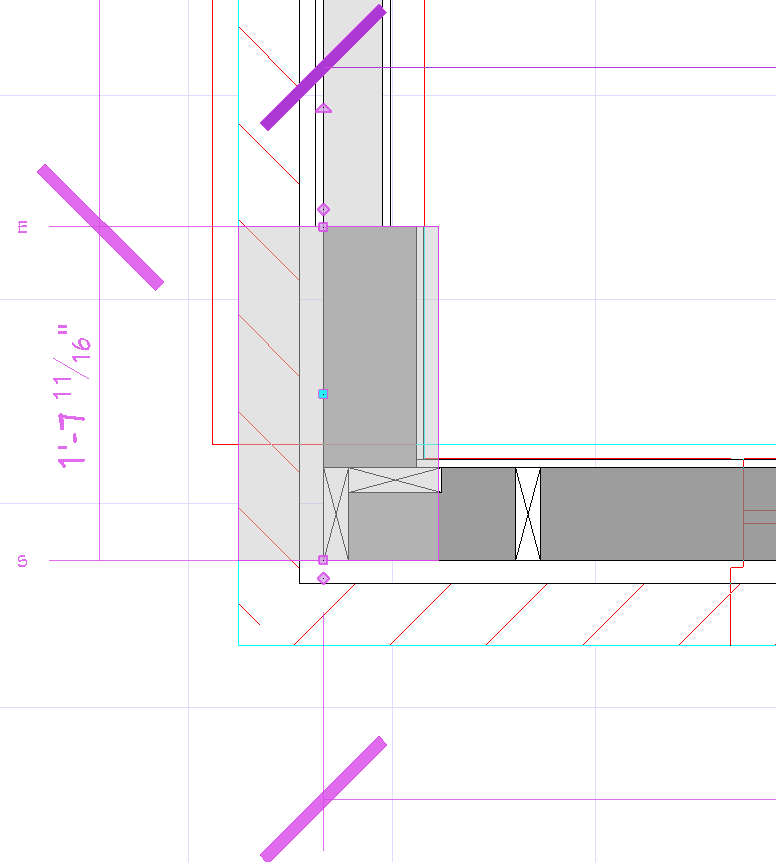

If you make the short wall under the roof the same wall type, brick 6 LBTL parapet, and get rid of the insulation air gap layer in that wall definition, it fills in:





[PitMan71]

1 hour ago, Renerabbitt said:



@Renerabbitt For some reason the video won't play. Says 00:00 long.

[Renerabbitt]

11 minutes ago, PitMan71 said:

@Renerabbitt For some reason the video won't play. Says 00:00 long.

has to be your browser, works on chrome.



[PitMan71]

Thanks for the help everyone. And the short video @Renerabbitt... Some great tips in there.
