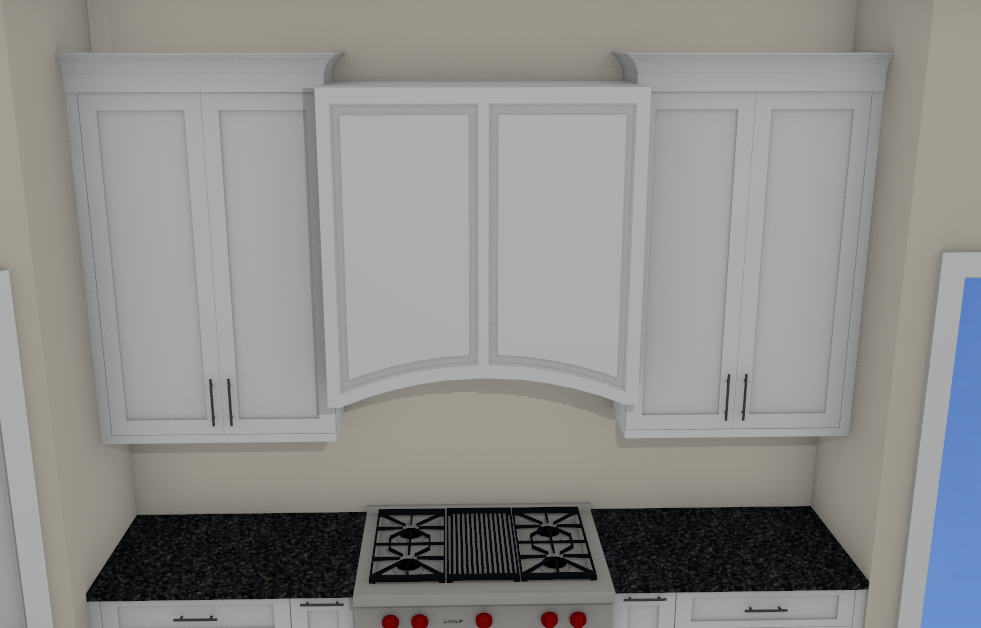

KBEDesign Posted 14 hours ago Share Posted 14 hours ago Is there an easier trick to adding crown molding to a cabinet hood from a catalog? I have used the molding polylines in the past but find it tedious and it never quiet merges correctly with the cabinets on either side. Just wondering if I'm missing something, I've tried copying my moldings from a cabinet with the object dropper as well but that doesn't seem to work. Link to comment Share on other sites More sharing options...

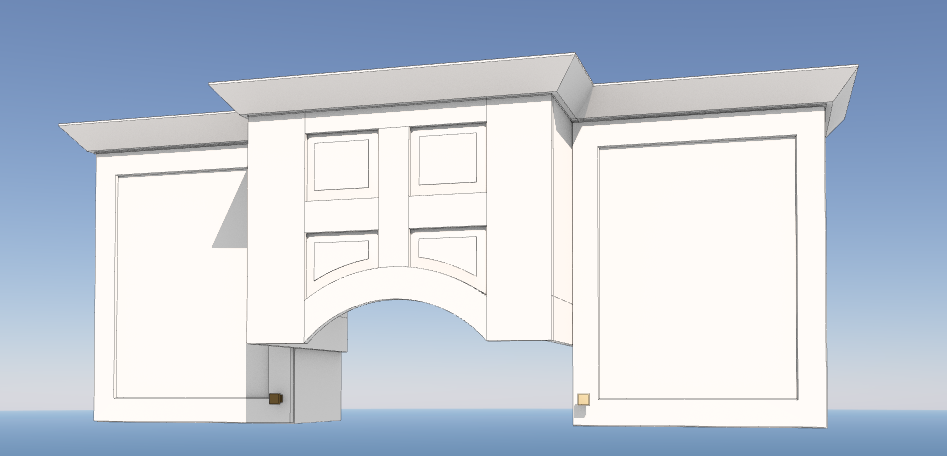

robdyck Posted 12 hours ago Share Posted 12 hours ago Stick a wall cabinet above it. Make it the same size as the hood. Change it's height to zero and maintain the correct top elevation. Link to comment Share on other sites More sharing options...

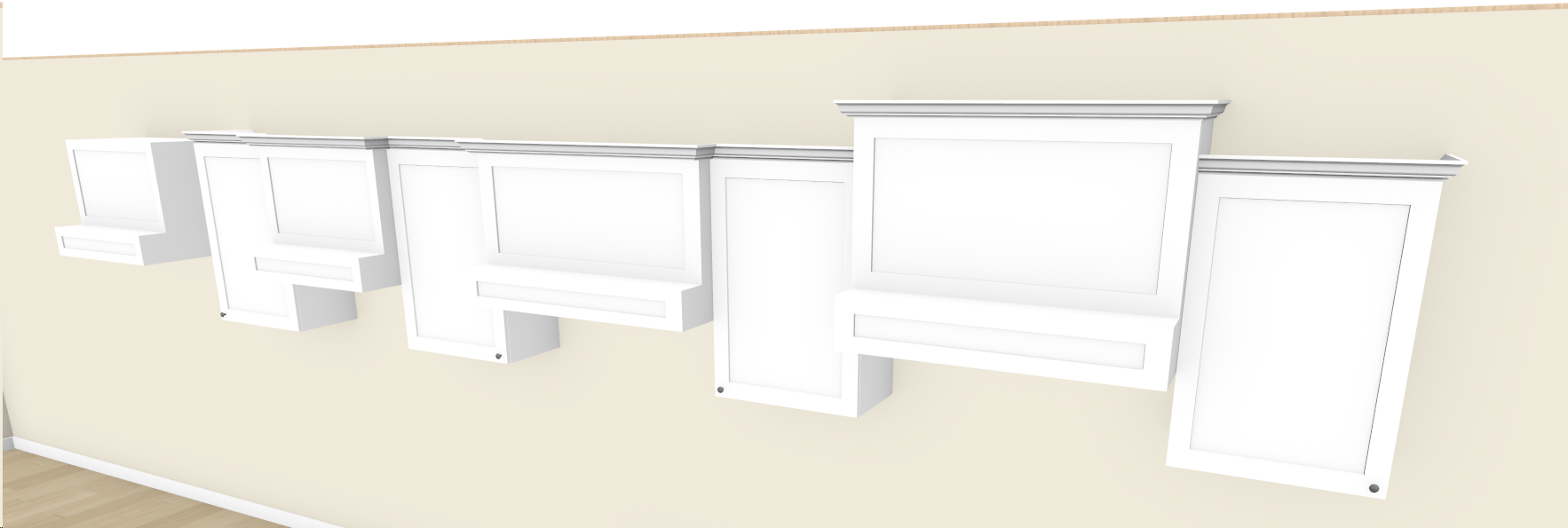

MarkMc Posted 12 hours ago Share Posted 12 hours ago I convert them to a cabinet door symbol. Attached plan with cabinet and door symbol. The Y origin of the new door symbol needs to match the depth of the cabinet you use. Depending on the other settings in the symbol sizing options you can change the cabinet size and the hood will change with it. All 3 of the ones shown use the same door symbol. Hood as cabinet door.zip Link to comment Share on other sites More sharing options...
