rope lights in X17?

[QuickDraw59]

I had a rope light (under-cabinet LED strip type) available in X16.  When I migrated to X17 I can't find it via searching any of the catalogs. It's still listed in the lighting defaults, however.

I've been copy/paste-ing a rope light from designs done before the migration.



Anyone know where the rope light went or if it was re-named?



Thanks

[DBCooper]

There is a "rope light" tool where you can draw your own rope light just like you can draw moldings.  You should find it with the rest of the electrical tools.



As far as what's in the core libraries, I don't remember seeing anything that was called a rope light in the core libraries.  If you take a look under architectural>lighting>cabinet, I only have 5 different lights but that is all I think I had in the older versions as well.  Not sure what all is in the bonus libraries since I haven't bothered with most of them.  Maybe you could post a picture or plan of what you are looking for and someone might recognize it?



Edited Saturday at 03:34 PM by DBCooper

[robdyck]

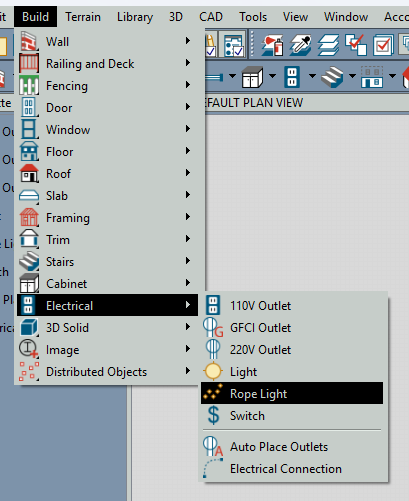

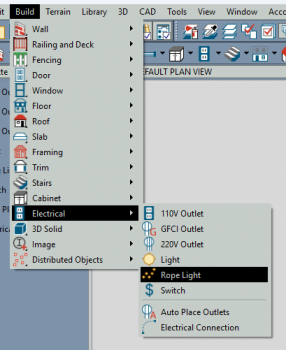

If you don't have the Electrical parent and/or child tools visible on your tool bar, you can also access the rope light tool by clicking on the Build menu at the top.

Build>Electrical>Rope Light.

[QuickDraw59]

Thanks guys, I forgot about the electric parent/child option. That's where I had ordinally found it, then on a subsequent project was thinking I had found it the lighting catalogs!
