builtright3 Posted Tuesday at 09:45 PM Share Posted Tuesday at 09:45 PM Hello, I cant figure out how to center the glass with the post for this windscreen. Any help would be much appreciated. Link to comment Share on other sites More sharing options...
DBCooper Posted Tuesday at 11:50 PM Share Posted Tuesday at 11:50 PM How did you make it? If you are using a pony wall with a railing on top that has a panel, then it should be centered by default. One way I know to get the panel to be outside the posts would be to offset the posts horizontally so they miss the panel but not sure if that is what you did. Link to comment Share on other sites More sharing options...

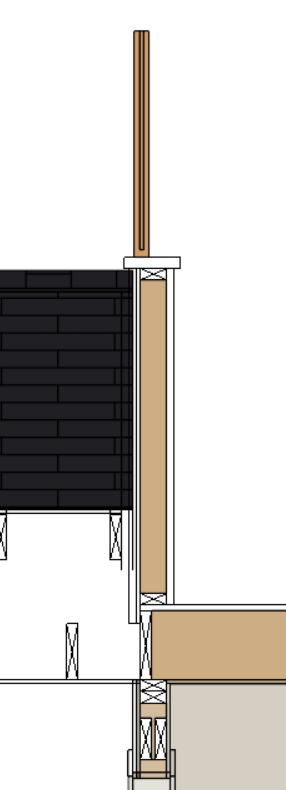

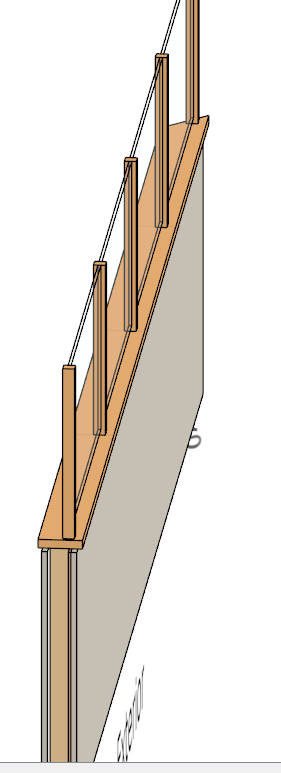

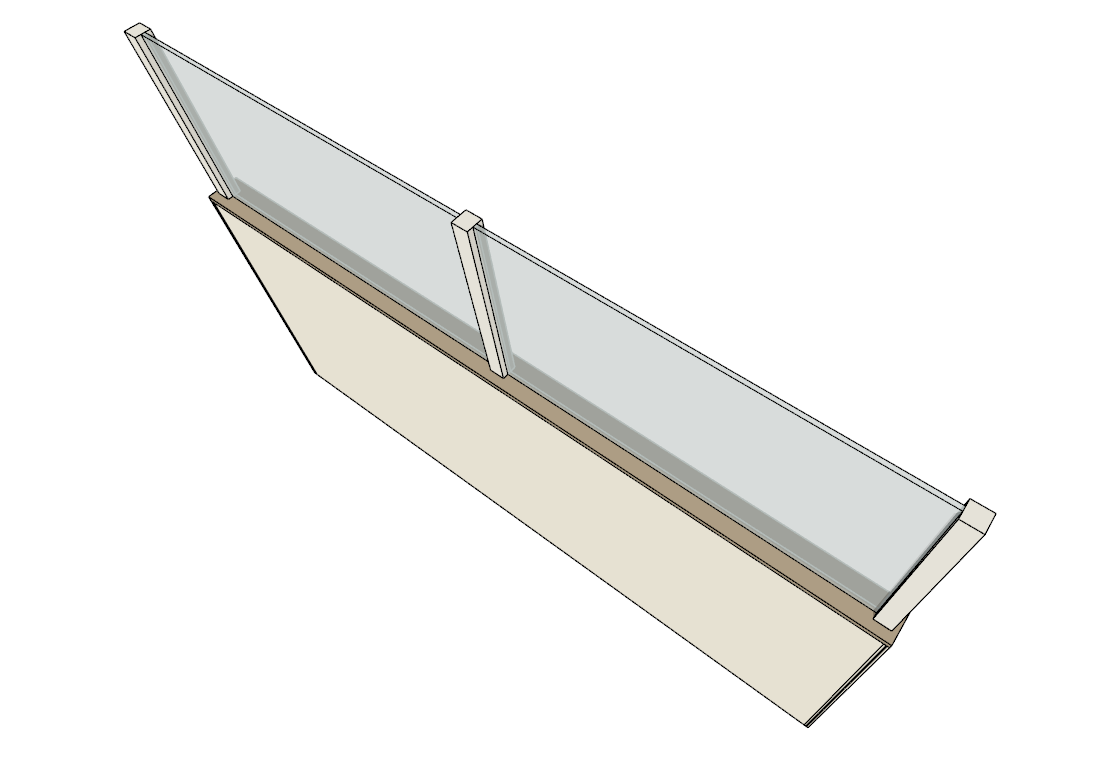

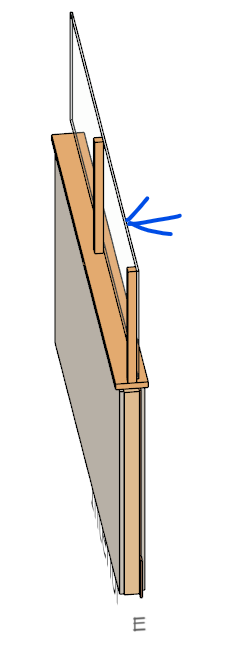

builtright3 Posted Wednesday at 12:51 AM Author Share Posted Wednesday at 12:51 AM Yes, you are exacly right, I offset the panel thinking the post would go with it but I cant get the post to center on the bottom wall for some reason. Link to comment Share on other sites More sharing options...
DBCooper Posted Wednesday at 12:57 AM Share Posted Wednesday at 12:57 AM Looks like maybe you offset the entire railing? See if you set anything for the "horizontal offset" on the "rail style" page. If it's not that, then you might want to post your plan. Link to comment Share on other sites More sharing options...
builtright3 Posted Wednesday at 01:08 AM Author Share Posted Wednesday at 01:08 AM Yes, of course. Here is my plan file. You will also see Im having issues with one of the corners. Thank You Untitled 1.zip Link to comment Share on other sites More sharing options...
builtright3 Posted Wednesday at 01:16 AM Author Share Posted Wednesday at 01:16 AM I dont know whay I did not see this before Link to comment Share on other sites More sharing options...

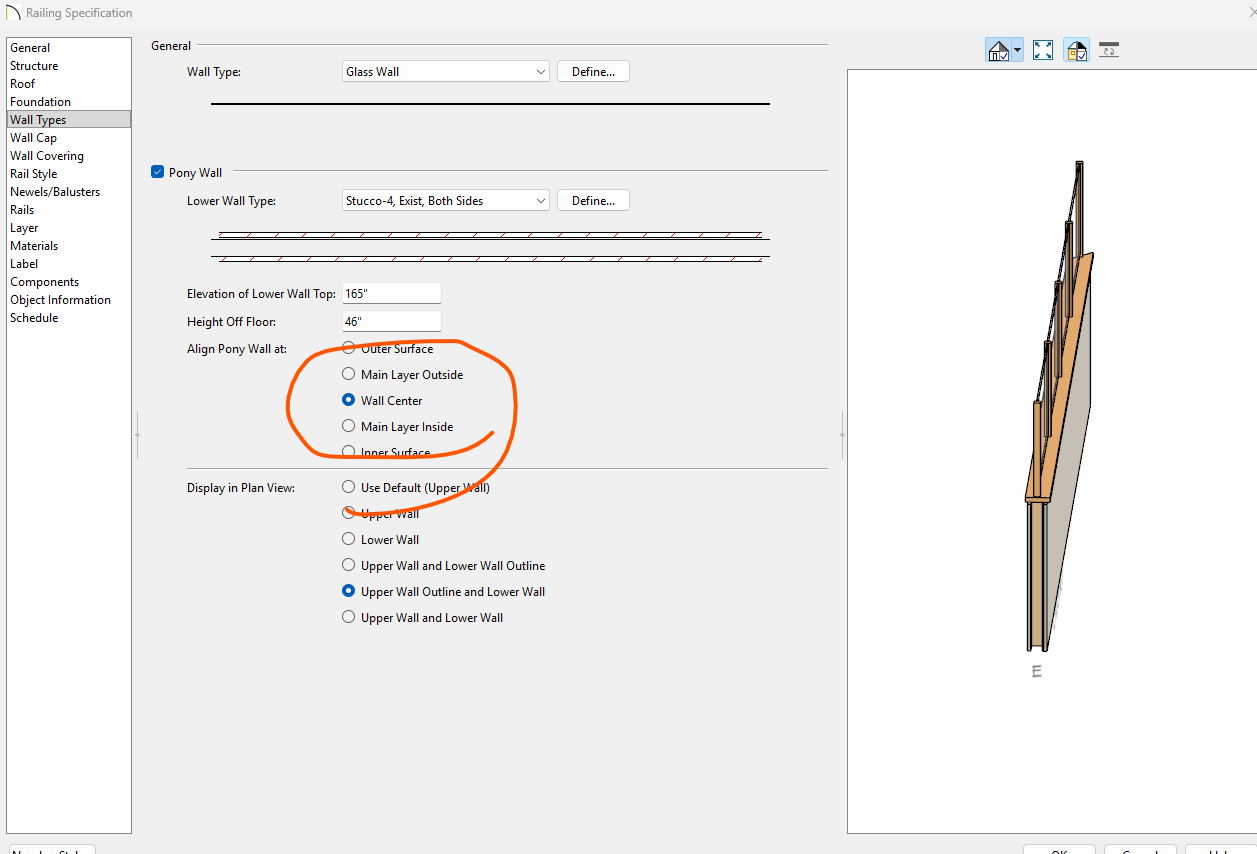

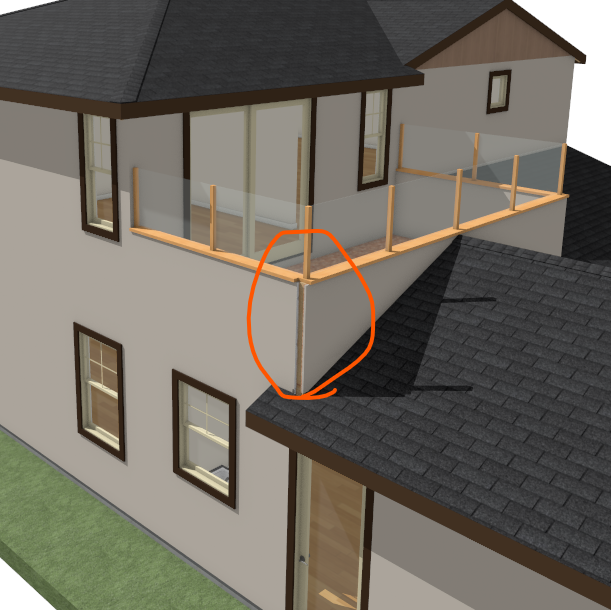

builtright3 Posted Wednesday at 01:22 AM Author Share Posted Wednesday at 01:22 AM While you have my plan would you mind looking at the outside corner for me? When I bring the roof to the wall it breaks the corner. Link to comment Share on other sites More sharing options...
builtright3 Posted Wednesday at 04:09 PM Author Share Posted Wednesday at 04:09 PM This kind of stuff drives me nuts. I usually find out it has to do with wall alignment, invisible walls or just how walls are structured. Most of the time I figure it out but this one has got me stumped.Untitled 1.zip Link to comment Share on other sites More sharing options...

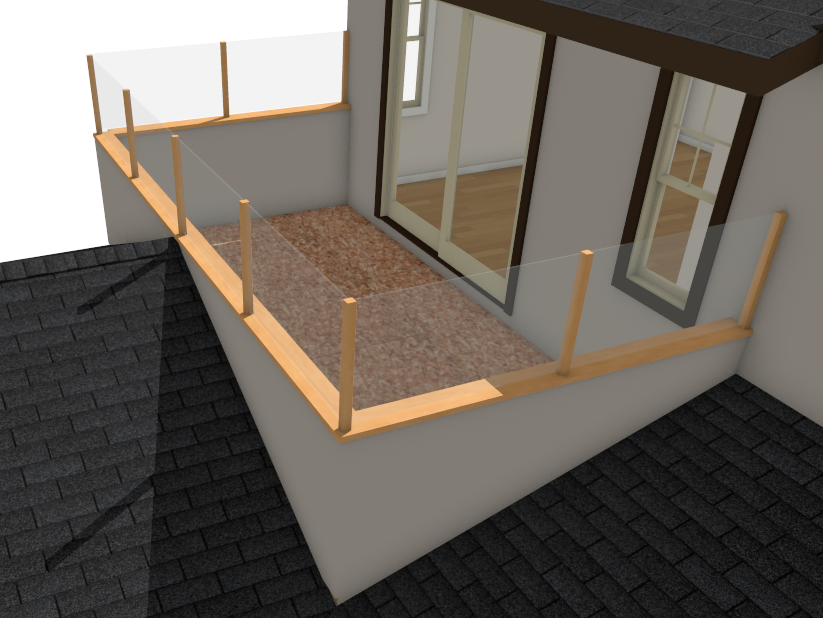

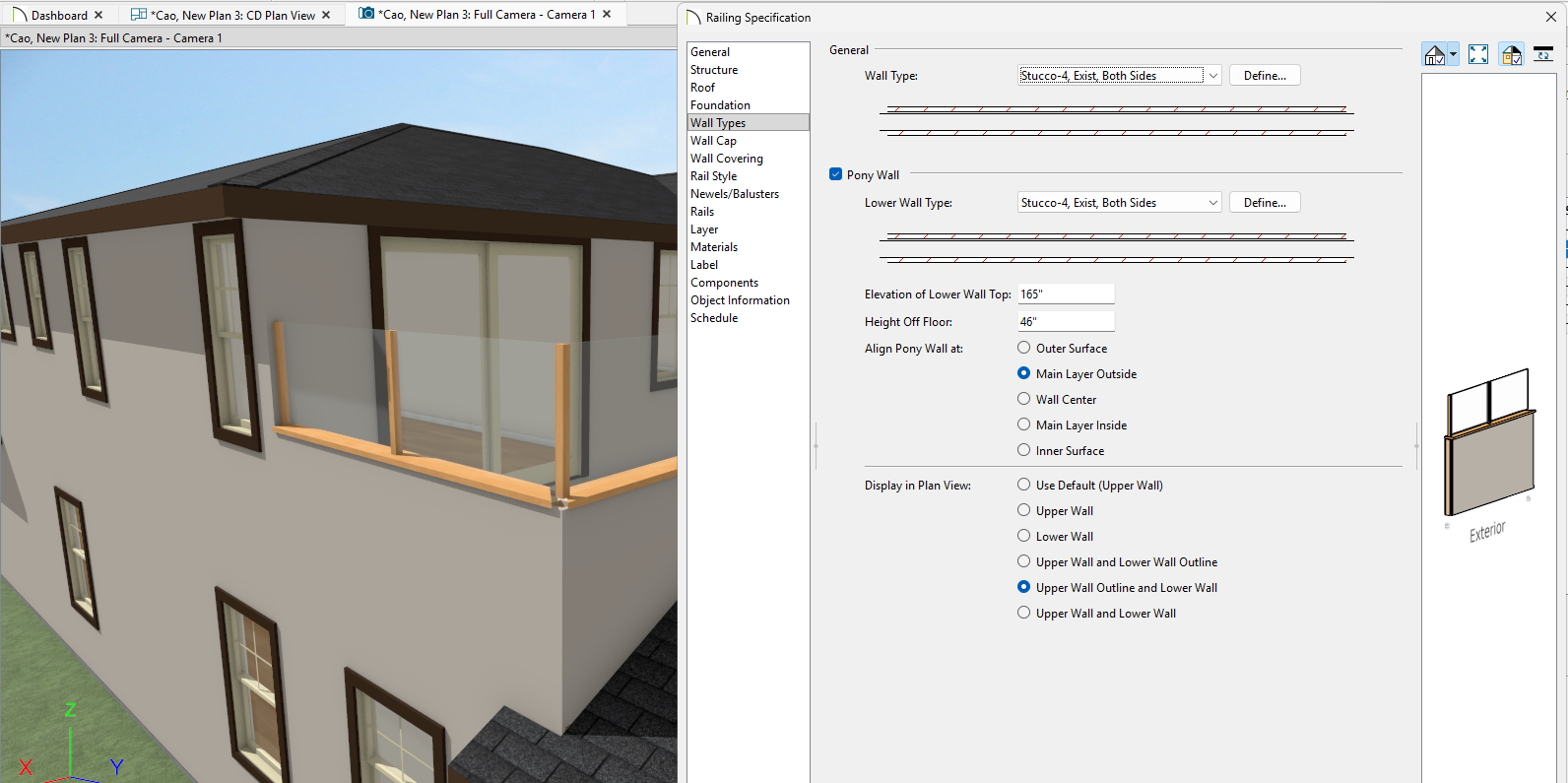

ChiefTylerL Posted Wednesday at 07:01 PM Share Posted Wednesday at 07:01 PM @builtright3 It appears that these walls are trying to use the upper wall type (Glass Shower) to create this intersection, which will cause problems because the Glass Shower Wall Type is a single thin layer. I think the approach I'd take here instead is to still use the Pony Wall, set the Upper and Lower Wall Type to be "Stucco-4, Exist, Both Sides", and then paint the panel of your railing panel with the glass material. The Wall Cap seems to be a bit odd, which I haven't looked into, but it might be easier at this point to remove the Wall Cap from the Wall Specification and manually draw one in using the Molding Line tool. I have attached an image of what that looks like. Link to comment Share on other sites More sharing options...

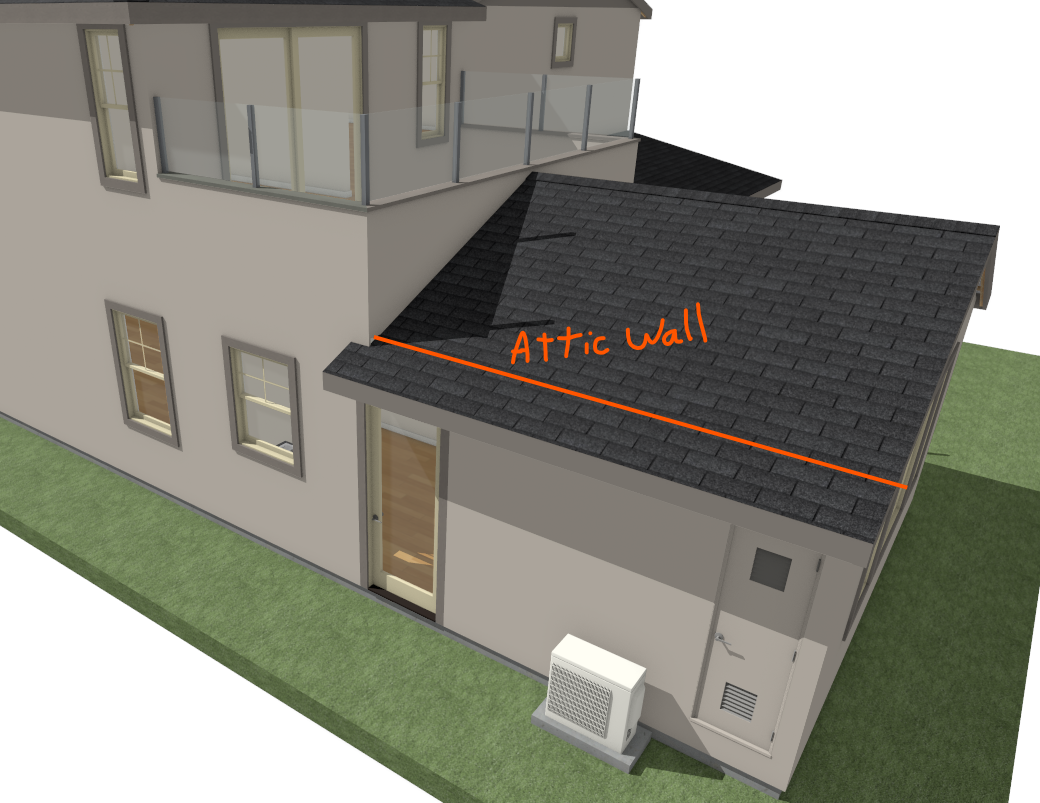

builtright3 Posted Wednesday at 07:38 PM Author Share Posted Wednesday at 07:38 PM 31 minutes ago, ChiefTylerL said: @builtright3 It appears that these walls are trying to use the upper wall type (Glass Shower) to create this intersection, which will cause problems because the Glass Shower Wall Type is a single thin layer. I think the approach I'd take here instead is to still use the Pony Wall, set the Upper and Lower Wall Type to be "Stucco-4, Exist, Both Sides", and then paint the panel of your railing panel with the glass material. The Wall Cap seems to be a bit odd, which I haven't looked into, but it might be easier at this point to remove the Wall Cap from the Wall Specification and manually draw one in using the Molding Line tool. I have attached an image of what that looks like. The roof somehow got off from one side to the other and it was generating an attic wall along this line and was affecting the corner of the railing wall. I just figured it out now and thought I better post it. Thank you all very much for all the help. Link to comment Share on other sites More sharing options...
