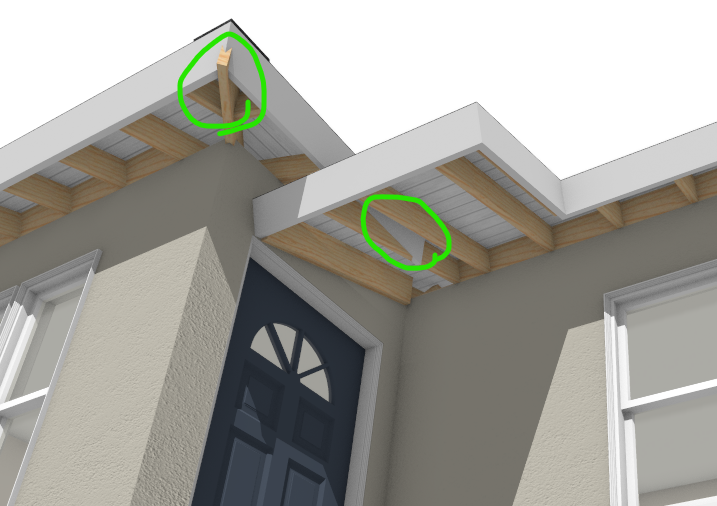

builtright3 Posted August 29 Share Posted August 29 Two Issues: Hip rafter is sticking out I would like the fascia to over lap the roof sheeting instead of going through These items I can do a work around and fix but shouldnt it be automatic? Any help would be apreciated. PLAN IS ATTACHED Bertha Plan.zip Link to comment Share on other sites More sharing options...
PitMan71 Posted August 30 Share Posted August 30 Well it's not a perfect solution, but assign a square profile to the rafters in the roof dbx. THEN you might need to pull the hip rafter back from the edge an inch or two. I have to do that whenever I do open rafter tails..... I am not a fan of hacky solutions like this, but it is what it is. The fascia board sticking through is because the intersected roof isn't trimming the fascia board at an angle like it would be in real life. Im thinking on a solution for this. Link to comment Share on other sites More sharing options...
builtright3 Posted September 1 Author Share Posted September 1 On 8/29/2025 at 8:03 PM, PitMan71 said: Well it's not a perfect solution, but assign a square profile to the rafters in the roof dbx. THEN you might need to pull the hip rafter back from the edge an inch or two. I have to do that whenever I do open rafter tails..... I am not a fan of hacky solutions like this, but it is what it is. The fascia board sticking through is because the intersected roof isn't trimming the fascia board at an angle like it would be in real life. Im thinking on a solution for this. Thank you sir, I apreciate your imput. Link to comment Share on other sites More sharing options...
GeneDavis Posted September 1 Share Posted September 1 Chief framing ain't good in roof overhangs. If I am doing 3D for renders, I turn off all framing. 2D framing plans, and CAD details plus edited section views (CAD to view is perfect for this!) get the job done. Link to comment Share on other sites More sharing options...
builtright3 Posted September 1 Author Share Posted September 1 41 minutes ago, GeneDavis said: Chief framing ain't good in roof overhangs. If I am doing 3D for renders, I turn off all framing. 2D framing plans, and CAD details plus edited section views (CAD to view is perfect for this!) get the job done. Yes, I agree, Thank you for that. Link to comment Share on other sites More sharing options...
