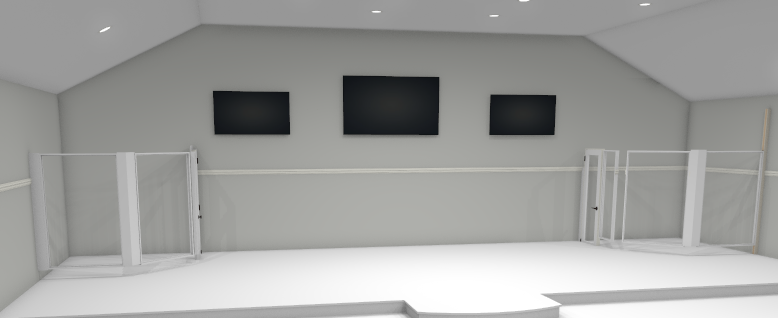

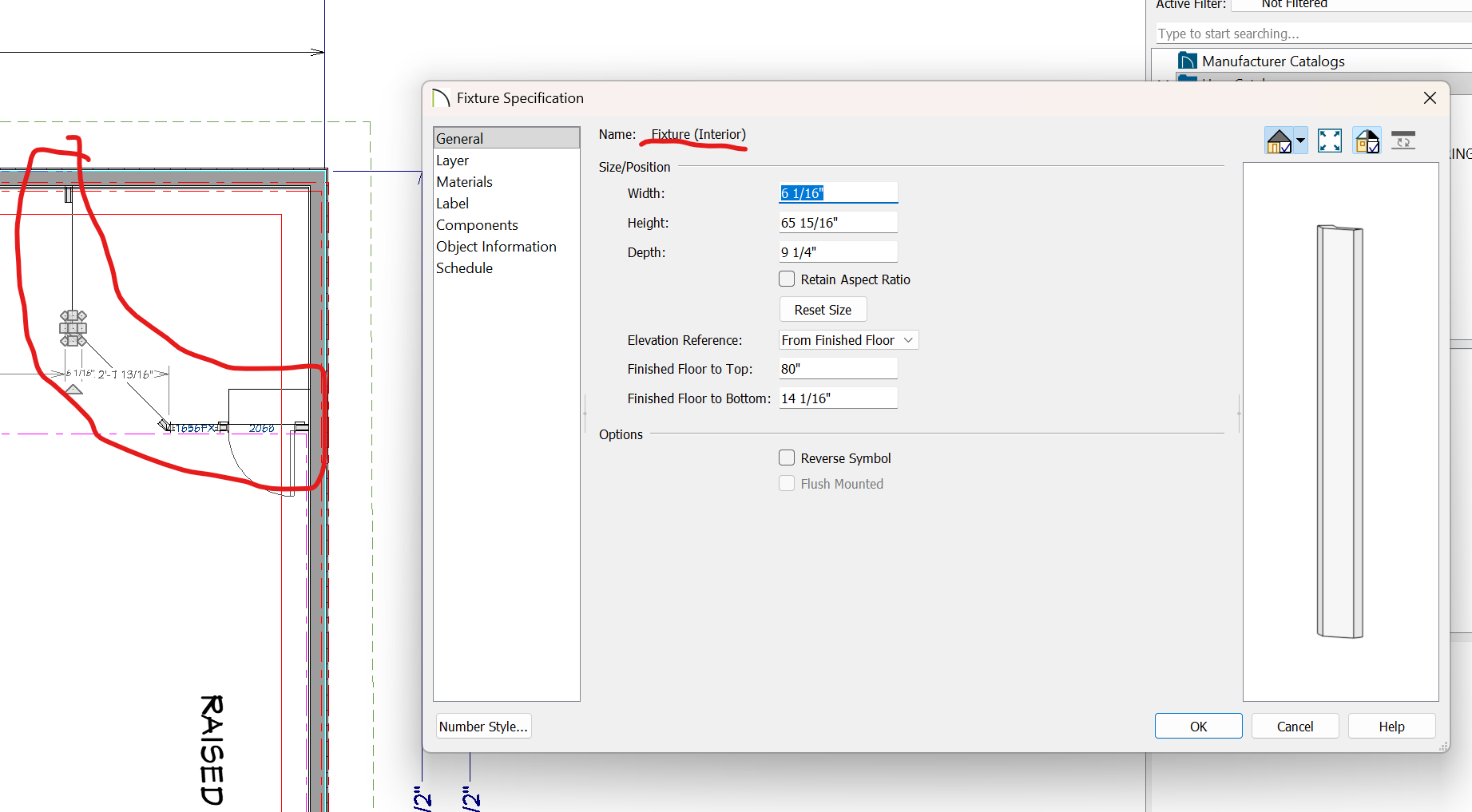

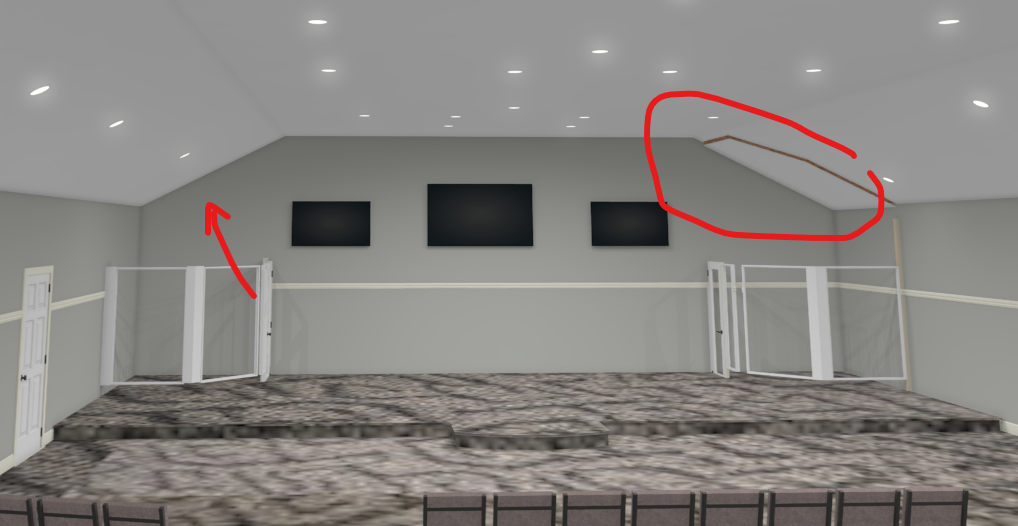

Evolution Posted 4 hours ago Share Posted 4 hours ago I need to fix the ceiling anomaly that appeared when I attempted to create a room within a room. In order to model the drum pits (there is one on the left and one on the right, I had to use a wall type I created, but after drawing the walls, they would not show in plan view even though I had their layers turned on in my working plan. So finally in order to build the drum pits, I created 3D solids shaped to the angles. it was the only way I could even come close to having the walls show in plan. I assigned room def to each and uncheck roof and ceiling over these two areas. After doing so, the outline of the room (drum pit) on the right side, shows in the ceiling, but not on the left hand side. I'm sure it is something simple, but as usual I'm either trying to hard to find it or not hard enough. In order to get the flooring to show I had to covert the polyline back to a regular polyline and assign "material region" to it to show the flooring as the selected carpet. I have one last thing to try and that is to covert the area I have circled in red to a 3D symbol and add it to the Library. ADDITION TO PLC.plan Link to comment Share on other sites More sharing options...

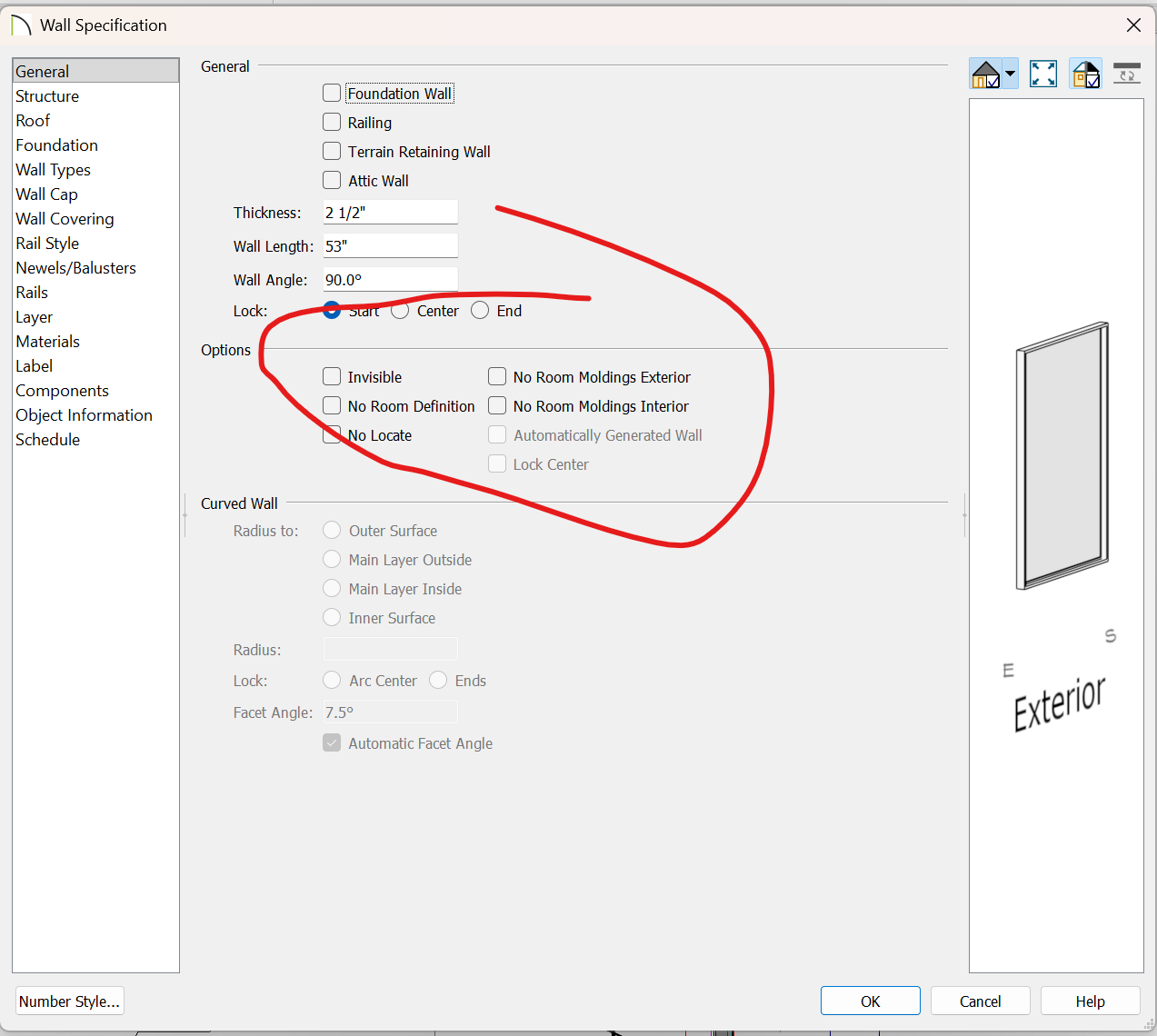

Solution Doug_N Posted 4 hours ago Solution Share Posted 4 hours ago Made one of the walls of a no room definition type. Link to comment Share on other sites More sharing options...
Evolution Posted 4 hours ago Author Share Posted 4 hours ago 8 minutes ago, Doug_N said: Made one of the walls of a no room definition type. Doug, that was too simple! I am curious why the other drum pit didn't exhibit the same issue. Those walls aren't selected as "no room definition". Link to comment Share on other sites More sharing options...
