Cantilevered Dormer

[wowzuh]

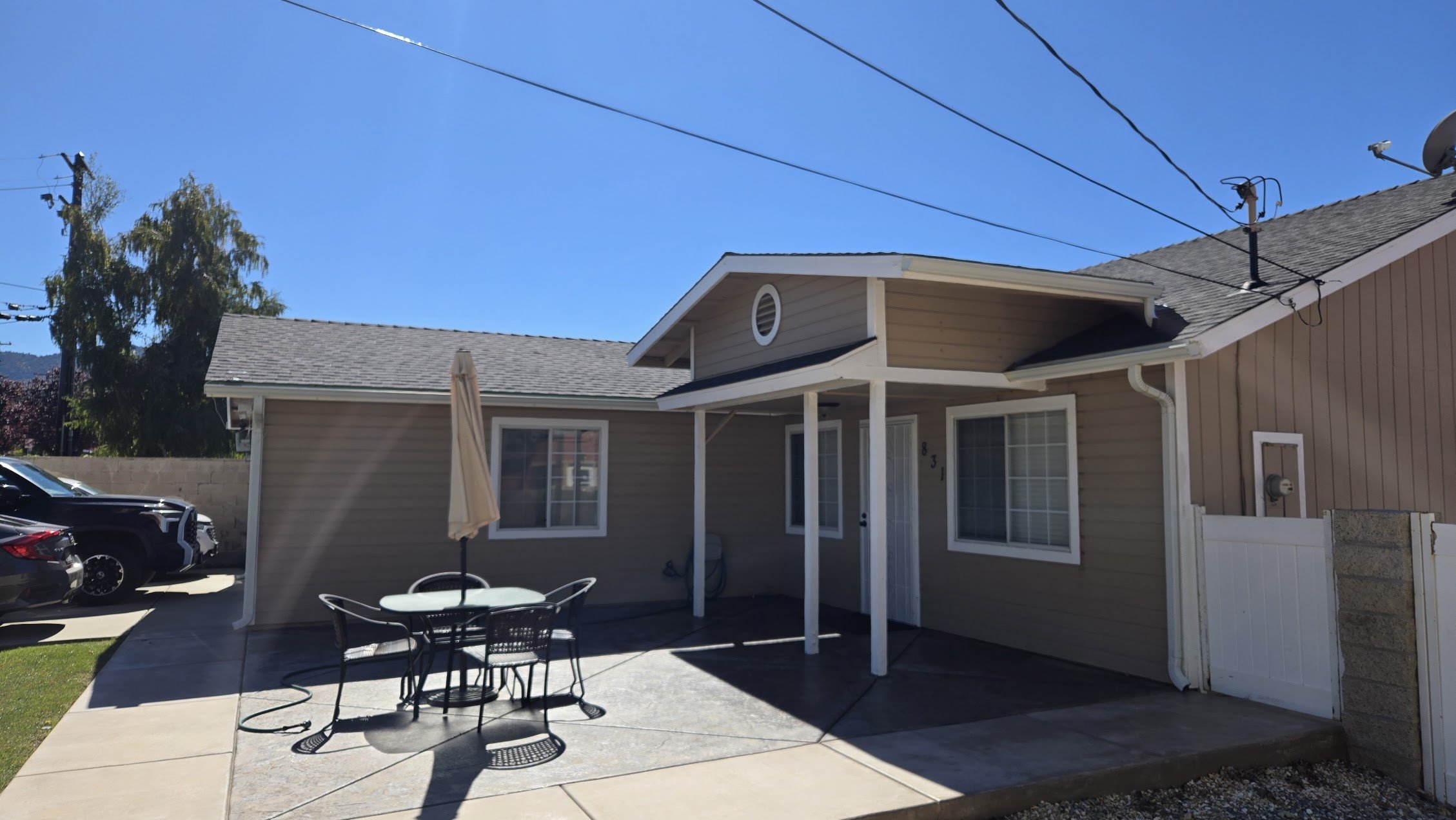

I was wondering if anyone might help me understand how to create a covered porch like the one in the attached.



I've tried to make use of the "Auto Floating Dormer" and "Auto Dormer" tools, and have also tried a combination of the three techniques described here:



• https://www.chiefarchitect.com/support/article/KB-01179/creating-an-attached-porch-or-carport.html
• https://www.chiefarchitect.com/videos/watch/1606/creating-a-screened-porch.html
• https://www.chiefarchitect.com/videos/watch/1529/creating-a-false-gable-or-decorative-dormer.html



Steve's "How to create a "Cape Cod Style Roof" with 2nd floor cantilever dormer using Chief Architect X12" video is also nearly what I'm looking for.



• https://www.youtube.com/watch?v=xagB-PtaafY



In essence, I'd like to create a decorative, false, cantilevered dormer with a gable roof.  The short walls under the hipped edge/overhang have proven challenging, and I'm struggling to get them to intersect with the main roof.



Any help is appreciated!

Edited Friday at 02:37 PM by wowzuh

[JonathanK]

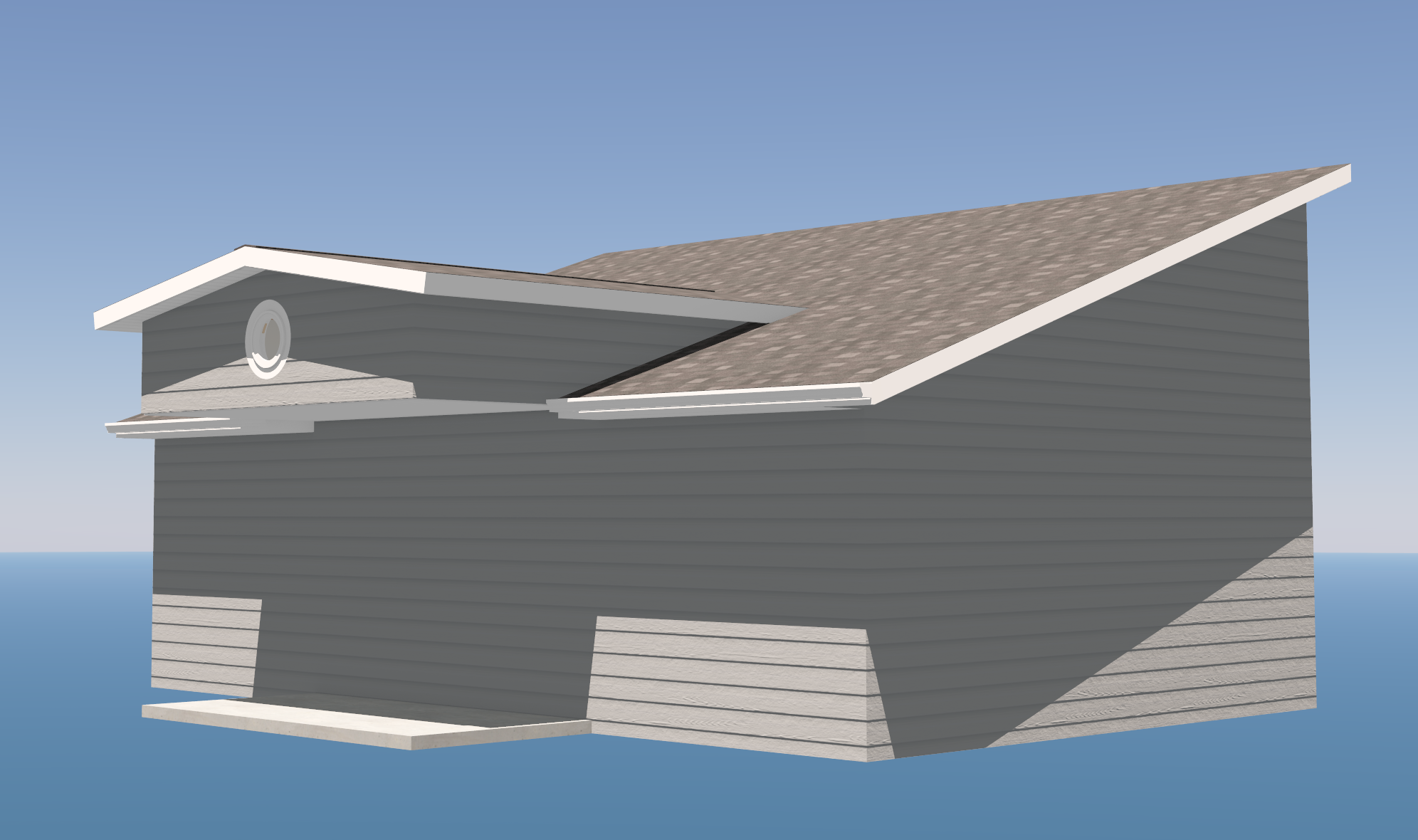

See attached...



It can all be drawn with standard walls in the attic space.  No need to use floating dormers, etc...



Untitled 9.zip

[GeneDavis]

Note the "room" under has a slab floor.  Invisible walls define the porch "room," and the attic walls above have roof directives, the front gabled, the sides not.  It's a no-brainer.

[wowzuh]

Thank you, Jonathan!  I spent some time "interrogating" your file, and appreciate the clean approach.  Very nice!



In the case of an addition--in which the cantilevered structure is added to and atop the existing hip edge--do you have any suggestions or thoughts?  It was in this scenario (i.e., using "Roof Overframing") that I struggled with getting the side walls to merge to the existing roof without portions either disappearing and/or dipping beneath the new, porch ceiling.



Joseph
