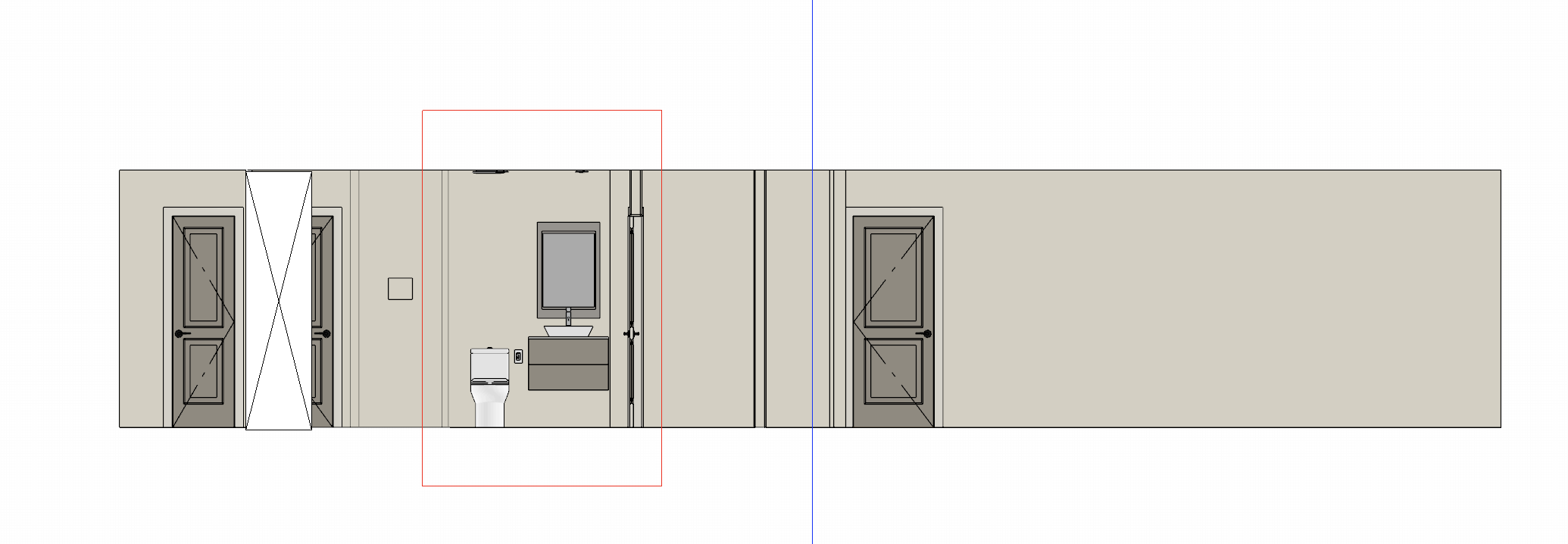

EsteeChief Posted September 22 Share Posted September 22 (edited) Hello everyone, Anyone knows how to activate the elevation camera handles that are not visible? Clip Side doesn't work (yes, I unchecked Room). There are 2 side lines (in plan view) that are very long without handlers> I tried everything already... Never happened in X17... Thanks Edited September 22 by EsteeChief Typo Link to comment Share on other sites More sharing options...
Eric_S Posted September 22 Share Posted September 22 2 hours ago, EsteeChief said: Hello everyone, Anyone knows how to activate the elevation camera handles that are not visible? Clip Side doesn't work (yes, I unchecked Room). There are 2 side lines (in plan view) that are very long without handlers> I tried everything already... Never happened in X17... Thanks Check if the "CAD, Clip Lines" layer is displaying in your elevation view. Link to comment Share on other sites More sharing options...
EsteeChief Posted September 23 Author Share Posted September 23 Thanks for your answer. YES it's displayed. I don't know what else to do... Estee Link to comment Share on other sites More sharing options...
Eric_S Posted September 23 Share Posted September 23 2 hours ago, EsteeChief said: Thanks for your answer. YES it's displayed. I don't know what else to do... Estee You said you don't see any handles in Plan View. That could happen if "Display as Callout" is checked and "Clip Sides" is unchecked. You've maybe already tried this, but just to be clear - You do need "Clip Sides" and/or "Clip Elevation" to see any lines in elevation view. If that doesn't help: * Change the color of the CAD, Clip Lines layer to something other than black? * Could you post a screenshot of the elevation camera specification? (Use "Edit Active View" while in the elevation view or "Open Object" on the camera in Plan View) Link to comment Share on other sites More sharing options...

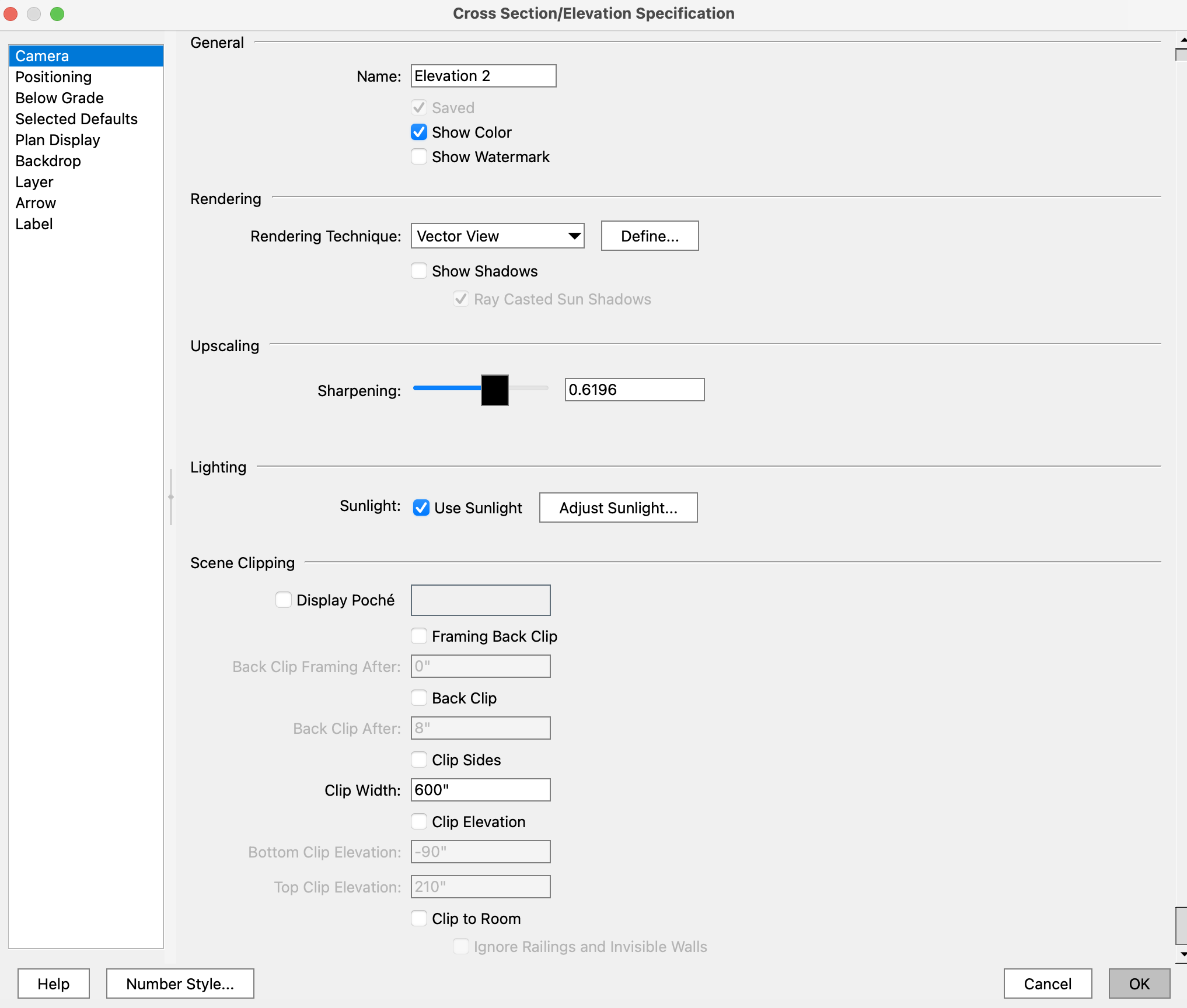

EsteeChief Posted September 23 Author Share Posted September 23 Thanks Eric, So apparently 2 of the 3 I managed to "shrink" by unchecking "Display As Callout". the third elevation wasn't corrected. Attached you'll find the screenshot of the Camera Specification. Thanks again Estee Link to comment Share on other sites More sharing options...
Eric_S Posted September 24 Share Posted September 24 16 hours ago, EsteeChief said: Thanks Eric, So apparently 2 of the 3 I managed to "shrink" by unchecking "Display As Callout". the third elevation wasn't corrected. Attached you'll find the screenshot of the Camera Specification. Thanks again Estee This elevation has Clip Sides unchecked. Clip Width controls how long the handles are in Plan View, but unless Clip Sides is also checked your elevation view will include everything. 1 Link to comment Share on other sites More sharing options...
EsteeChief Posted September 26 Author Share Posted September 26 Thank you thank you thank you Estee Link to comment Share on other sites More sharing options...
