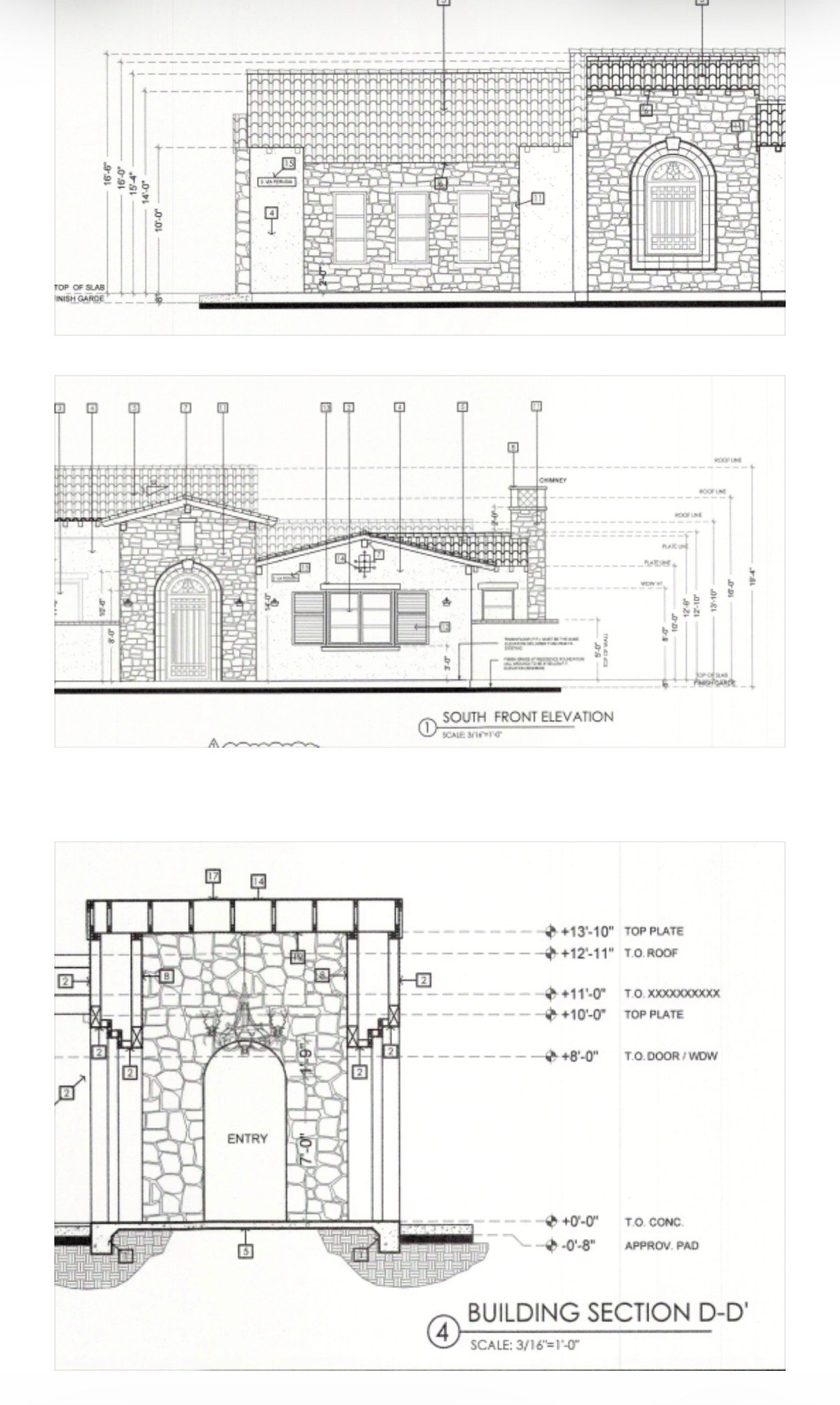

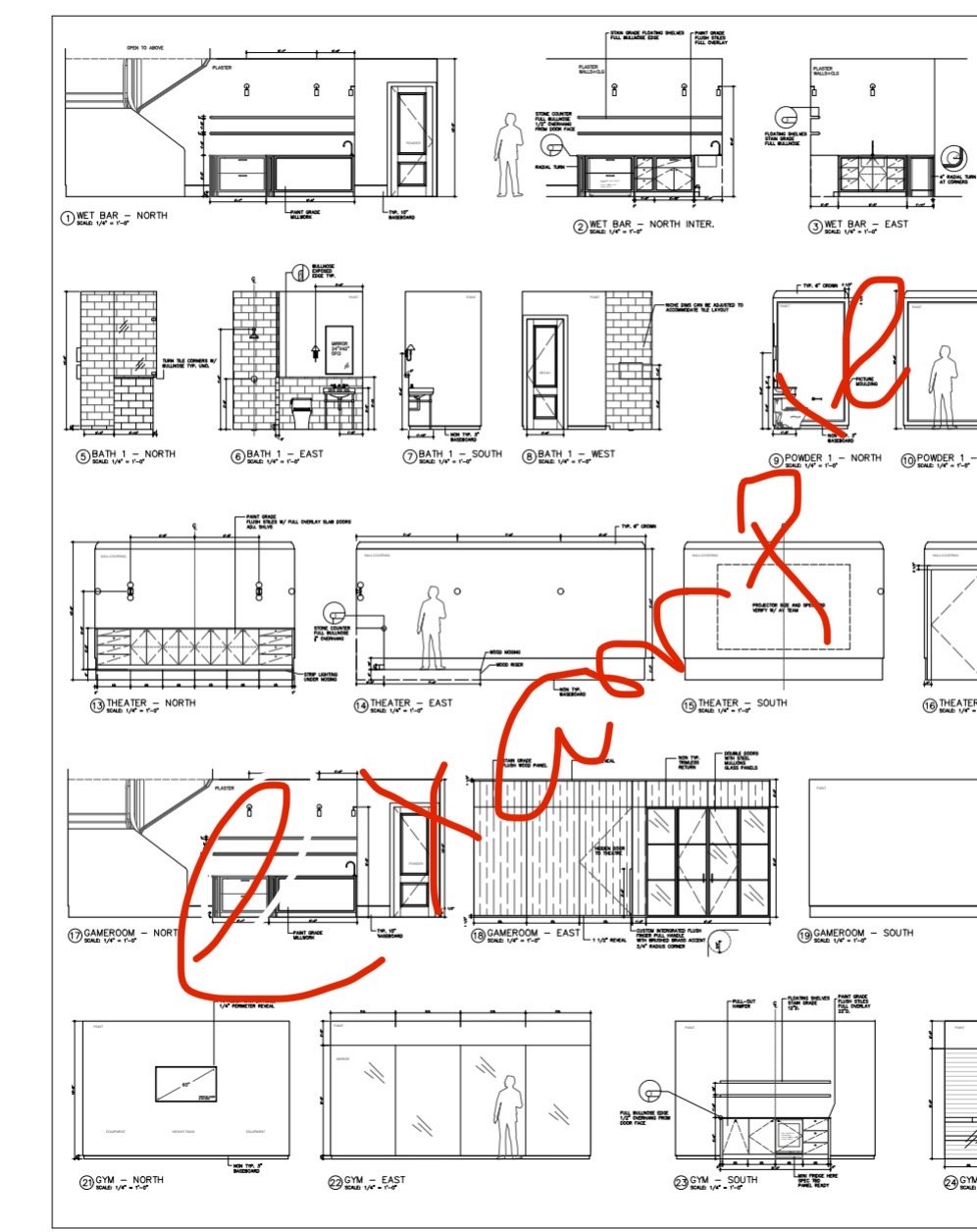

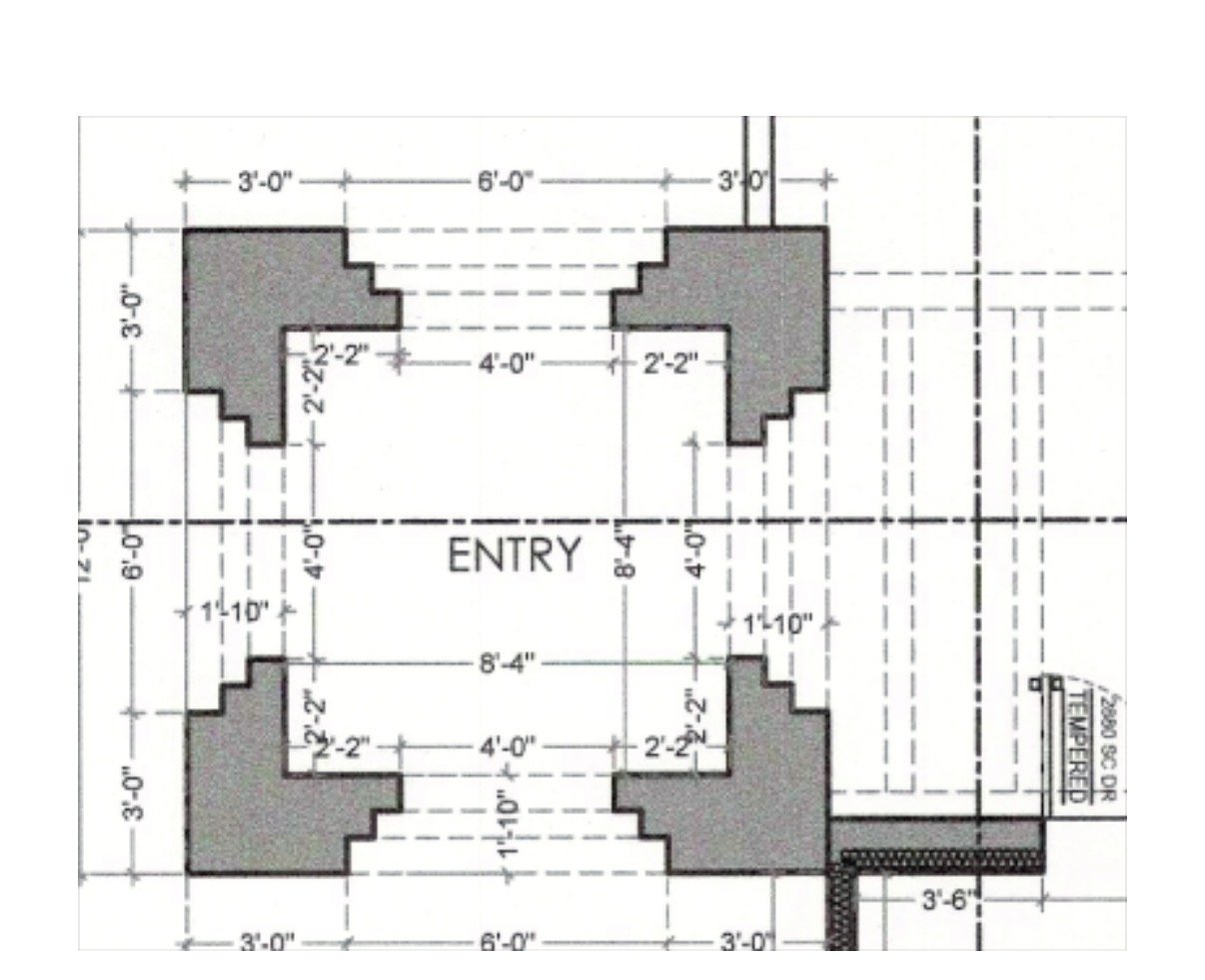

alivinteriors Posted June 17 Share Posted June 17 Hi all, I’ve been working on this plan set forever and I have a few (urgent) questions. It’s been tough: maybe someone can offer some tips… 1. is there a way to automatically create elevations for EVERY room, where it also neatly exports them into a layout sheet? - if so, what layer do I do this in - is there a way to specify labels so my contractors see the labels and coordinating labels in the layout sheet? - what plan set / elevation sets do you find to be the most “clean” and easy re: the look vs what I have referenced below? 2. I have spent hours and hours on this entryway. I just cannot find a solution ie walls aren’t connecting because there are so many doors and windows and it is a furred wall that like goes in layers, nothing is working. Any advice on how to build? Note the plan vs elevation… - lastly, I want to drop the ceiling and incorporate an inset dome. I know how to make a tray ceiling, but not one with a circular, inset dome thank you so much Link to comment Share on other sites More sharing options...

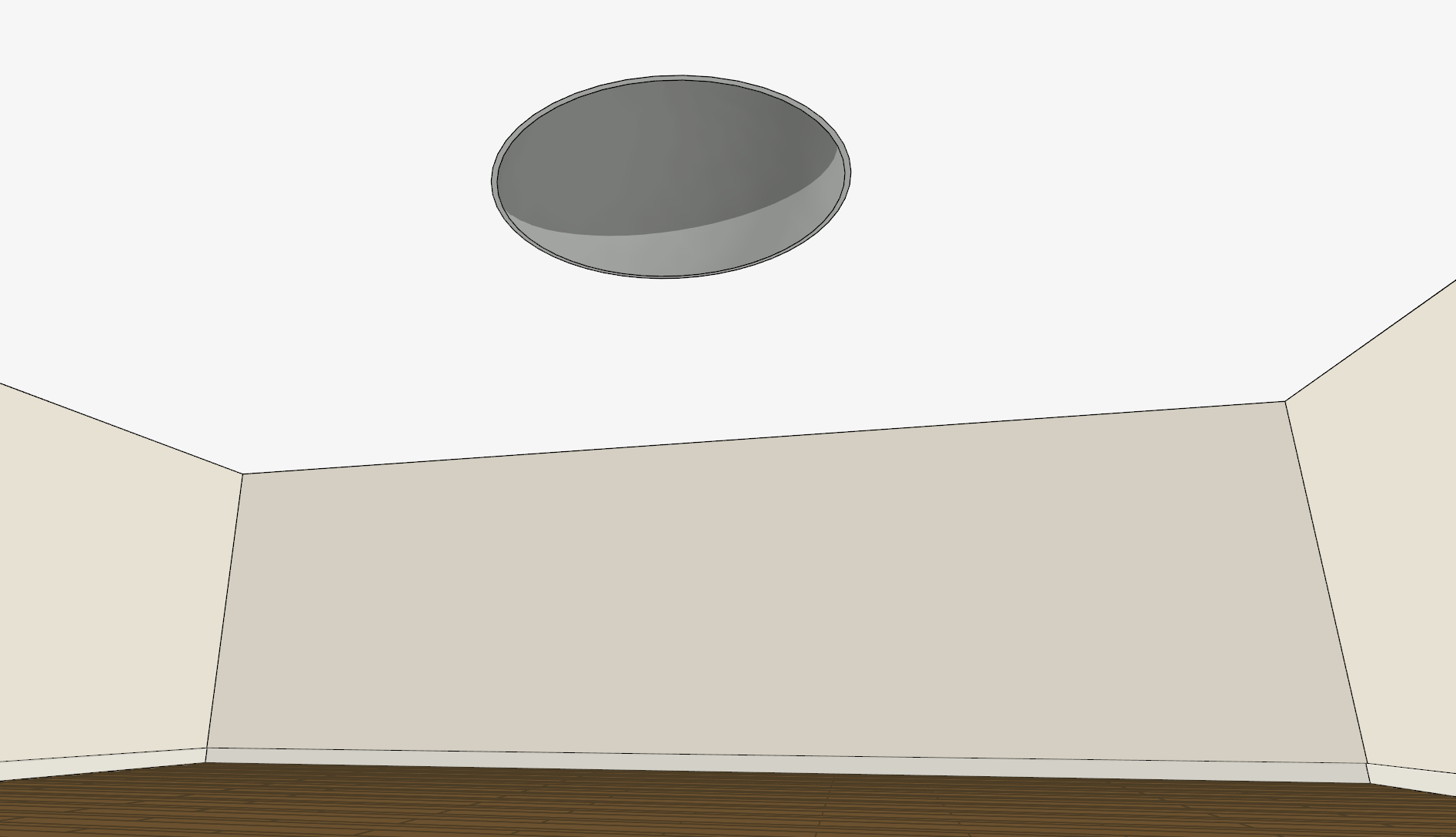

DBCooper Posted June 17 Share Posted June 17 For the dome, I would just create it as a symbol that cuts a hole in the ceiling. I built this one using a 3D sphere, made a smaller copy and then subtracted it out of the bigger one, and then cut it in half by subtracting a larger box. You then convert it into a symbol and set it to be from the ceiling. I used the tool to edit the cutout shape in plan view and used the fillet tool to make the cutout match the circle. All in all, it was easier than I thought. Link to comment Share on other sites More sharing options...
alivinteriors Posted June 17 Author Share Posted June 17 thank you! Link to comment Share on other sites More sharing options...
