Roof Framing Issue

[fcwilt]

Hi,

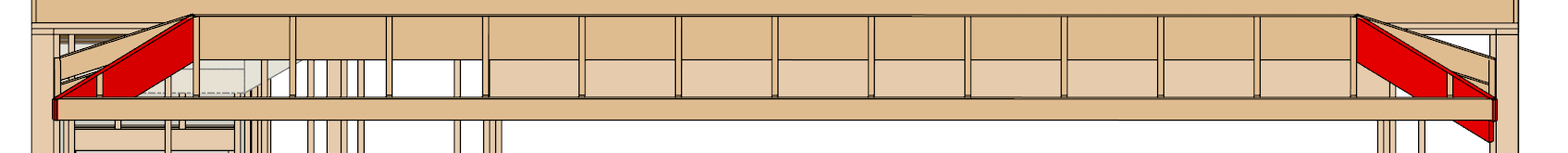

I'm having a problem with roof rafters. See attached.

Notice that on the left the red one has the bottom trimmed to the required height, but the one on the right has not been trimmed.

What causes this? Can it be fixed to generate correctly OR do I have to fix it after generation?

Thanks much.

Frederick



[PitMan71]

Is this roof set for the framing to auto refresh?.... I have run into similar situations before but framing refresh had been turned off. Stretching the hip out and back in again usually fixed it. post your plan if you can so folks can have a look.



ALSO, make sure your roof objects are set to "Trim Framing to Soffits" on the structure panel.

[fcwilt]

Hi.

Thanks for the reply.

I was actually deleting the framing and re-building it but the problem bits appeared again. I was not sure if auto re-build would delete the existing framing or just add new stuff to it.

I did have the correct value for the setting you mentioned.

Adjusting the length of the one on the right did fix it.

However the one behind it also was not trimmed but adjusting it's length didn't work.

For now I overrode the default height of 9-1/4 to 5-1/2 for that one piece, and others like it, and that is fixing them.

Thanks much.

Frederick
