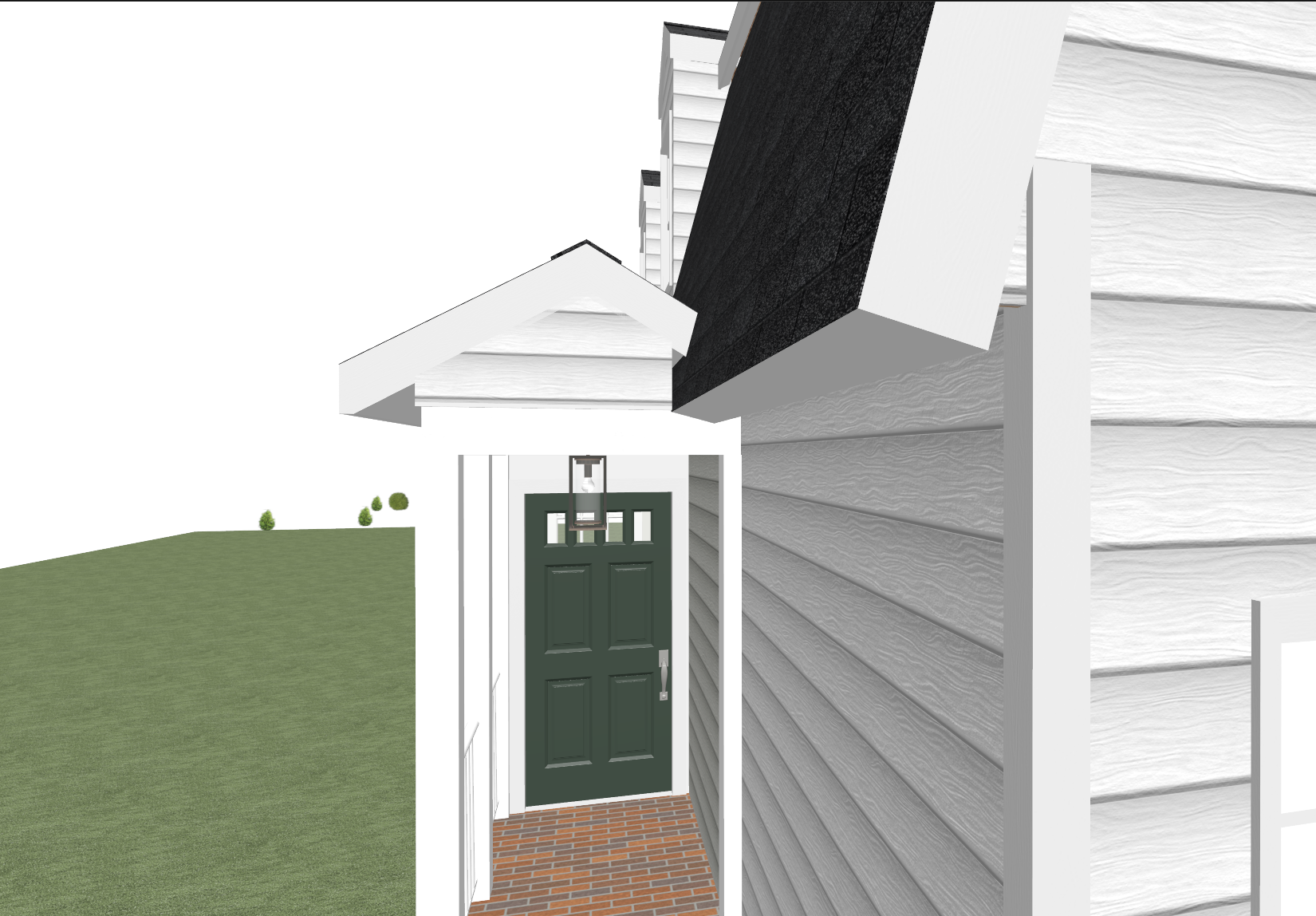

Ringos Posted 4 hours ago Share Posted 4 hours ago I am not sure how to achieve the look of this curved fascia board or beam (vergeboard?) on the small porch roof in the photo. I do not see any settings that would curve that. I wonder if the right way to achieve that in Chief is a 3D solid? Any suggestions would be appreciated. I included an image in chief of the small roof I am trying that on. Link to comment Share on other sites More sharing options...
CharlesVolz Posted 4 hours ago Share Posted 4 hours ago (edited) Since I am a cup of coffee short of starting my CA day: 1. Complete signature. 2. Post plan. 3. Read replies. Or, 1. Search help for Curved Roof Planes. 2. Search help for Boxed Eave [sic]. Later... I thought you were targeting this eaves. Edited 1 hour ago by CharlesVolz Link to comment Share on other sites More sharing options...
Solution JiAngelo Posted 4 hours ago Solution Share Posted 4 hours ago Create a 3D gable end solid intersecting a cylinder solid set to intersection at desired radius. Subtract cylinder from gable end arch. Then position as desired. 1 Link to comment Share on other sites More sharing options...

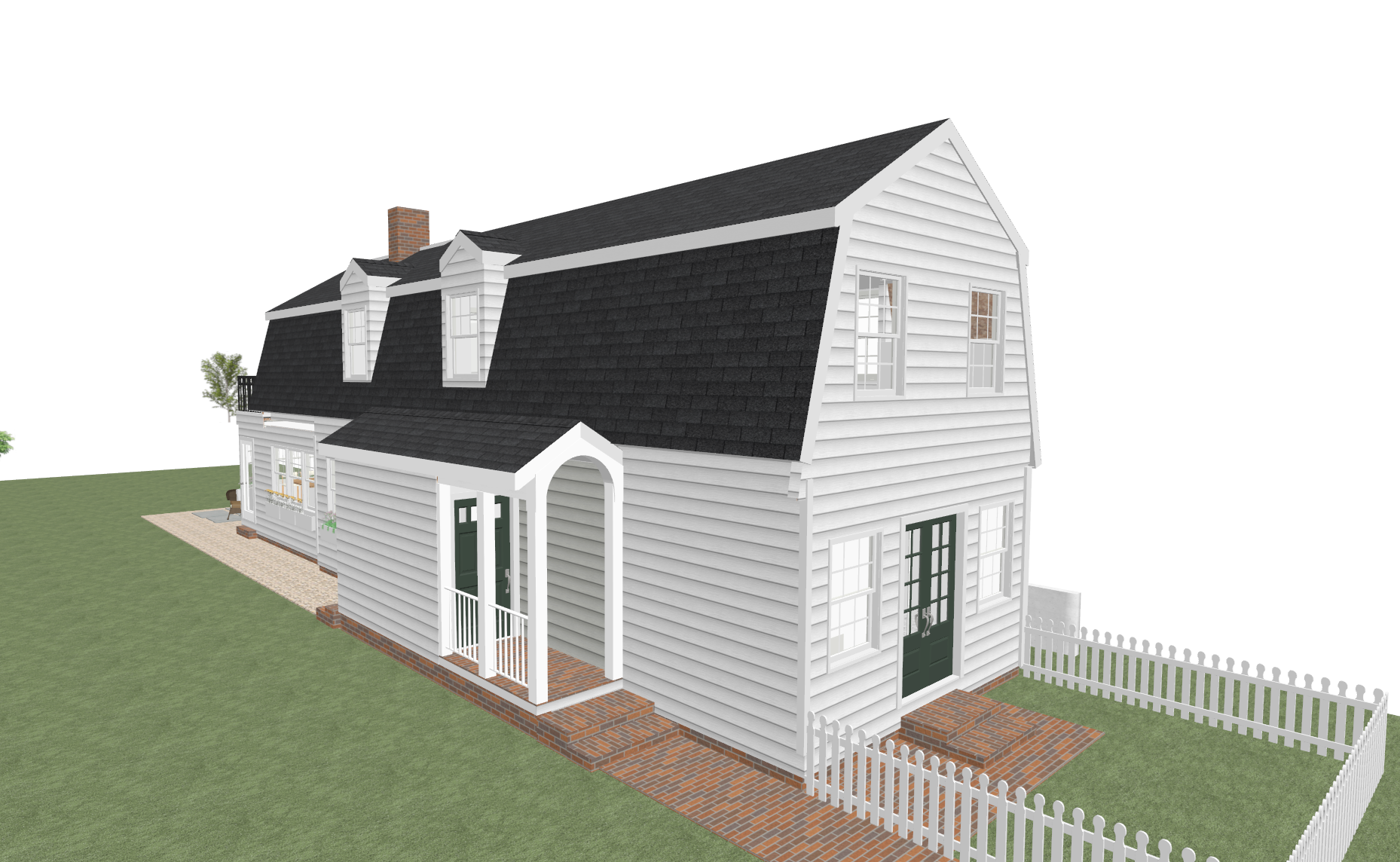

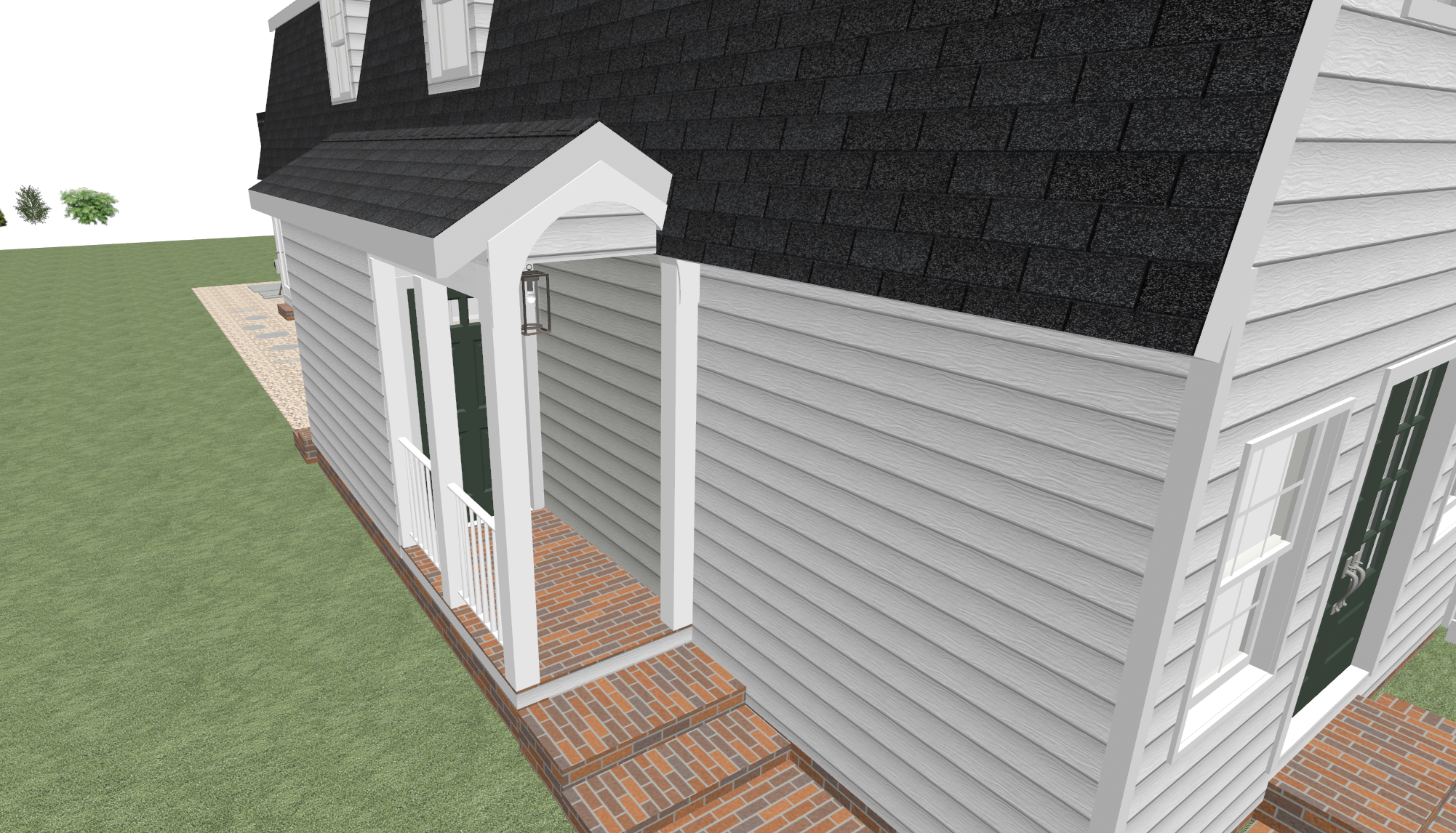

Ringos Posted 3 hours ago Author Share Posted 3 hours ago Thank you JiAngelo. While Charles Volz was drinking coffee you got me much closer. Just need to get rid of the siding underneath. Link to comment Share on other sites More sharing options...
Ringos Posted 3 hours ago Author Share Posted 3 hours ago Got it. Remove flat ceiling over room. Link to comment Share on other sites More sharing options...
