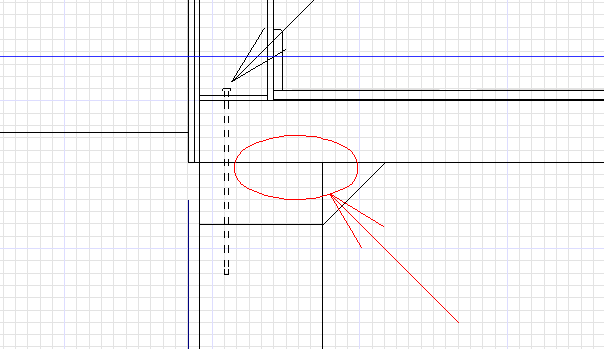

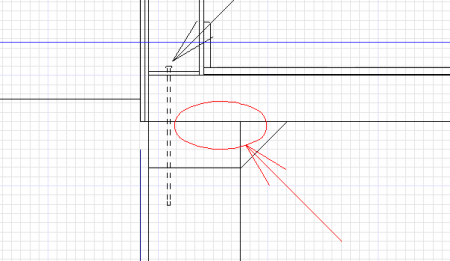

JDennoDesign Posted Monday at 08:53 PM Share Posted Monday at 08:53 PM Is there a way to remove/edit foundation and footing outlines in the cross-section view? I want to show the single poured slab on a 45 down to the top of the footing. I need to remove the lines marked out in the screenshot, but I don't know how. Thanks! Link to comment Share on other sites More sharing options...

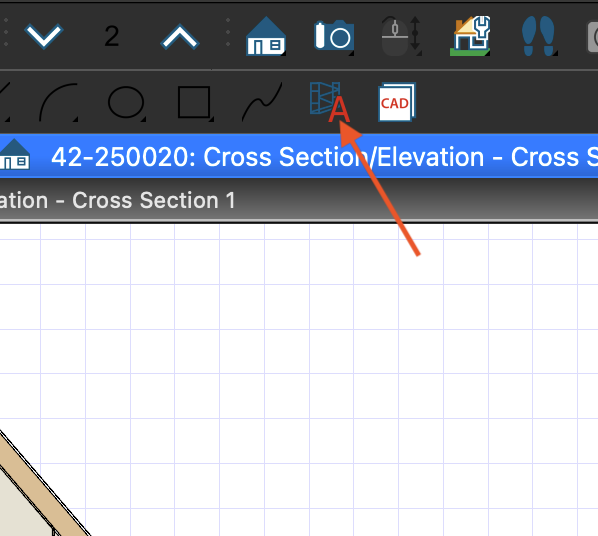

PitMan71 Posted Monday at 09:05 PM Share Posted Monday at 09:05 PM Use the hatch tool in the cross section view to cover it up. It's not perfect, but once you add the hatch, just drag the grips to your liking. Link to comment Share on other sites More sharing options...
Chrisb222 Posted 17 hours ago Share Posted 17 hours ago 16 hours ago, JDennoDesign said: Is there a way to remove/edit foundation and footing outlines in the cross-section view? Will this view be sent to a Layout? If so, I would send it as plot lines and use the Edit Layout Lines tool in the Layout to remove / edit those lines. Alternatively you can create a CAD Detail from View of the cross section, and edit them there, but it won't be live and would have to be recreated after any changes to the model. Link to comment Share on other sites More sharing options...
