walls not merging at corners of different thickness walls

[QuickDraw59]

Still a newbie. Running Premier X17 on an (apparently) robust PC processing and storage.

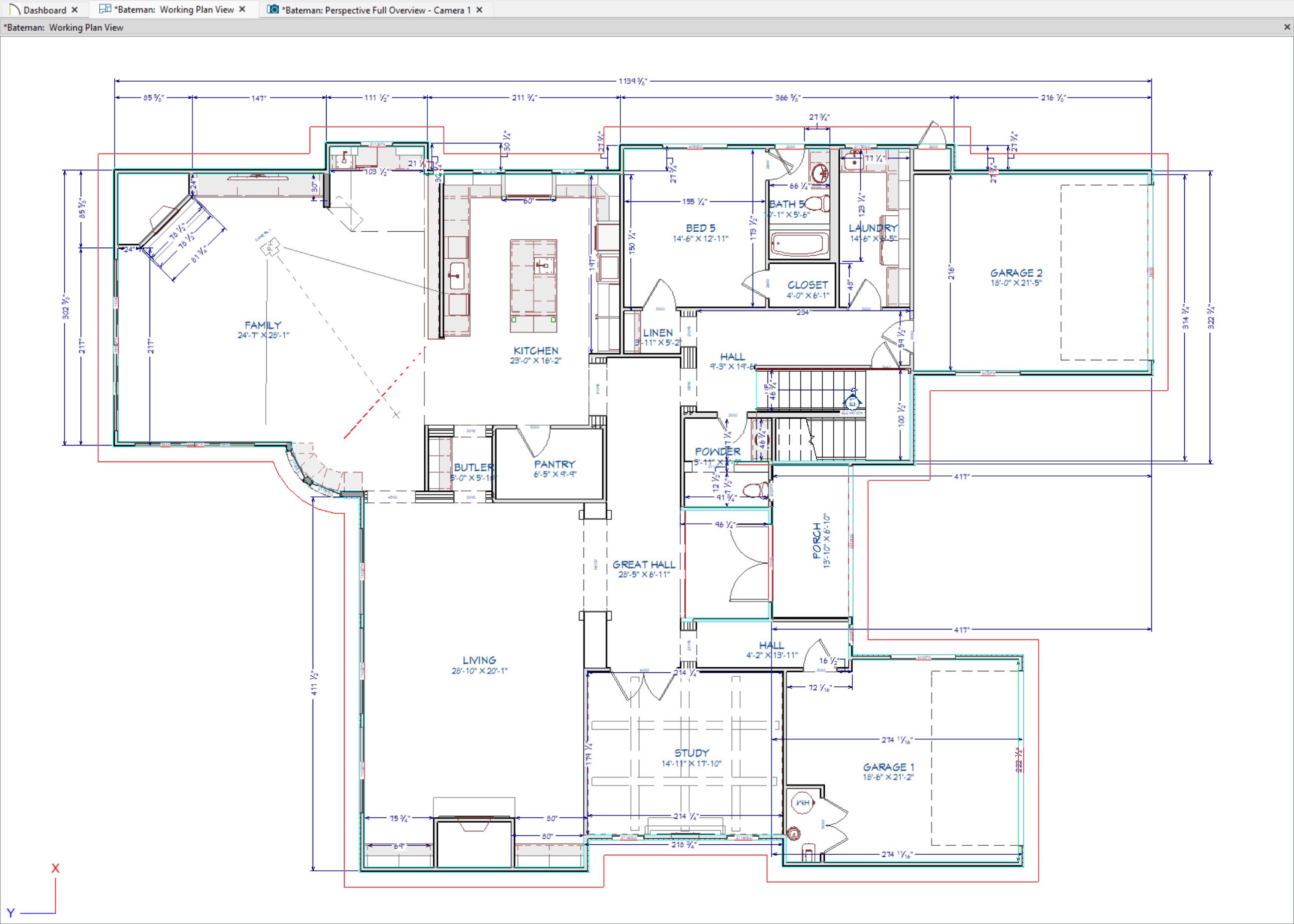

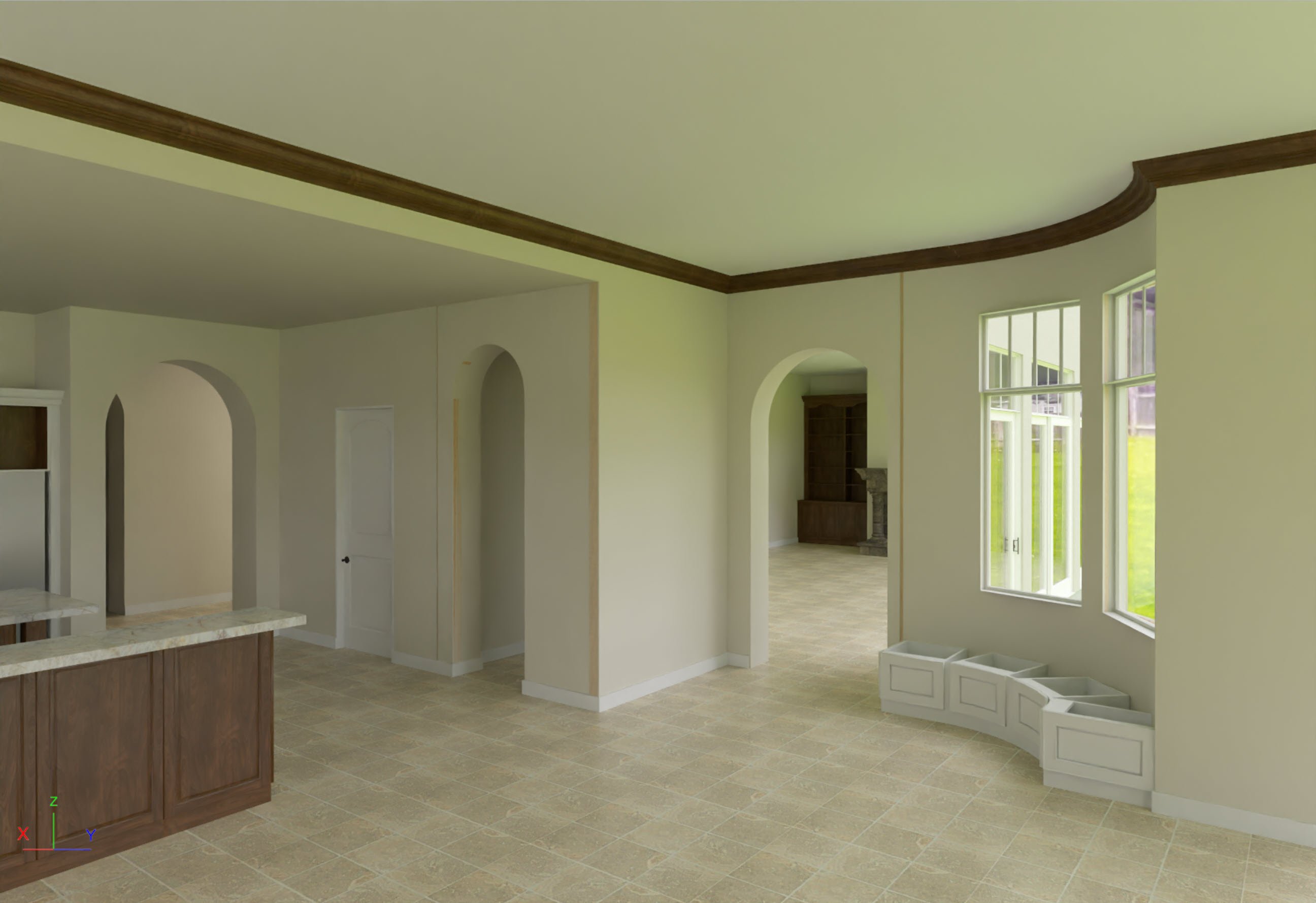

see pix and plan for example

I have standard 4.5" thick walls (1/2"-3.5"-1/2") meeting thicker walls ( 1/2" - multiple 2x4s - 1/2") and I have exposed interior material showing.

Also, for uncased archways, I leave a jamb but change to drywall texture, otherwise the internal material "ghosts" through. But I want the baseboard to wrap around.

Suggestions, oh wise ones?

Edited 14 hours ago by QuickDraw59
adding version/system info

[PitMan71]

A couple things.



When you make a thicker wall I suggest just doing a stud on both sides with an air space gap between to make the thickness.



On the Sheetrock openings remove the jamb in the opening and it should let the base turn the corners. I know this doesn't look "right" in plan view but in 3d it will look nice..... Chief can do most anything you just gotta learn what its nuances are and work around and within them, if that makes sense.



Give my suggestions a go and let me know how it works out. I hope this helps.

[QuickDraw59]

Putting the air gap in the wall made the uncased openings stop ghosting the interior material; they are solid drywall now with the baseboard continuing.

Awesome, thank you!



I didn't cure the junctions of dissimilar-thickness walls, though.  Will have to keep pocking at it.



Thank you!

[CharlesVolz]



1 hour ago, QuickDraw59 said:

and I have exposed interior material showing.



You may have something with a thickness as an interior wall layer, other than just the 1/2" drywall. Otherwise, align your 2 walls properly. Or, of course, you could post the plan...



Also, I see four areas where drywall is missing, but I am not sure which ones you are thinking of.

[QuickDraw59]

ChArch plan file is too big to attach?

47,346 KB

getting error message that attachment exceeds 14MB file size limit?



photo:

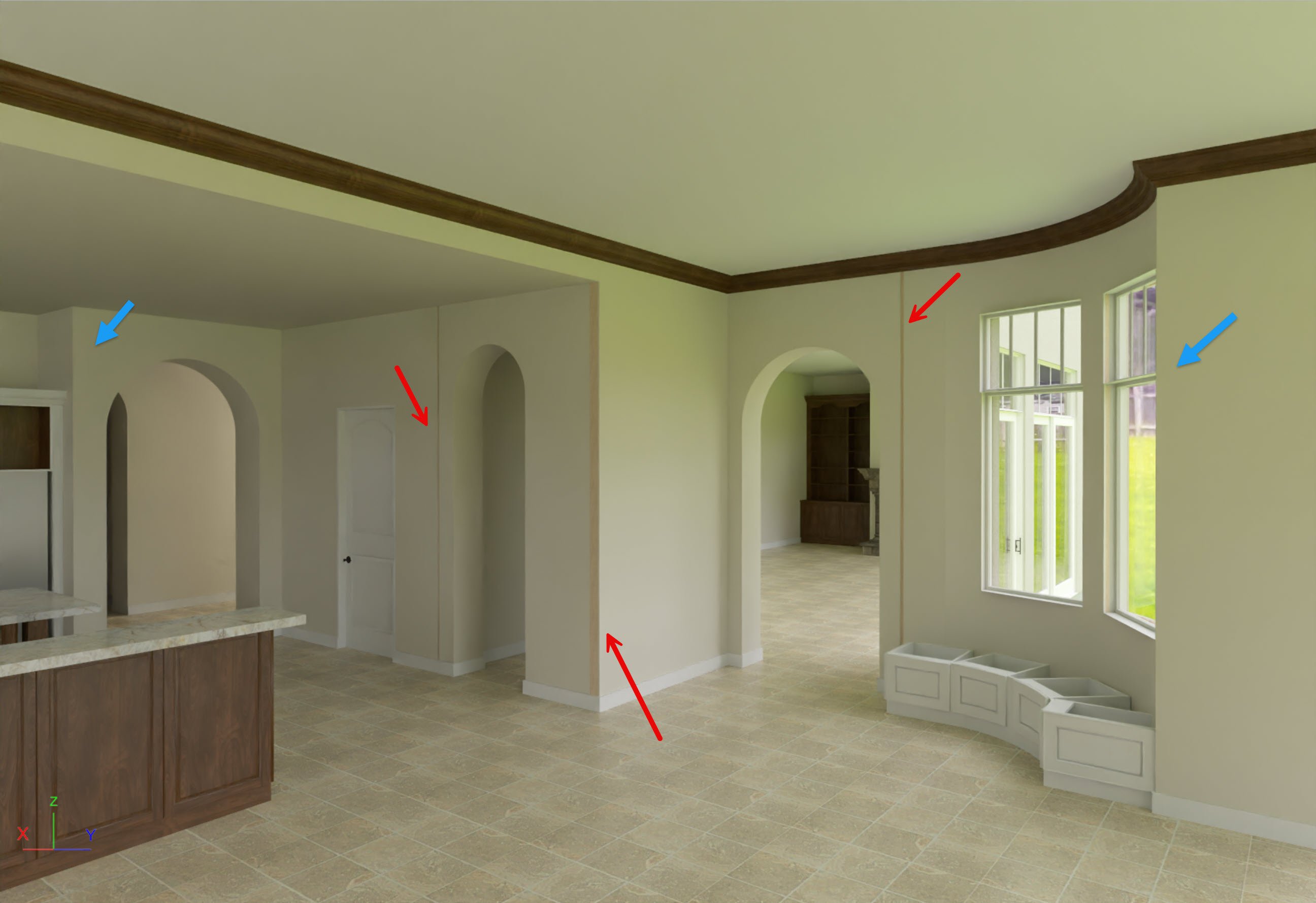

red arrows missing drywall where unequal thick walls connect.  These walls line-up drywall-to-drywall in PLAN

blue arrows drywall OK but corners where two unequal thick walls connect (appears to be same conditions with different outcomes)

[CharlesVolz]

Post a link to the plan. Upload the plan to Google Drive, Dropbox, etc....
