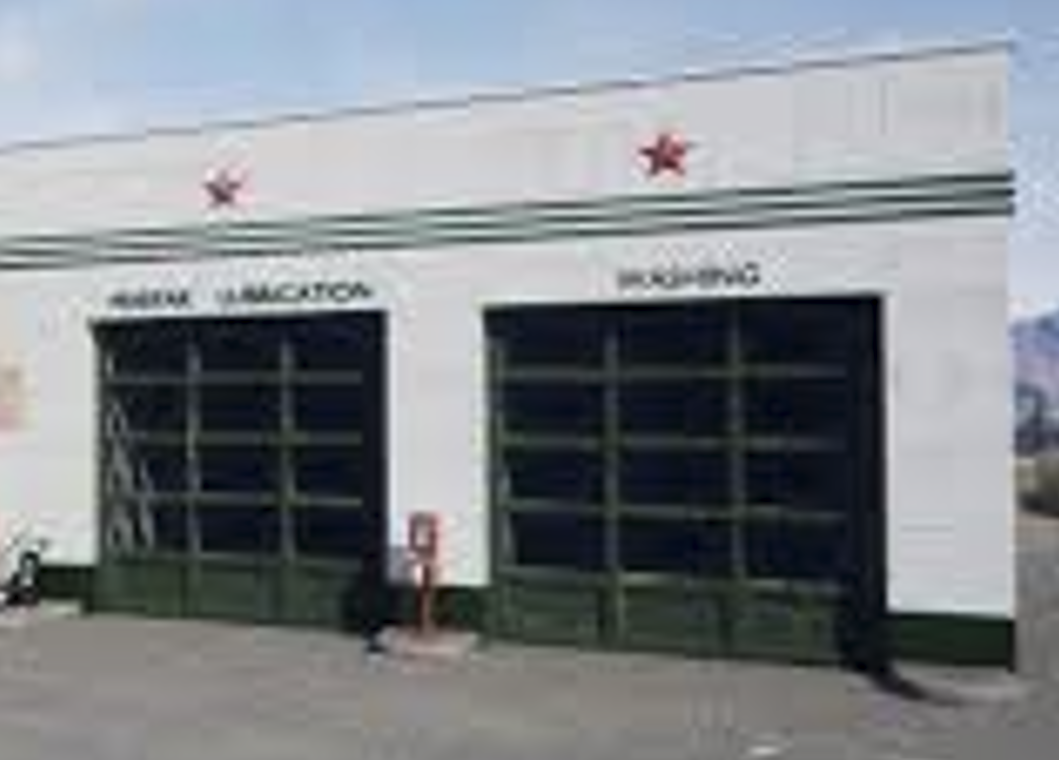

winterdd Posted 5 hours ago Share Posted 5 hours ago Hey guys, looking for a garage door like below. Would this have to be manually built somehow on CA? Owner is adamant on his business having this type of door. What we have in the library is too nice. I have every manufacturer downloaded in my library and don't see anything. Link to comment Share on other sites More sharing options...

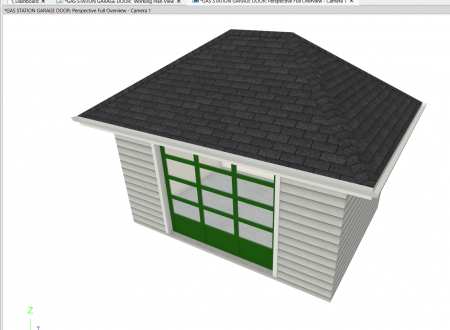

Solution JKEdmo Posted 4 hours ago Solution Share Posted 4 hours ago Rob, I gave this a whirl. First time building a custom garage door for me. Others might have an easier method. I built custom door panels out of 3D solids in elevation. Basically 2 panel types -- 1 for lower panel and 1 for the 3 upper panels with glass. I then created separate Millwork symbols for each of the panel types. I then assembled (stacked) the millwork panel symbols in elevation to create my new door assembly. I then created a new door symbol out of these 4 millwork panels. You could probably skip creating separate millwork symbols for each panel types, but the thinking was if they were their own symbol they could more easily be rearranged if the door panel layout changed. This took maybe 10 minutes. Jim GAS STATION GARAGE DOOR.zip 2 Link to comment Share on other sites More sharing options...
winterdd Posted 3 hours ago Author Share Posted 3 hours ago Dang that looks great! And thanks I will take a look at your plan file. Link to comment Share on other sites More sharing options...
