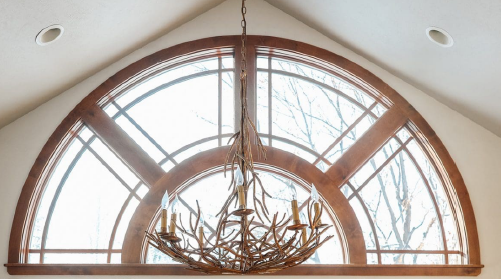

welchdrafting Posted August 27 Share Posted August 27 Looking for help or information into recreating the circurlar windows with symmetrical arched muntins. Using X17. Thanks in advance, Travis Link to comment Share on other sites More sharing options...

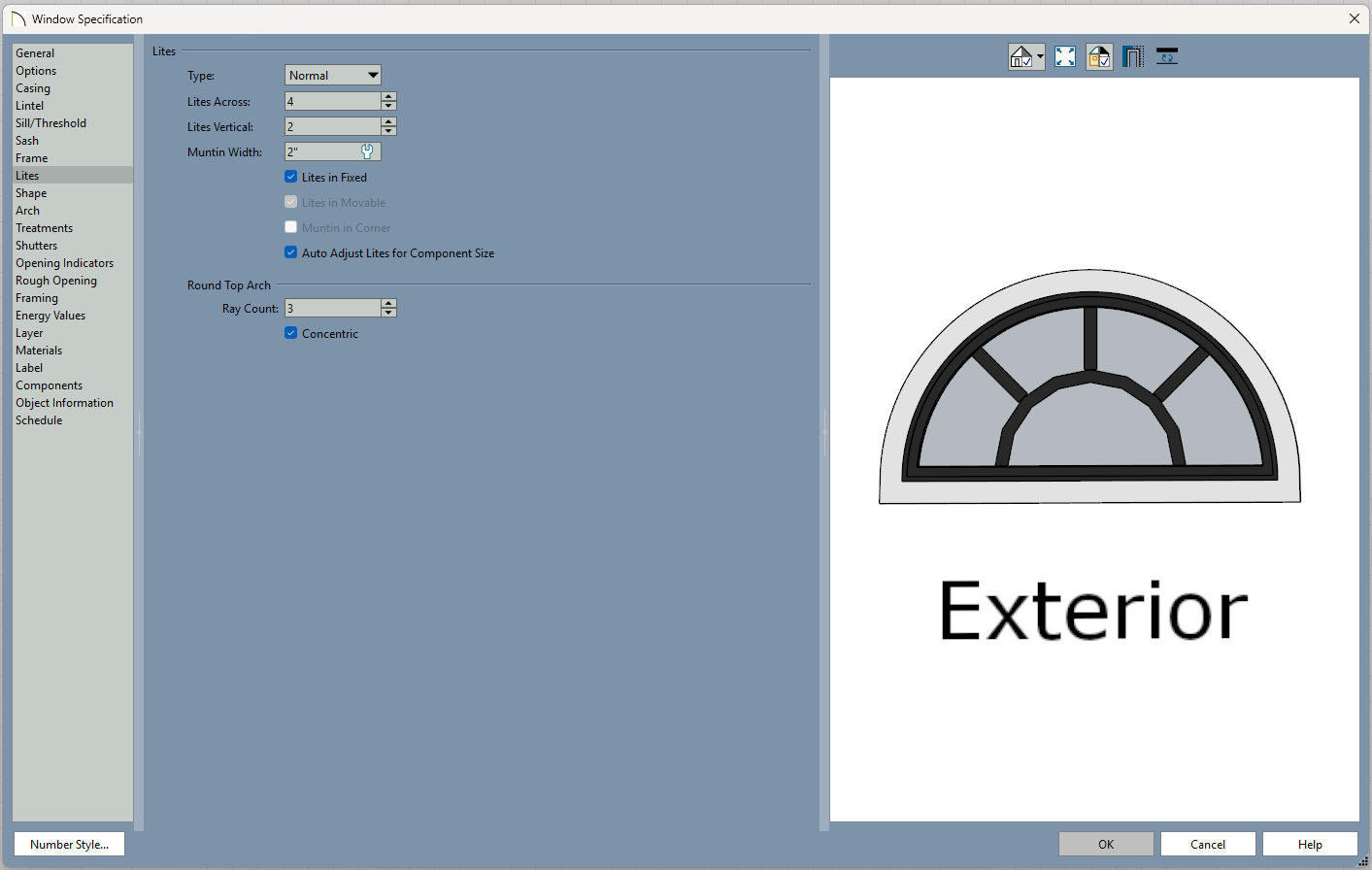

robdyck Posted August 27 Share Posted August 27 I'd suggest using the lites for the mullions and drawing the grilles in manually using the molding tool (in section or elevation view of course). I would then make an architectural block of those moldings. Don't try to load them as custom muntins...probably won't work well and will end up being a waste of time. Link to comment Share on other sites More sharing options...
welchdrafting Posted August 27 Author Share Posted August 27 Thanks Robert. I am having a difficult time getting the arch on the upper and lower portion of the windows. I like the idea of drawing the lites in with the molding tool. Link to comment Share on other sites More sharing options...
