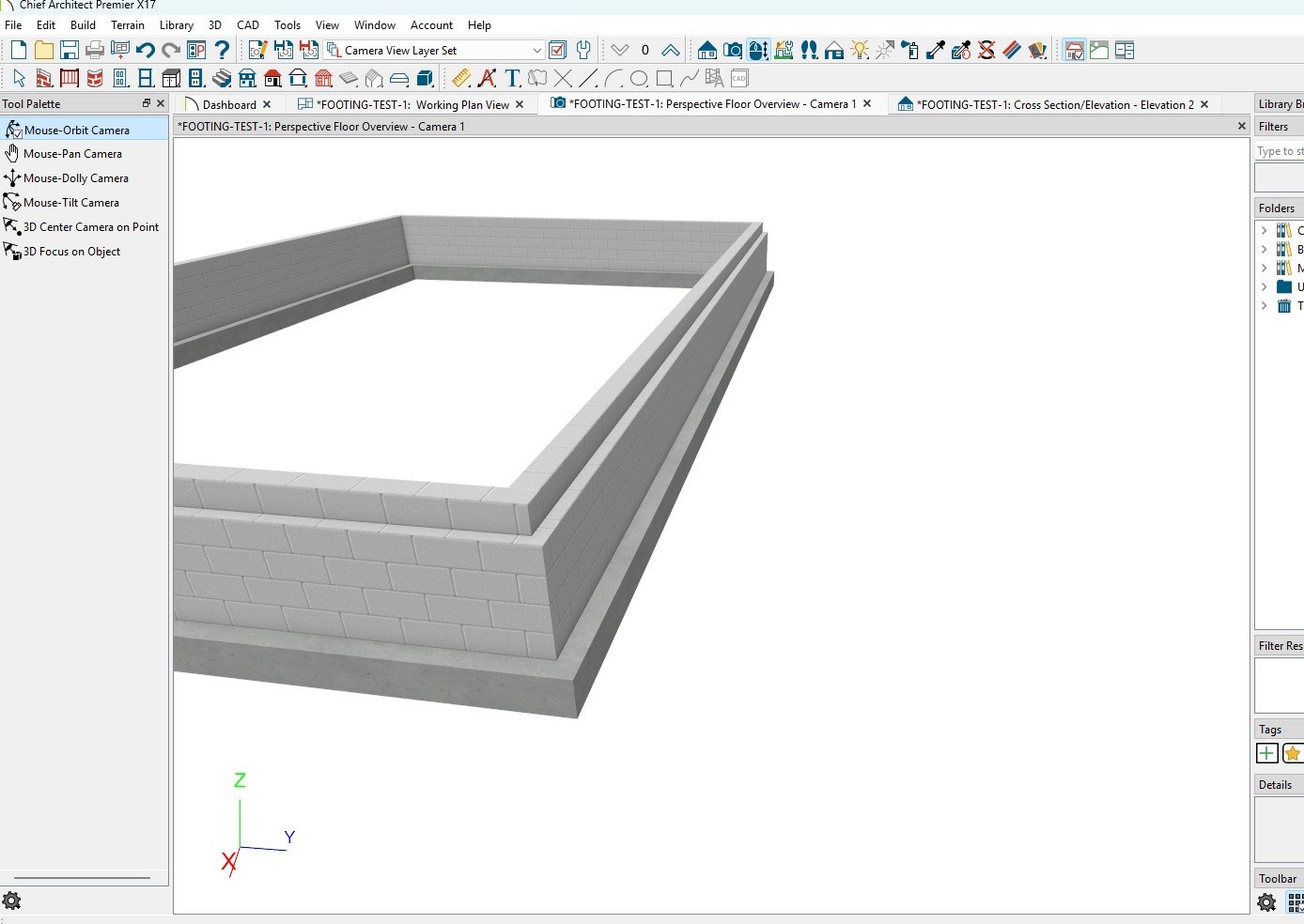

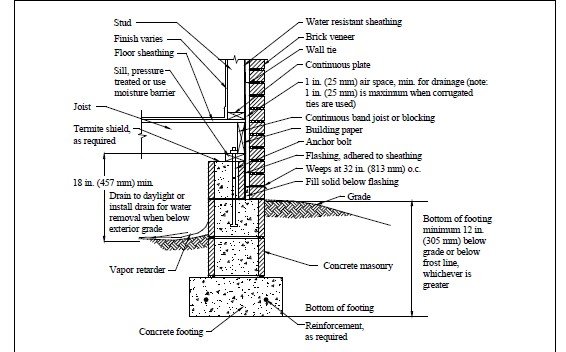

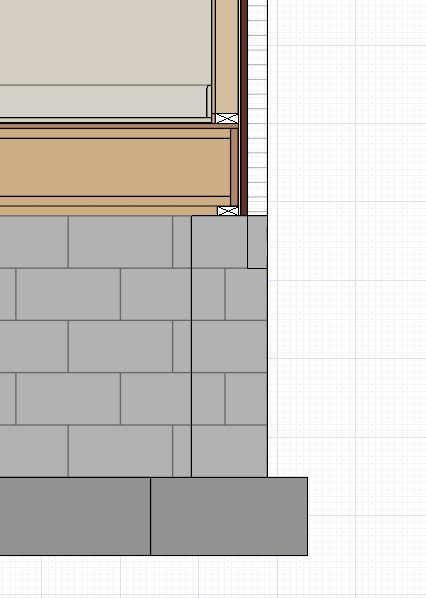

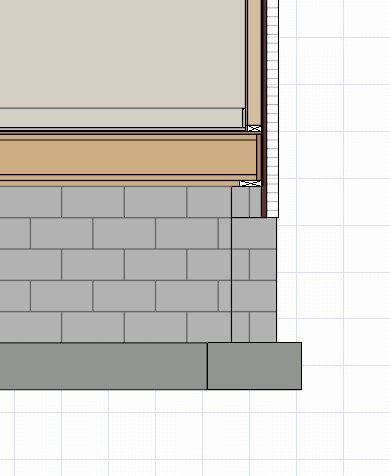

EdwinB Posted August 19 Share Posted August 19 Hello. Attempting to create a typical foundation 12" CMU stem wall with 8" top CMU bond beam. The house wall is a brick veneer with 8" extension. I'm unable to replicate the desire detail Any helpful advise? Thanks Link to comment Share on other sites More sharing options...

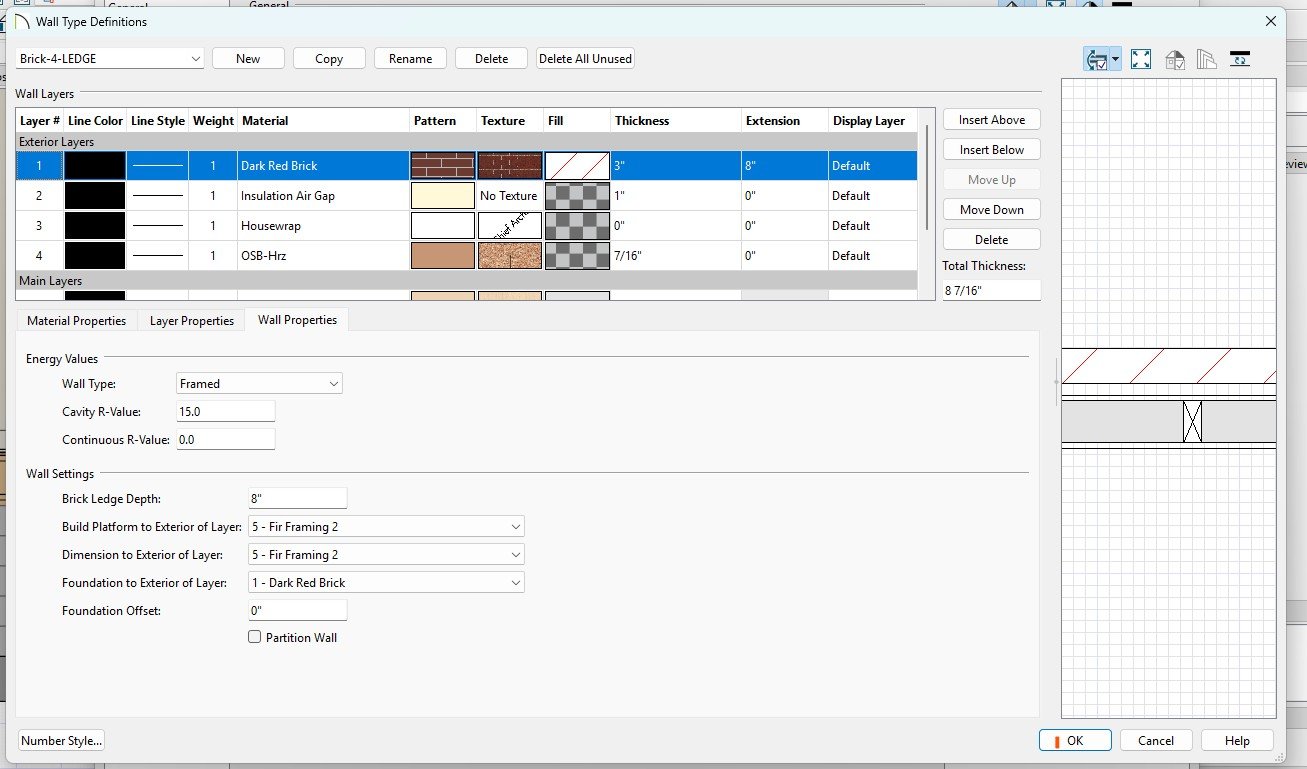

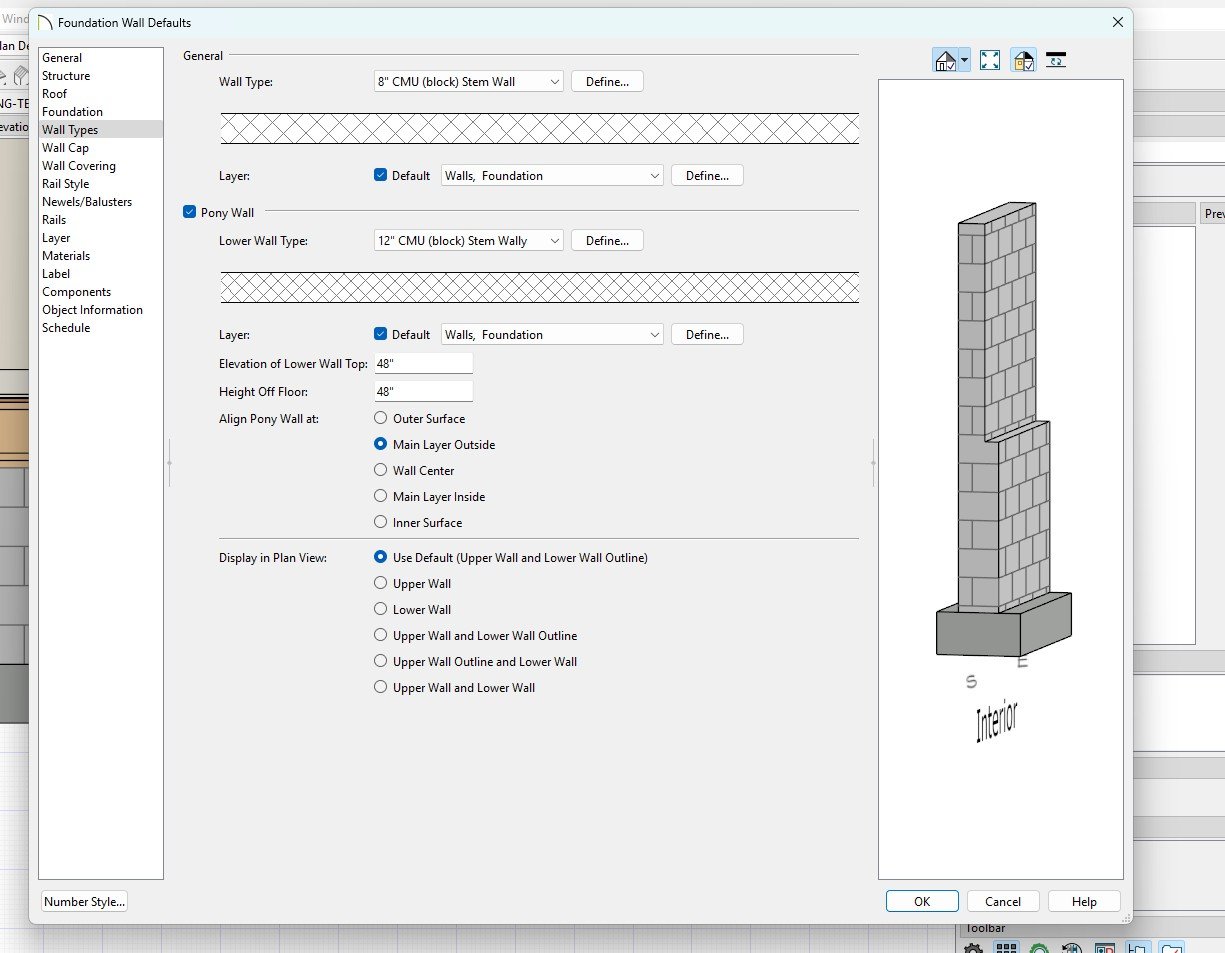

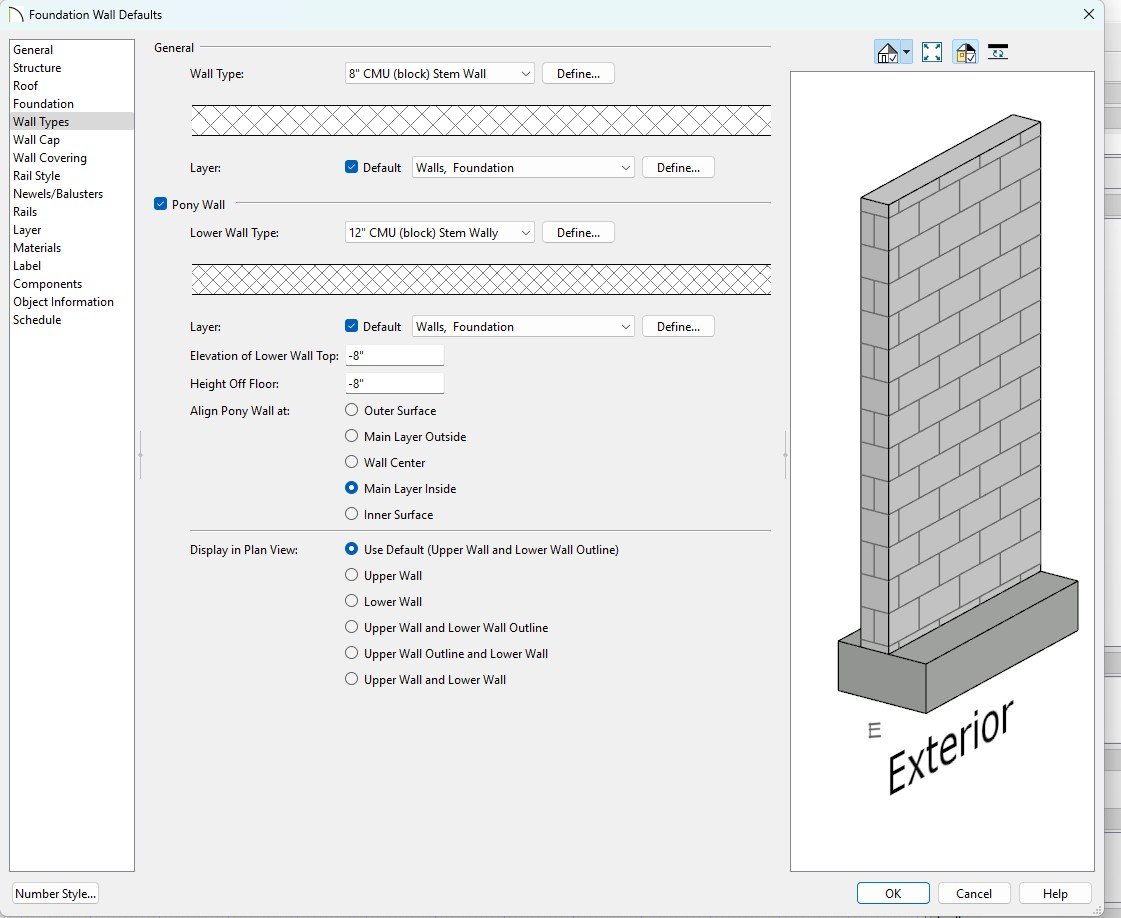

MPDesign Posted August 19 Share Posted August 19 In your foundation wall defaults image, middle of picture. "Elevation of lower wall top" try setting this to -8" - then check the alignment with main layer inside. Also you may have to extend (in your wall dbx) your brick ledge depth to floor thickness + 8" Link to comment Share on other sites More sharing options...

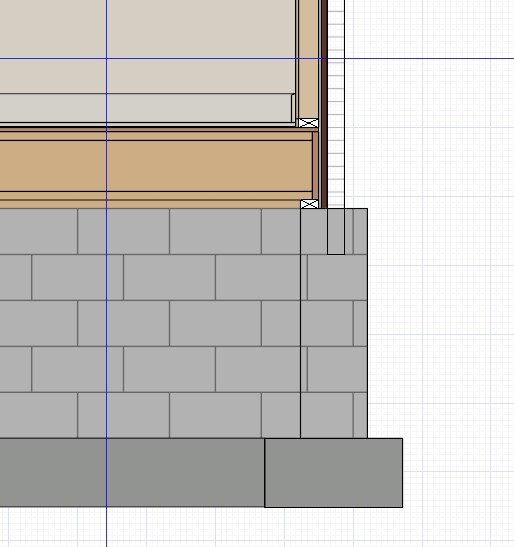

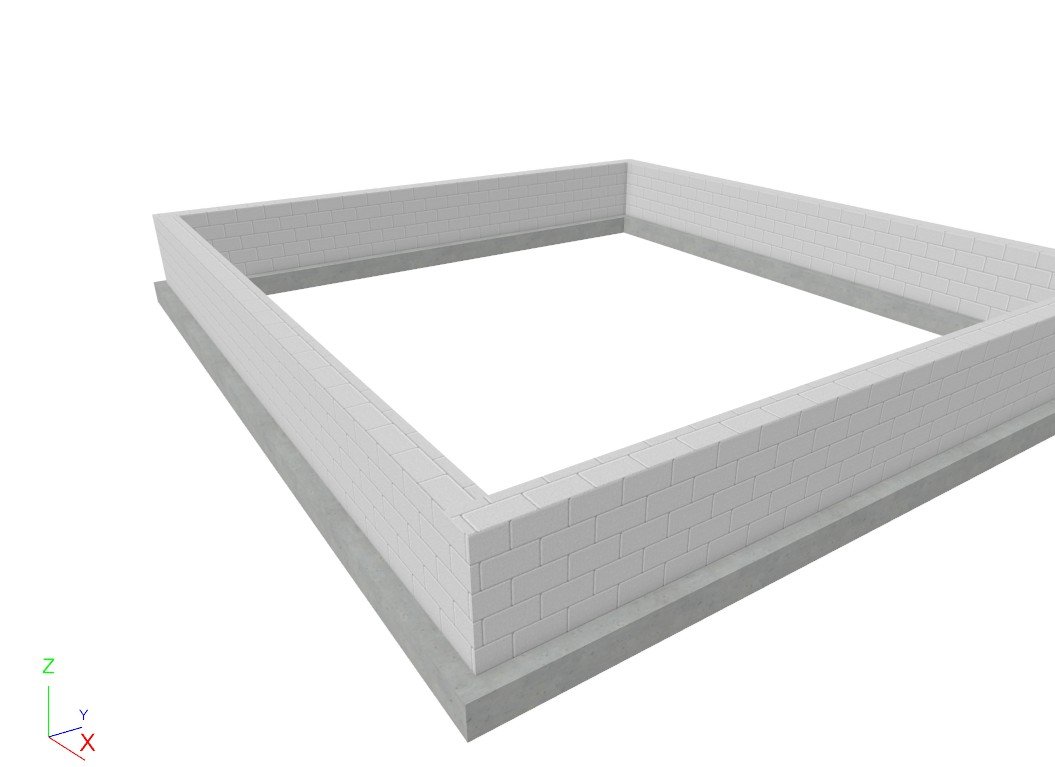

EdwinB Posted August 19 Author Share Posted August 19 Thanks for the quick response. Still unable to achieve the original section detail results. Stumped as to why I cant make it work. Link to comment Share on other sites More sharing options...
EdwinB Posted August 19 Author Share Posted August 19 Thanks for the input Michael. I made it work. Just had to redraw the wall again for the changes to take. Out.............. Link to comment Share on other sites More sharing options...
MPDesign Posted August 19 Share Posted August 19 Excellent, glad it worked! Link to comment Share on other sites More sharing options...
