Complete break on a section camera callout?

[Gtomer]

Hi,

I understand how to "jog" a section view line in plan view, however how can I completely break it so I can move the lines out of the way of the floor plan as it is getting really crowded with lines.

I have tried the double click complete break trick but it just opens the view. Also no matter how I try I don't see a complete break tool or a disconnect edge tool

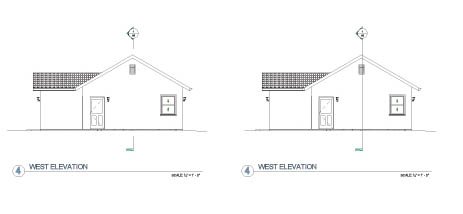

Like the attached example.



Thanks!





[robdyck]

Unfortunately, we can't hide a portion of the camera's cross section line. To represent a 'break' in the camera's section line in plan view (or other views), I can think of 2 options:

1. Use a CAD Mask. This could be as simple as adding a white line to cover the section cut lines to control the visible extent of the camera's lines. Alignment of these lines is fairly simple if you are drawing on the grid with snapping enabled. It could also be a polyine with partially transparent fill.This approach is similar to adding a CAD box or polyline to represent a callout tail.
2. Use a callout (or a pair of callouts). This approach is essentially the same as above...just different. Both approaches are manual and require 'maintenance' if the camera needs to be moved.
