How to fix two problems: attic wall with part over roof, and wall connection for post/beam porch railing

[GeneDavis]

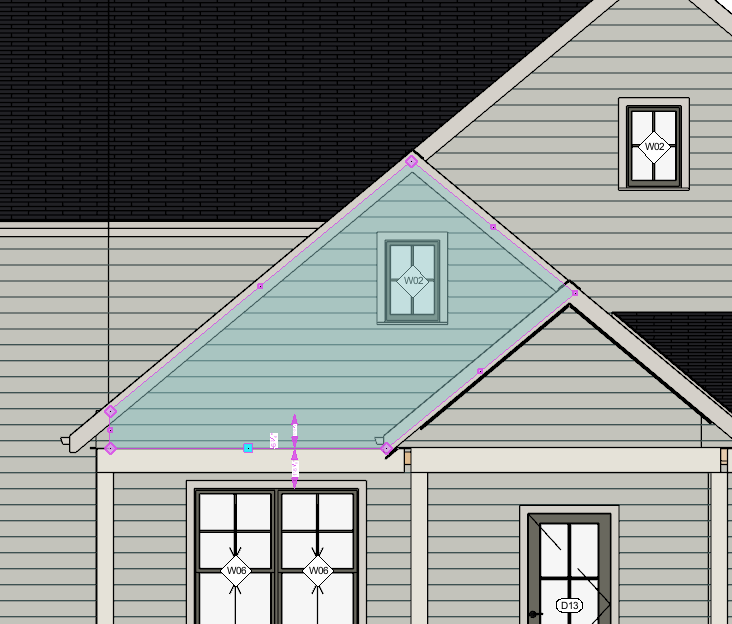

Here is a camera view with both issues highlighted.  The gable wall with fake window centered under peak is killing me.  I am unable to generate the wall so it shows properly in 3D.  Its right half is "roof cuts wall at bottom" and needs to have that spec so it doesn't protrude into the vault space below.



The other is the beam atop the railing (post and beam).  The corner join won't render correctly.  There are OK corner joins all around the porches.  Note the wall spec with the offset posts and beam.  Both are offset horizontally so I can get the slab edge 3" past the wall line, so columns do not bear right at the edge.  This corner has one of the walls NOT offset, and it needs to be this way.





File attached.

ICF barndo.zip

[Chrisb222]

On 8/15/2026 at 2:22 PM, GeneDavis said:

The gable wall with fake window centered under peak is killing me.



Gene, I often manually edit attic walls if they aren't behaving how I want. In your case I was able to edit the attic wall into one wall with the correct shape to accept the window (I also changed the wall type to Siding-4 since I assume you won't want ICF attic walls). I went at your file with abandon so it's a bit of a mess but I attached it if you want to see what I did:





CB Bob Landgraf Barndo.plan.zip



On 8/15/2026 at 2:22 PM, GeneDavis said:

This corner has one of the walls NOT offset, and it needs to be this way.



In my opinion this need will probably force you to manually model either the post or the beam (or both) in that spot. Getting that to auto generate wouldn't be worth my time, if this were my project.
